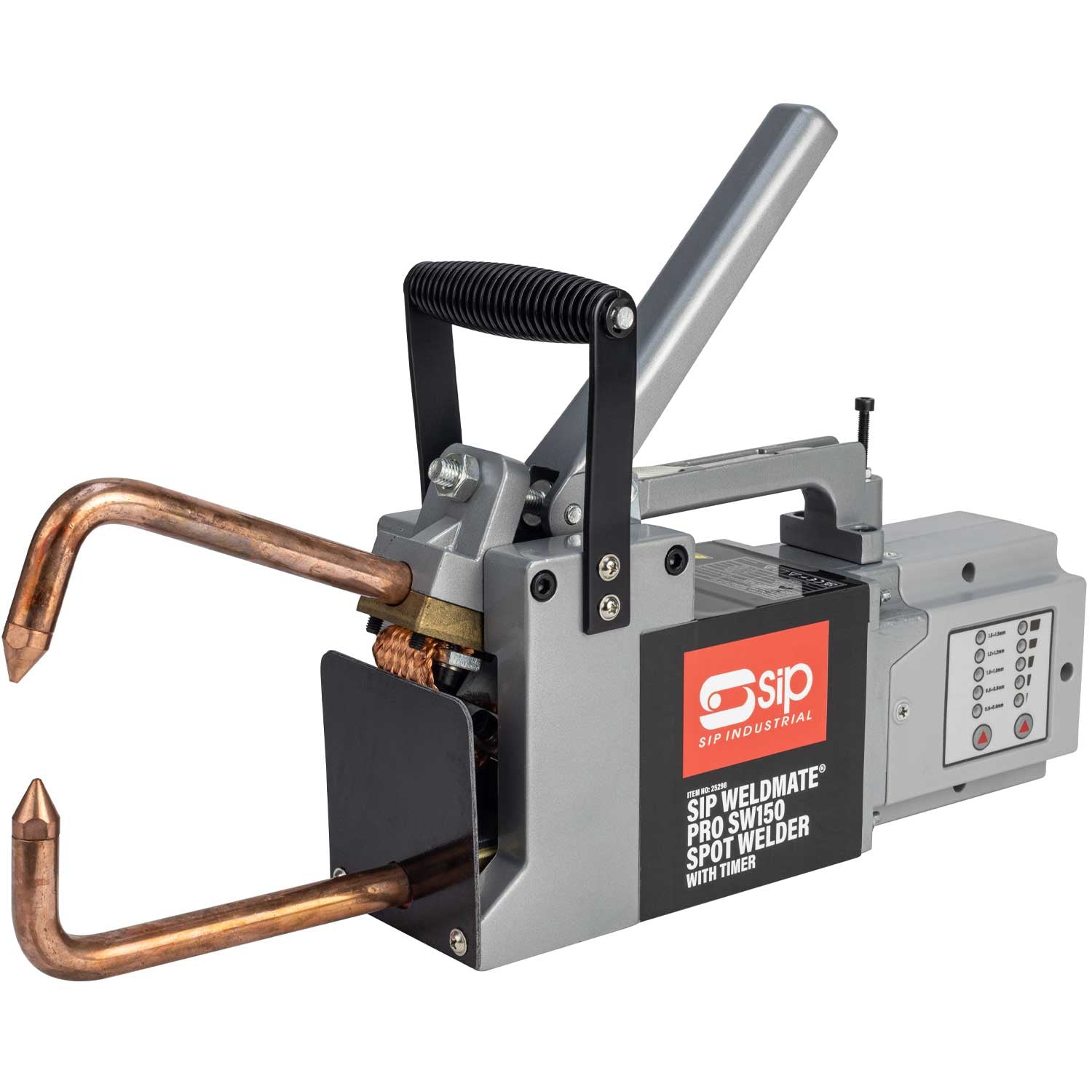

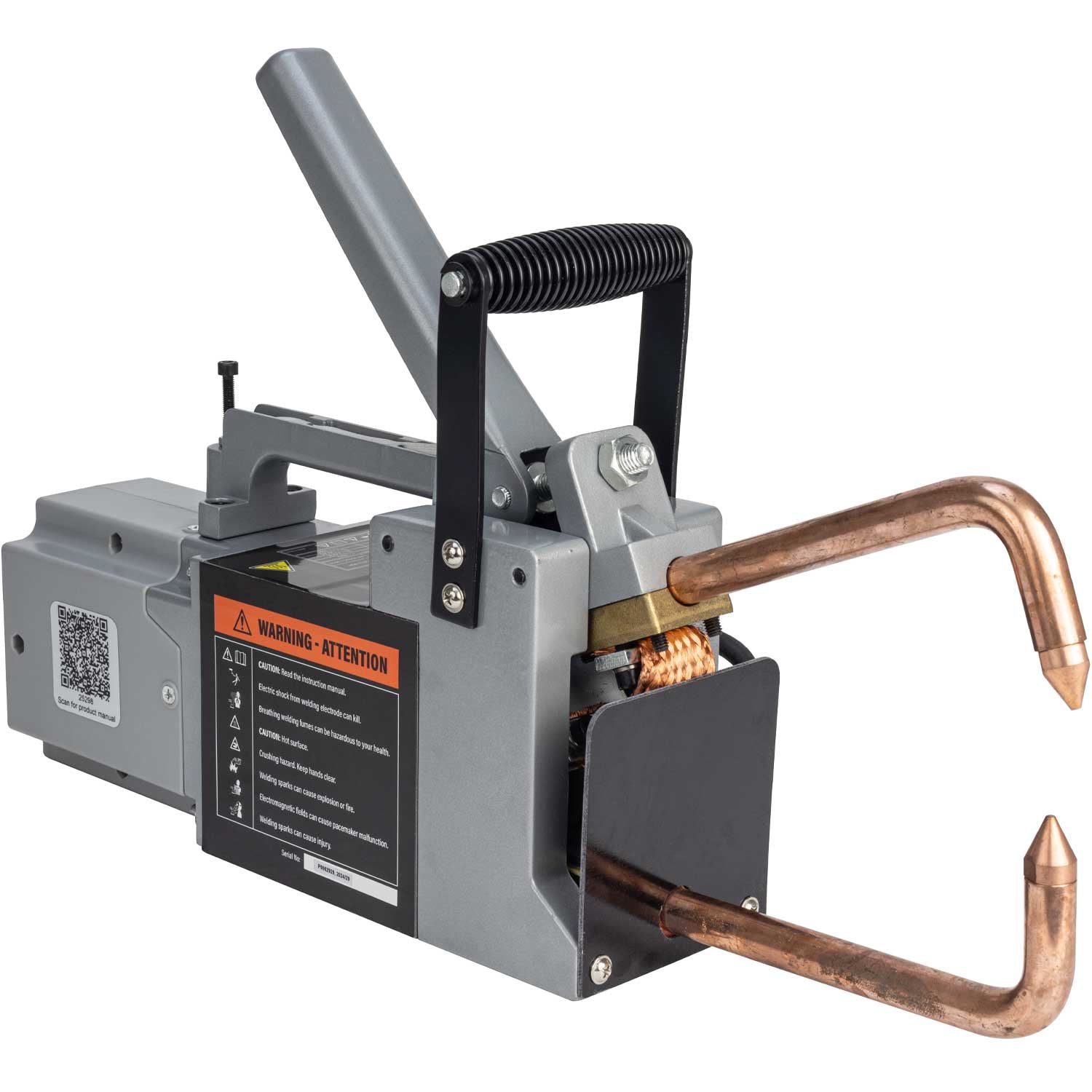

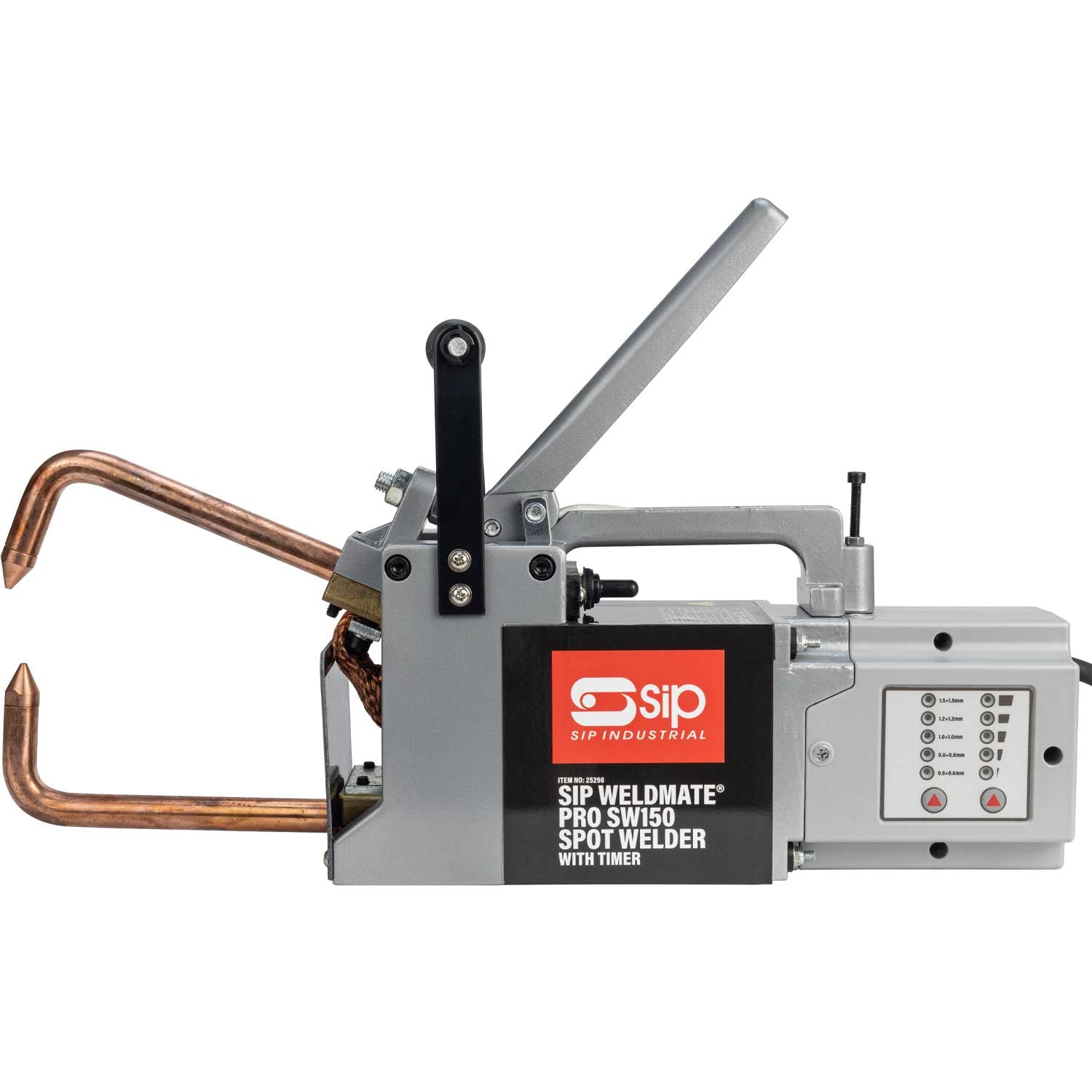

SIP 25298 WELDMATE® PRO SW150 Spot Welder with Timer

The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm + 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.

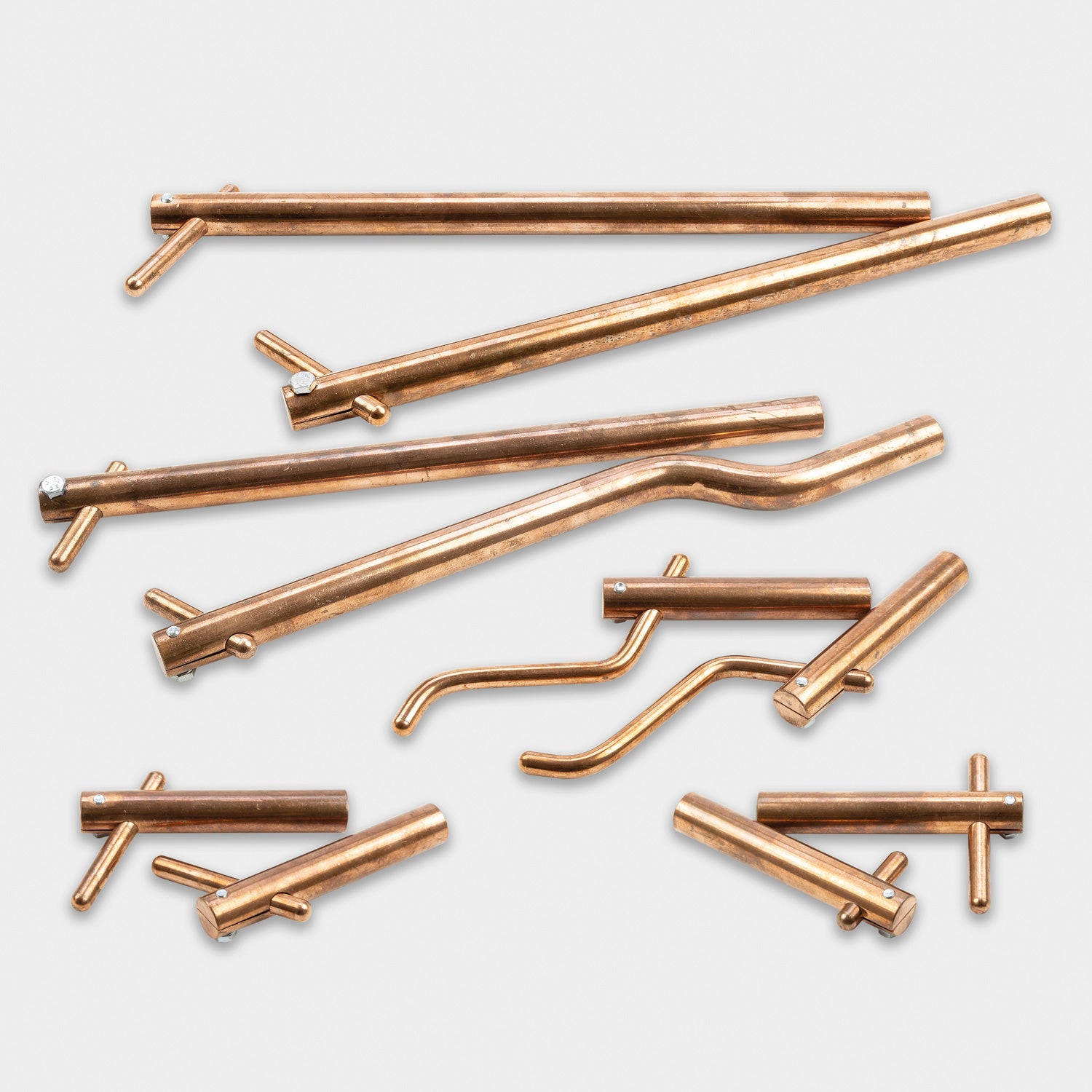

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

ITEM NO. 25298
Input Supply: 230v (13A)
Max. Welding Thickness: 1.5mm + 1.5mm
Spot Duration: 120-900ms
Welds Per Minute: 3 welds per minute
Max. Electrode Force: 460N

Maximum welding thickness of 1.5mm + 1.5mm

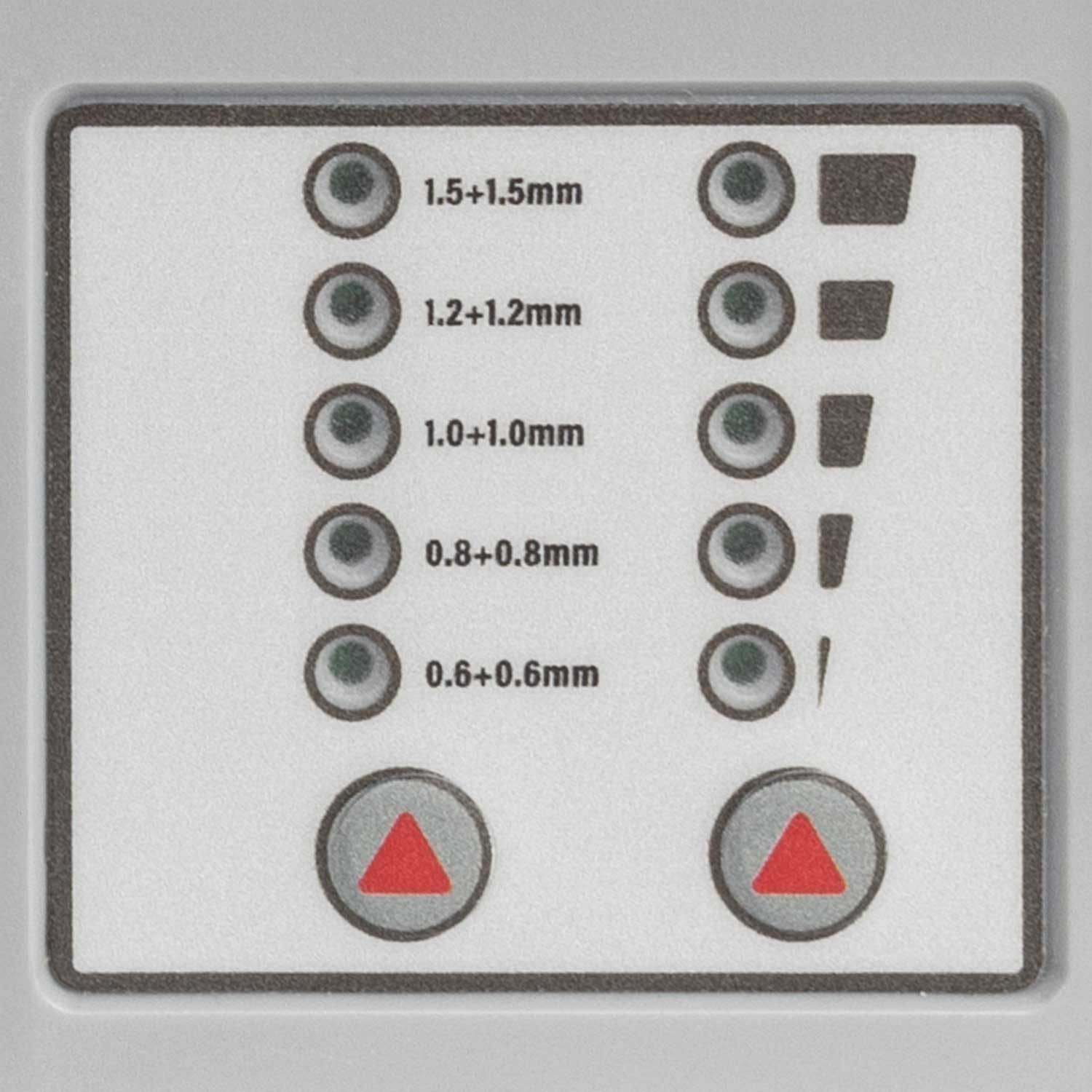

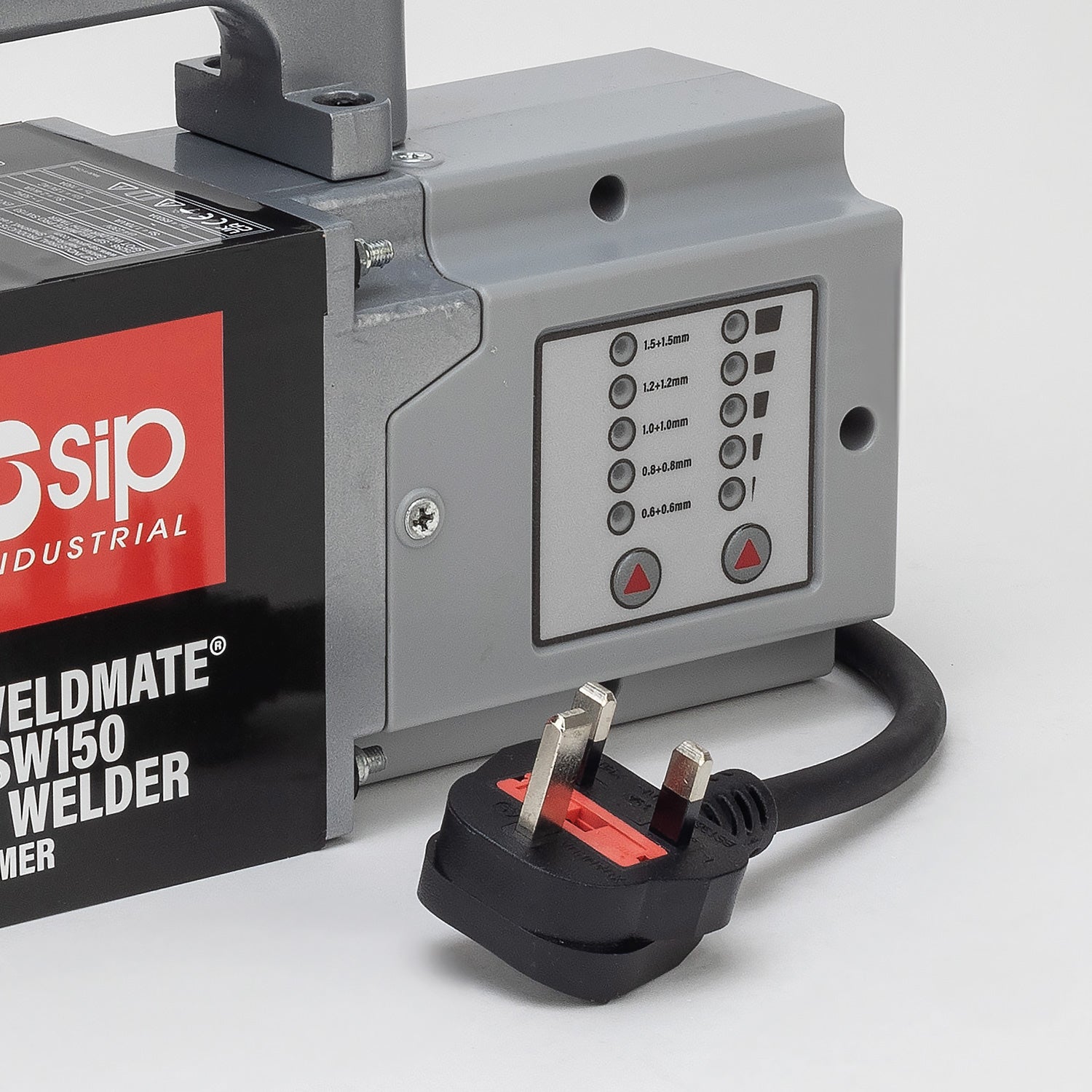

Timer function of 120~900ms for consistent welds

Fitted with heavy-duty weld switch for reliable operation

Operates from a 13A supply added for ease-of-use

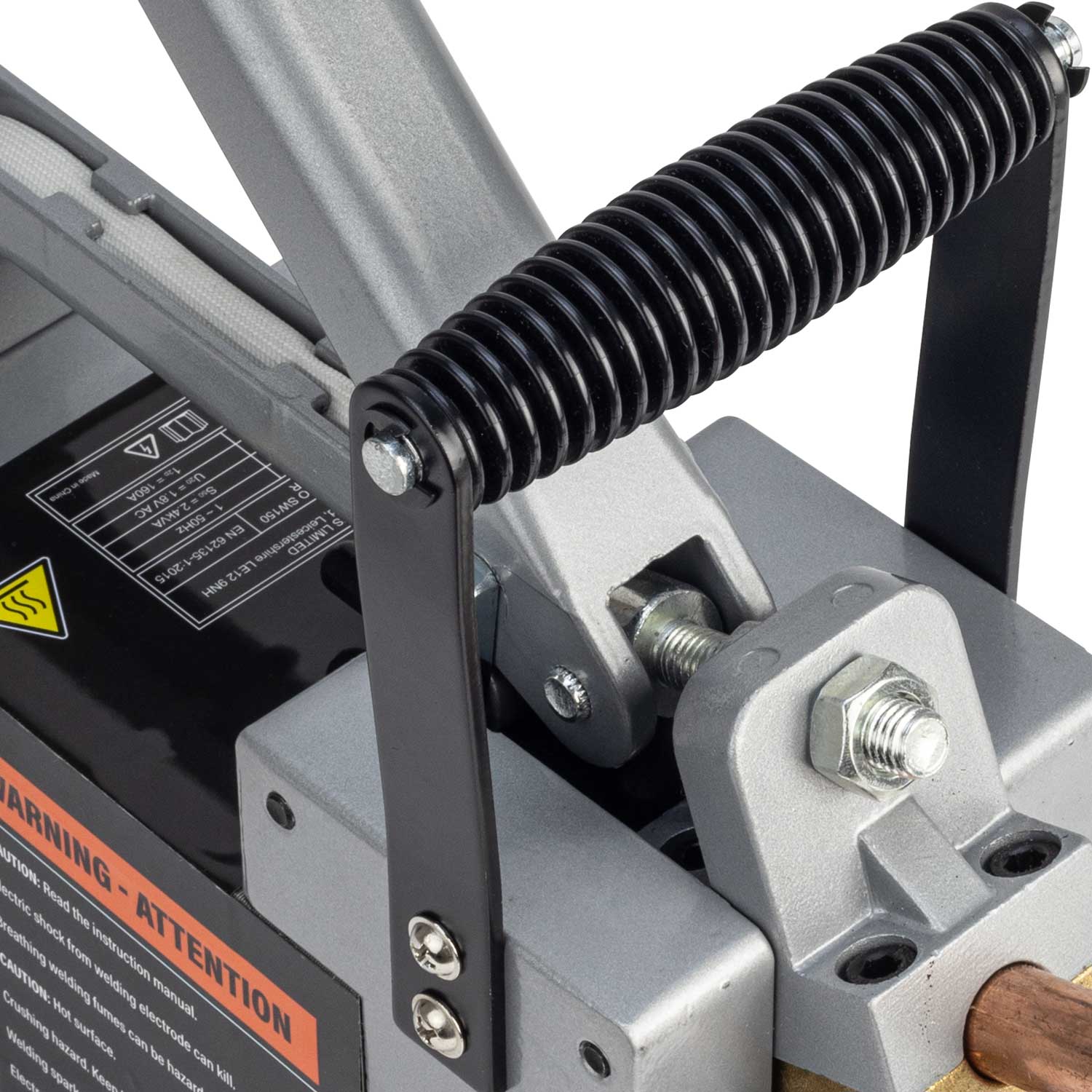

Heavy-duty carry handle for work area movement

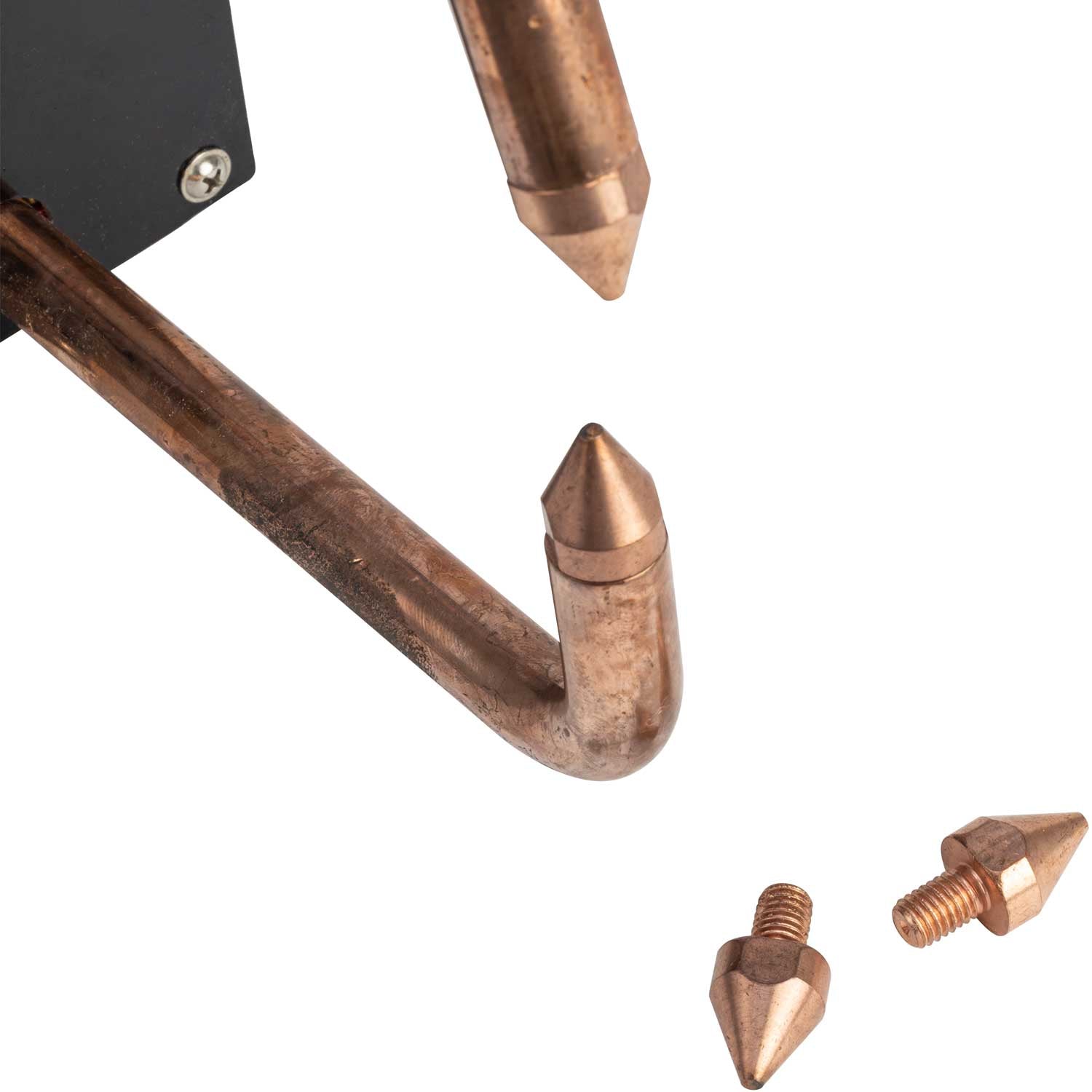

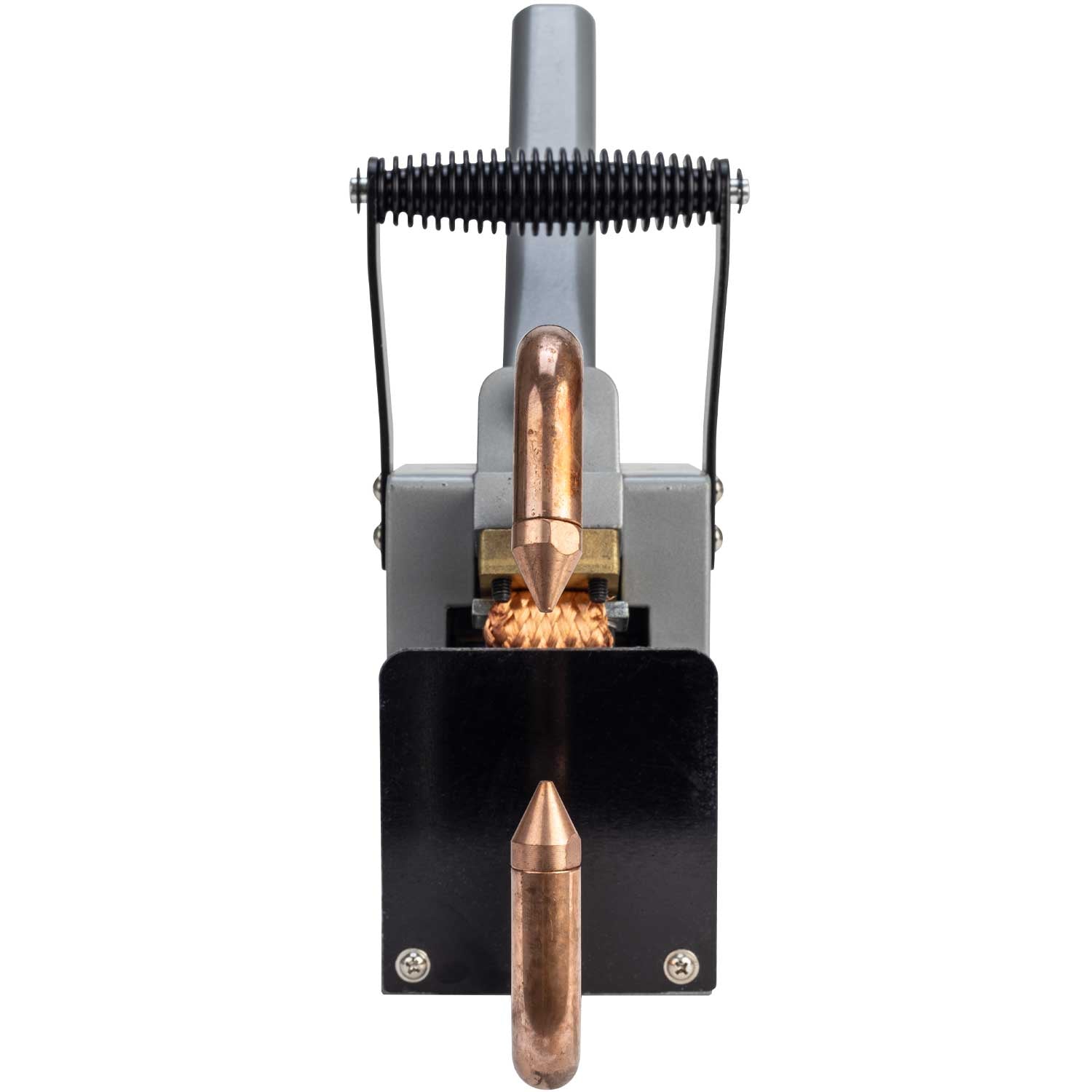

Supplied with replacement 16mm straight electrodes

SIP 25298 WELDMATE® PRO SW150 Spot Welder with Timer

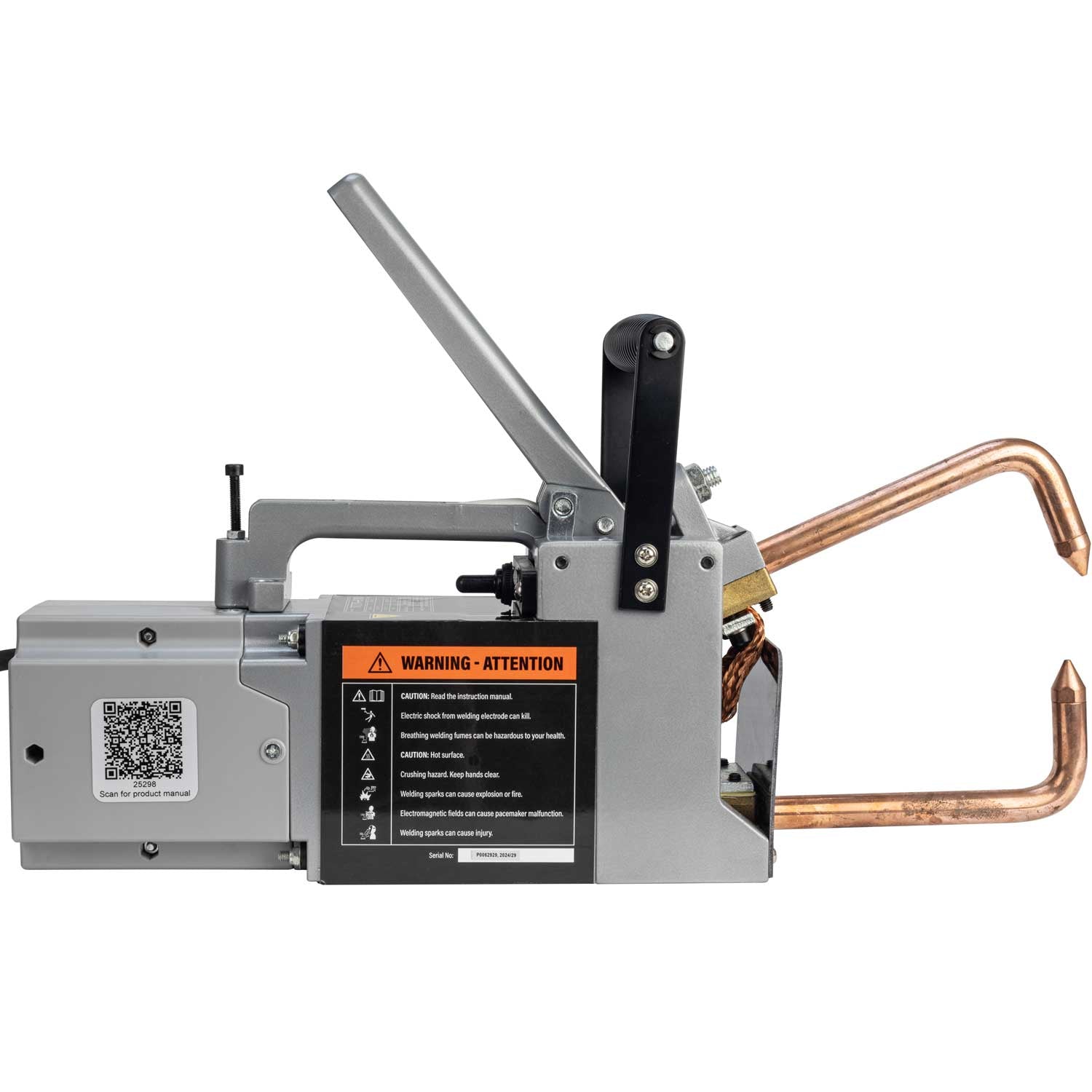

1x SIP WELDMATE® PRO SW150 Spot Welder with Timer, 2x 16mm straight electrodes, 1x steel carry handle with 4 fixing screws. User manual available via QR code sticker applied to product.
