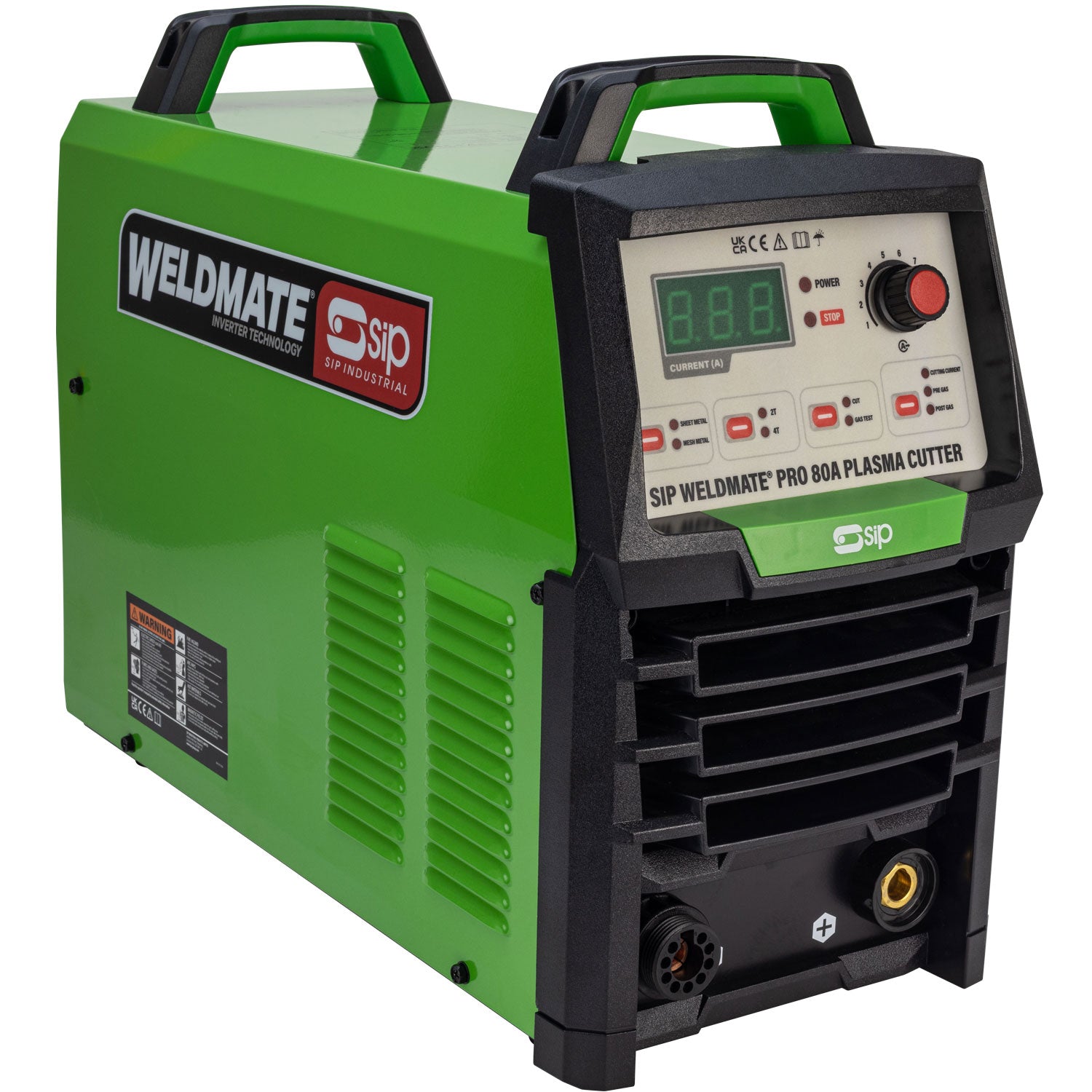

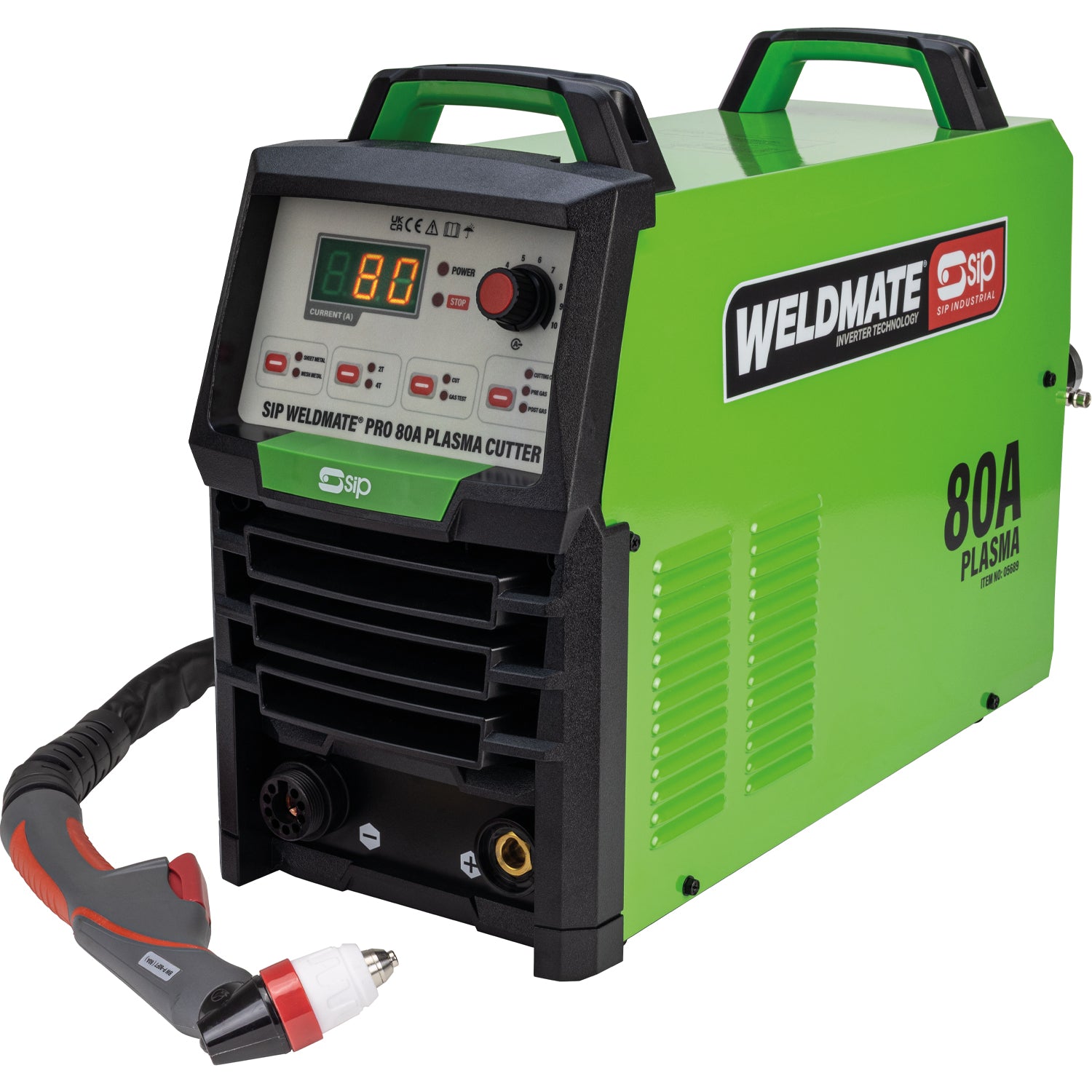

SIP WELDMATE® PRO 80A Inverter Plasma Cutter

The SIP WELDMATE® PRO 80A Inverter Plasma Cutter is a powerful and versatile inverter plasma cutter designed for use in professional fabrication, engineering workshops and agricultural settings.

Easy to operate and safer than cutting with a naked flame, this powerful and compact inverter plasma cutter has a cutting capacity up to 30mm thickness. It also features a sheet and mesh metal material type selector for added versatility and an adjustable timer for pre and post air for cleaner cutting performance.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this plasma cutter features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

ITEM NO. 05689
Input Supply: 400v (16A)
Output Current: 30A - 80A
Output Voltage: 92v - 112v: 320v DC Open Circuit Volts
Duty Cycle @ 20°C: 80A @ 100%
Cutting Thickness: 20mm (quality) / 30mm (severance)
Air Pressure: 87psi (6bar)
Protection / Insulation: IP21 / H

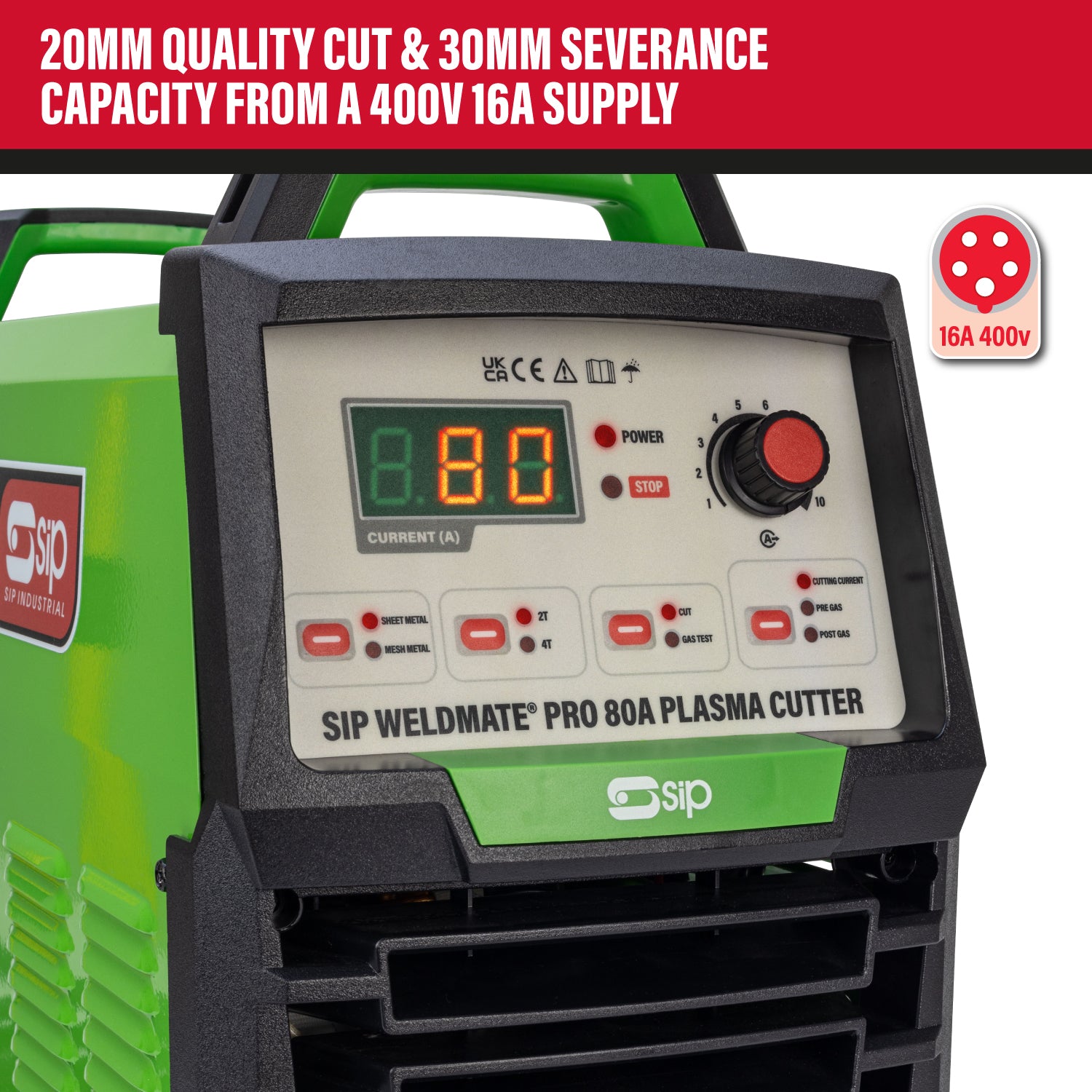

Cutting capacity of 20mm quality and 30mm severance from 400v/16A supply

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

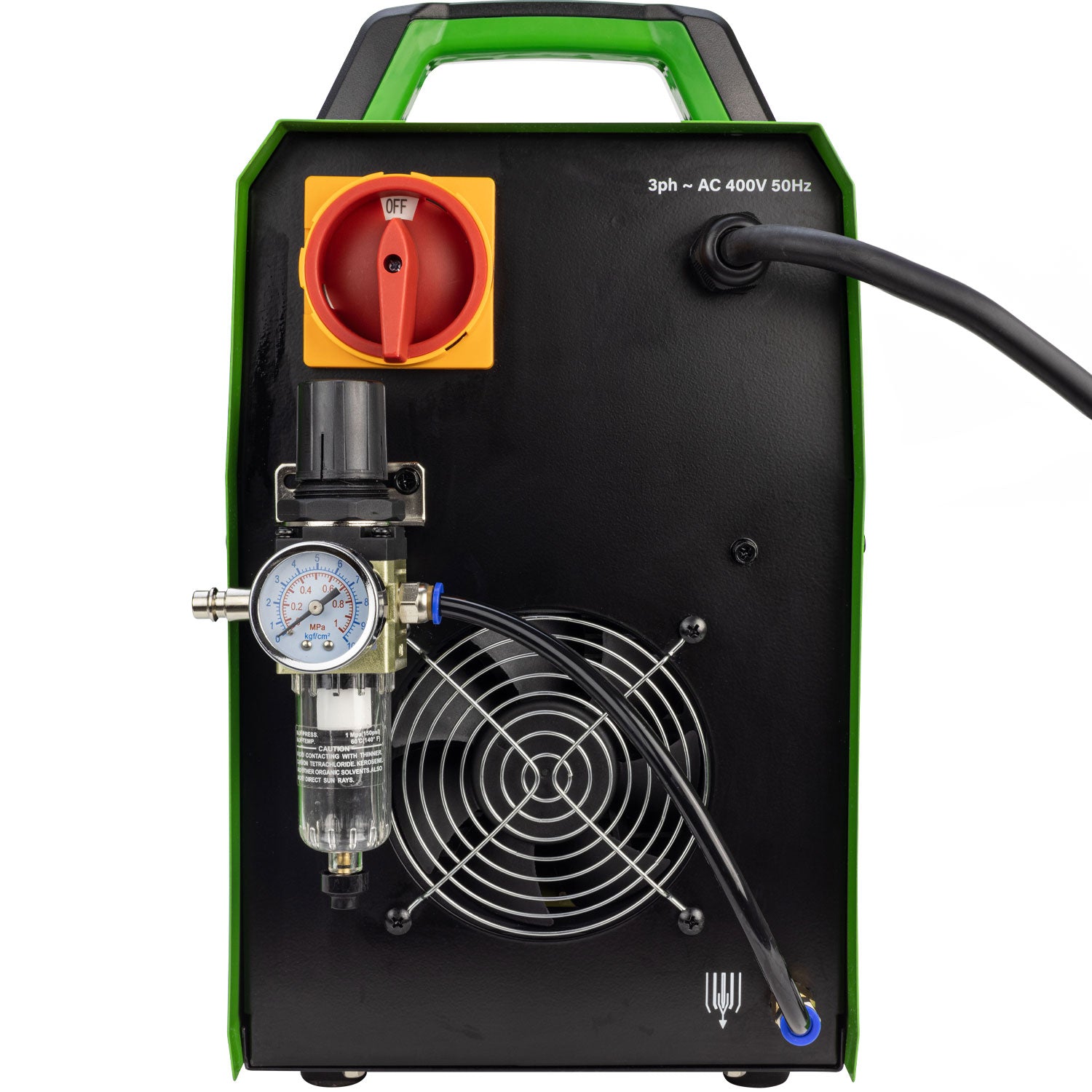

Adjustable air regulator to enable consistent supply of compressed air

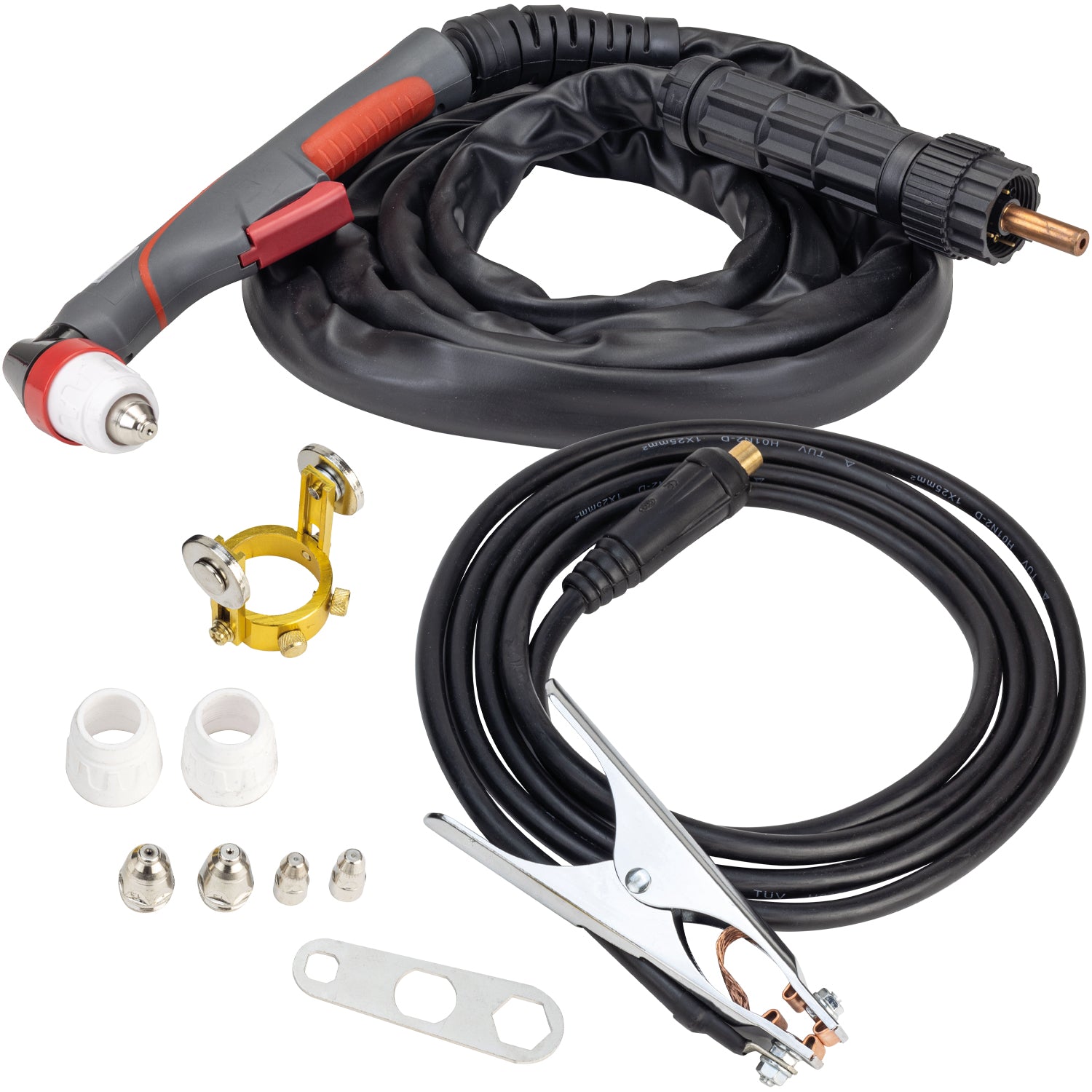

Includes separate 3mtr plasma torch with Euro connector and strike-up guard

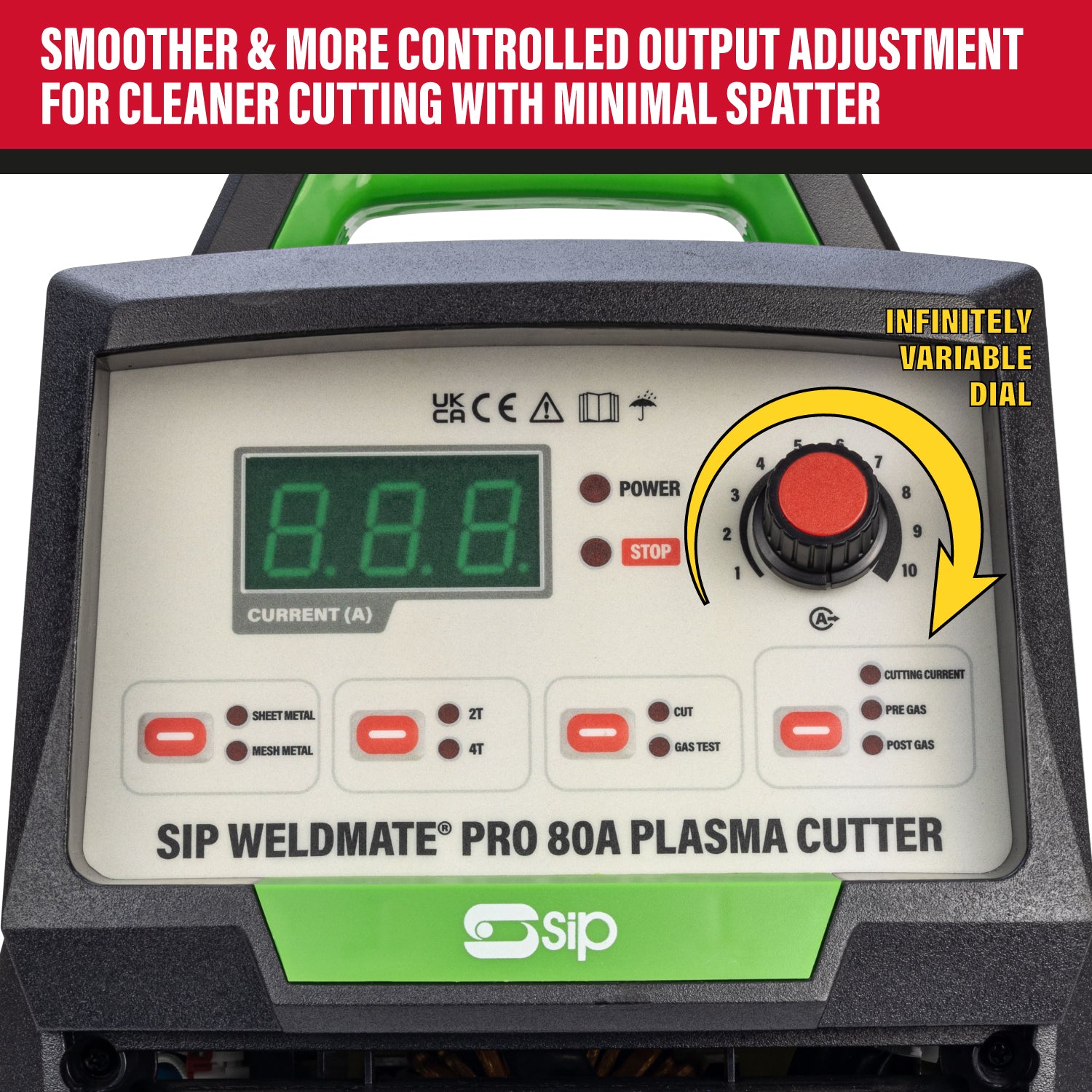

Material type selector for added versatility when cutting sheet or mesh metals

Adjustable timer for pre/post air to prevent overheating of torch consumables

SIP WELDMATE® PRO 80A Inverter Plasma Cutter

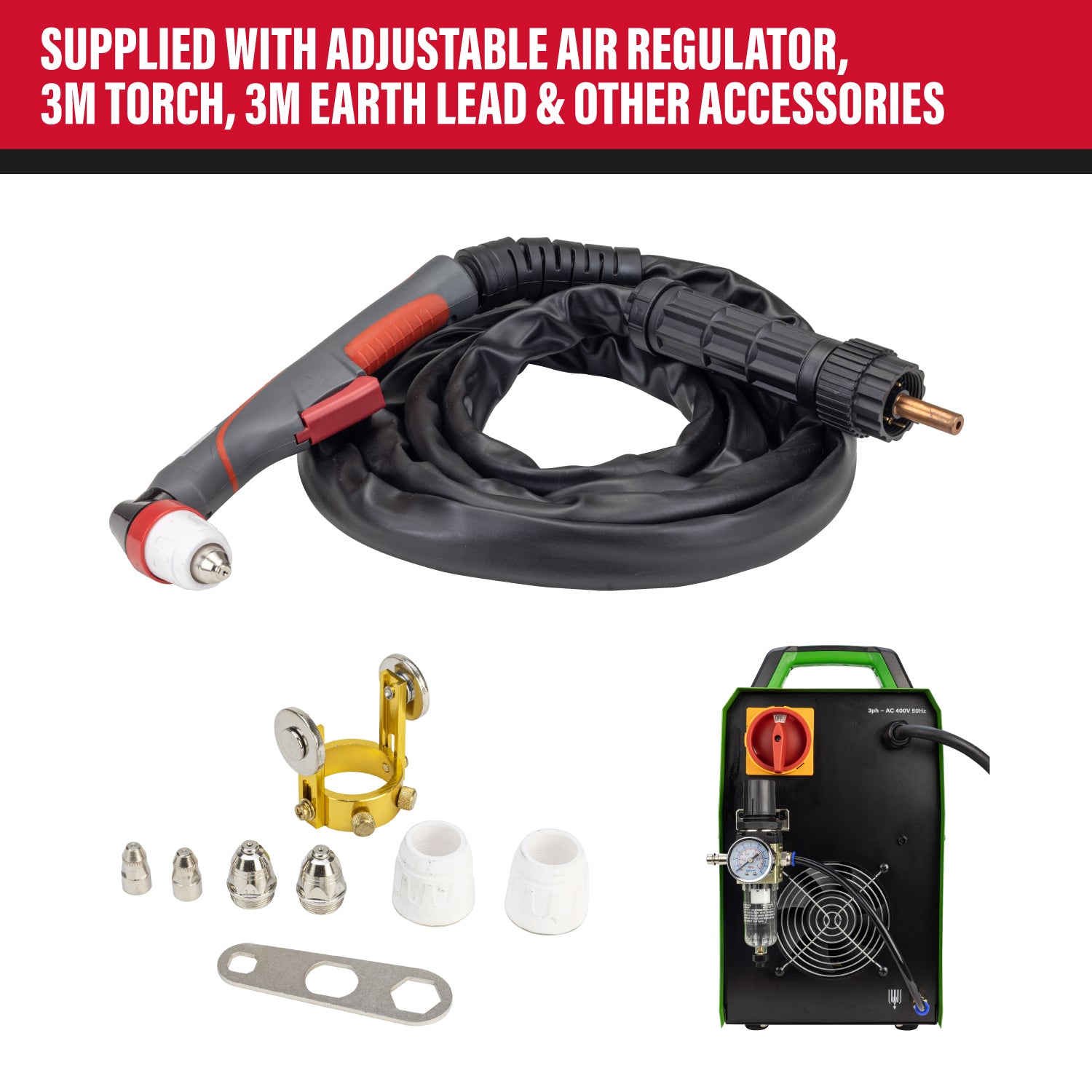

1x SIP WELDMATE® PRO 80A Inverter Plasma Cutter (400v/16A), 1x 3mtr plasma torch (supplied with additional electrodes, nozzles, ceramic shields and torch spanner), 1x plasma torch straight cutting guide, 1x adjustable air regulator, 1x 3mtr earth lead.
