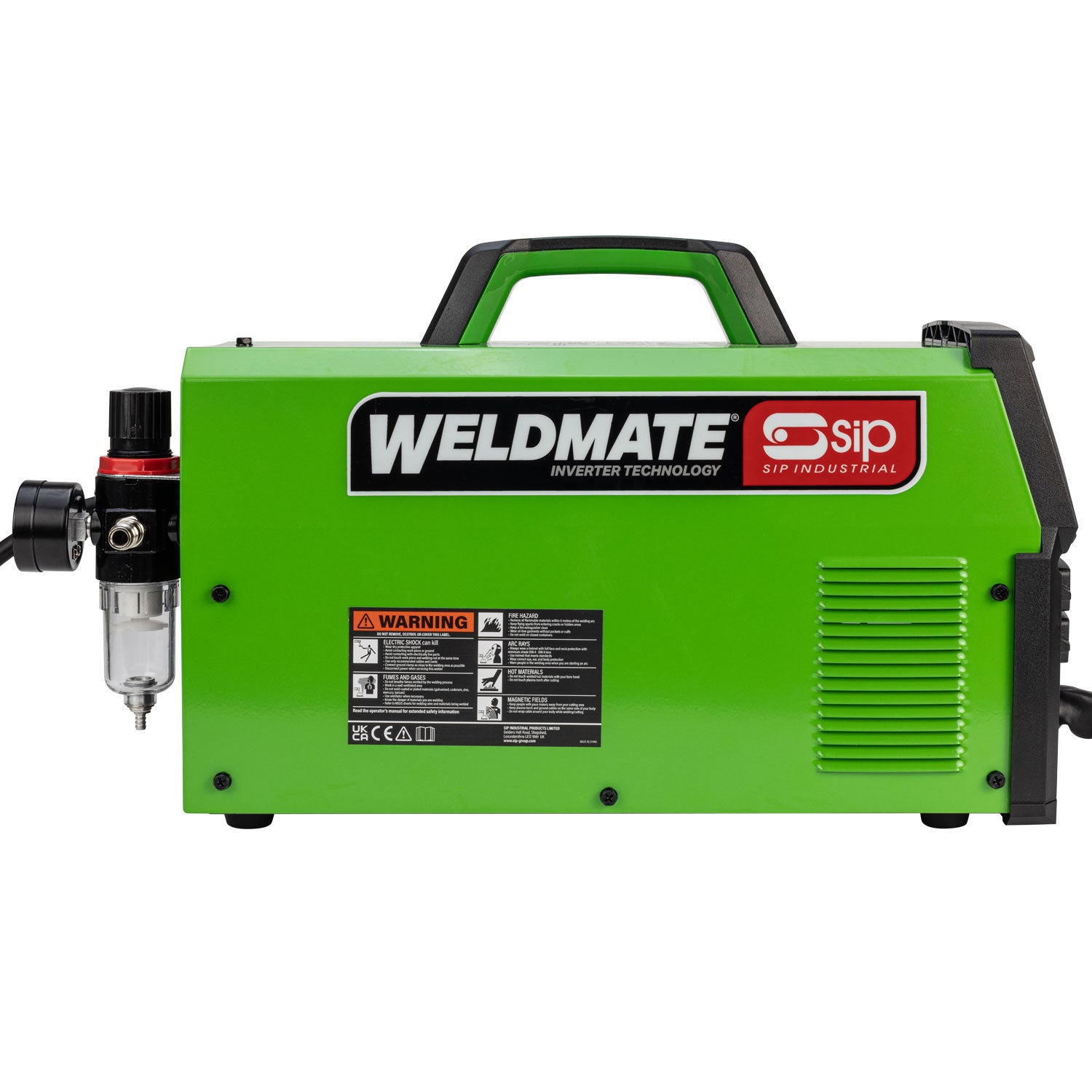

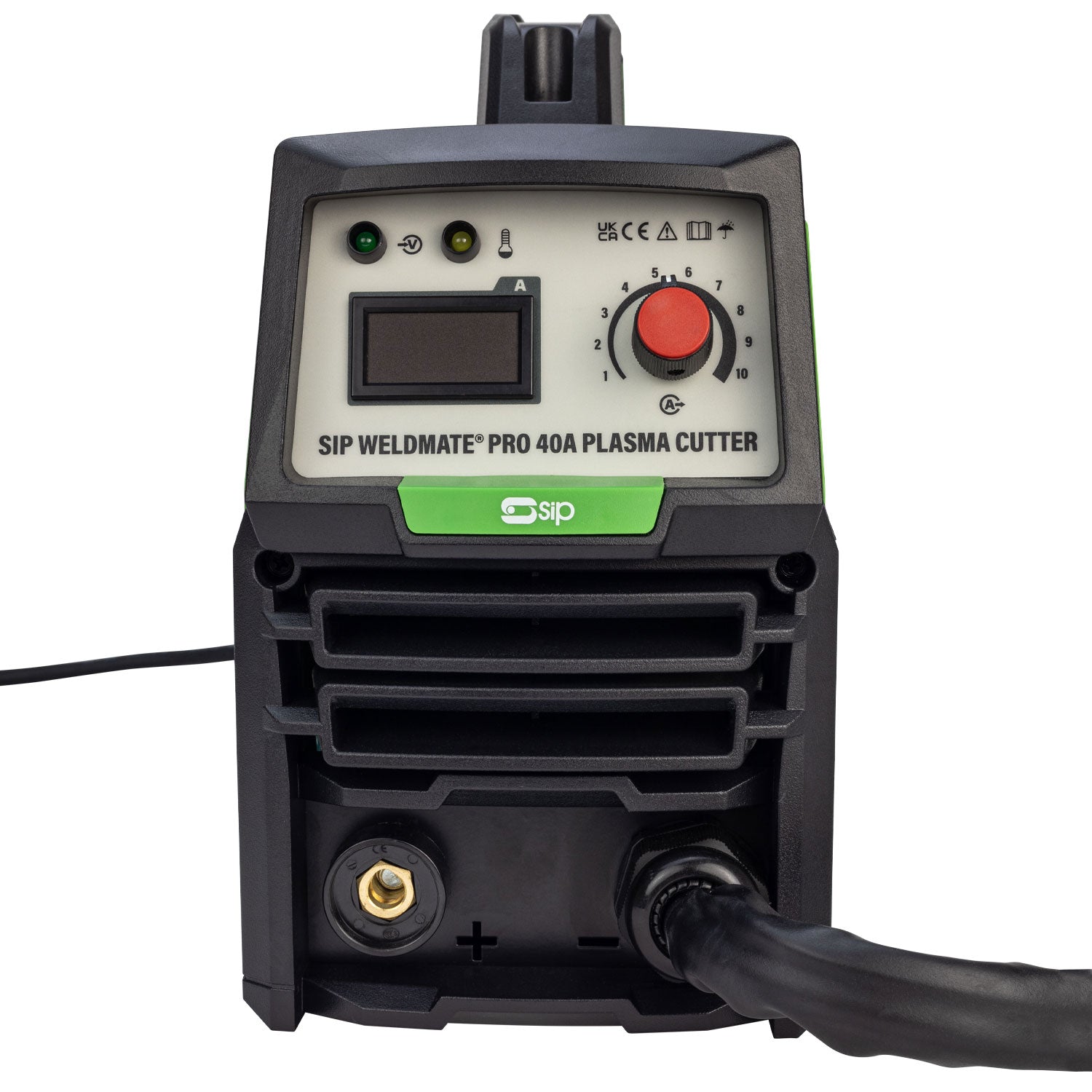

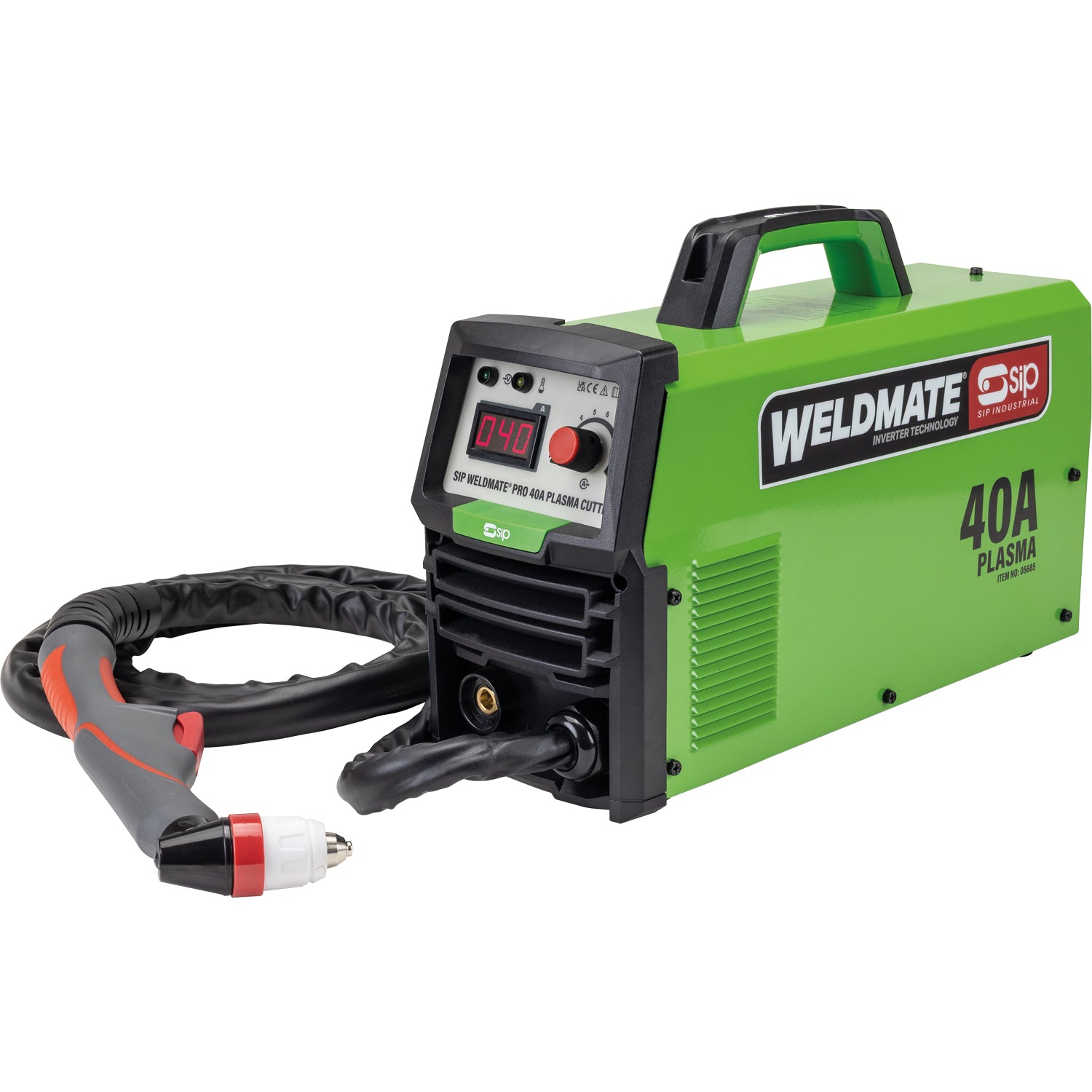

SIP 05685 WELDMATE® PRO 40A Inverter Plasma Cutter

The SIP WELDMATE® PRO 40A Inverter Plasma Cutter is a powerful and versatile inverter plasma cutter designed for use in automotive and garage environments, professional fabrication workshops and agricultural settings.

Easy to operate and safer than cutting with a naked flame, this powerful and compact inverter plasma cutter has a cutting capacity up to 12mm thickness. It also features an infinitely variable dial for a smoother and more controllable output adjustment. This enables cleaner cutting with minimal spatter.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this plasma cutter features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

ITEM NO. 05685
Input Supply: 230v (16A)
Output Current: 15A - 40A
Output Voltage: 86v - 96v: 325v DC Open Circuit Volts
Duty Cycle @ 20°C: 40A @ 40%
Cutting Thickness: 10mm (quality) / 12mm (severance)
Air Pressure: 87psi (6bar)
Protection / Insulation: IP21 / H

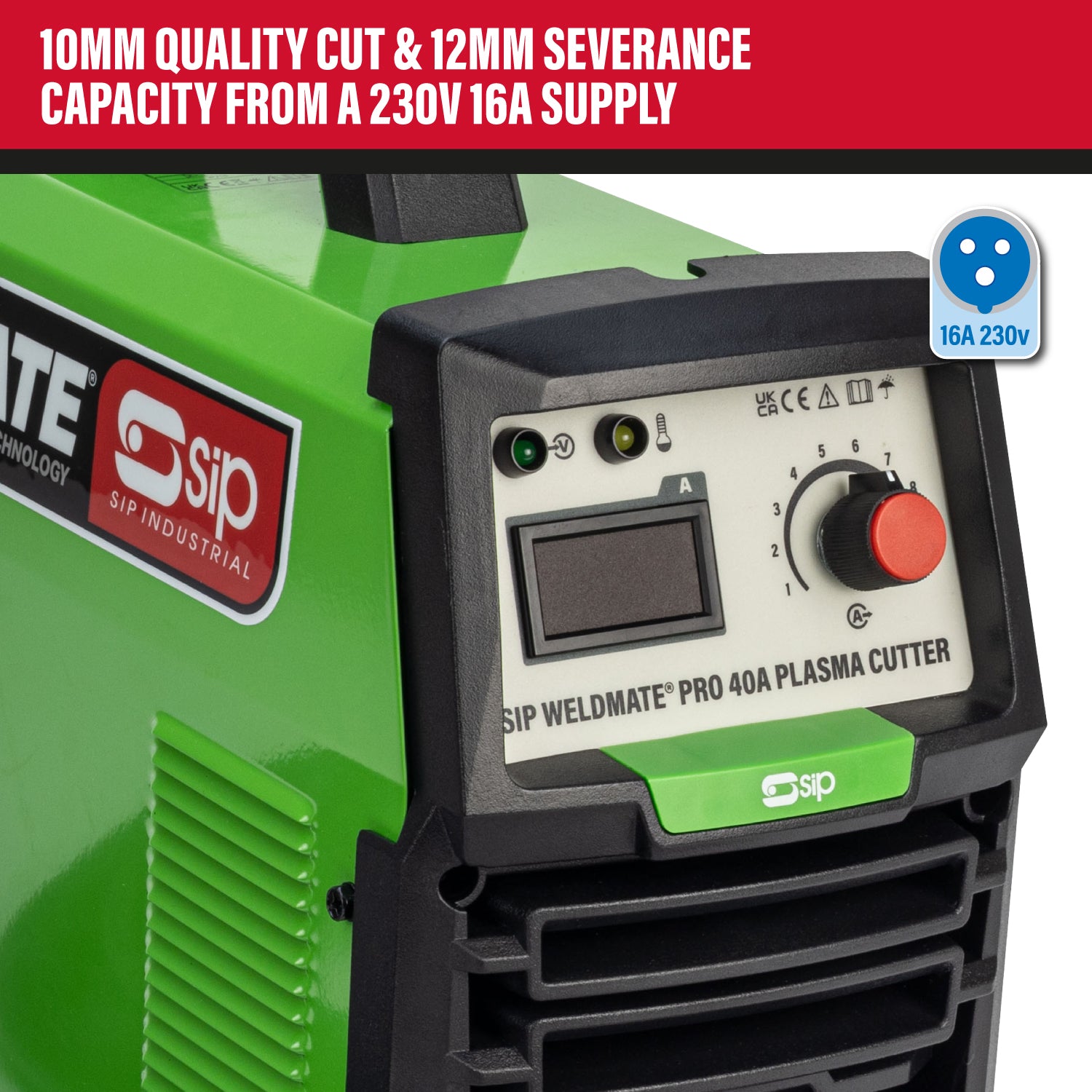

Cutting capacity of 10mm quality and 12mm severance from 230v/16A supply

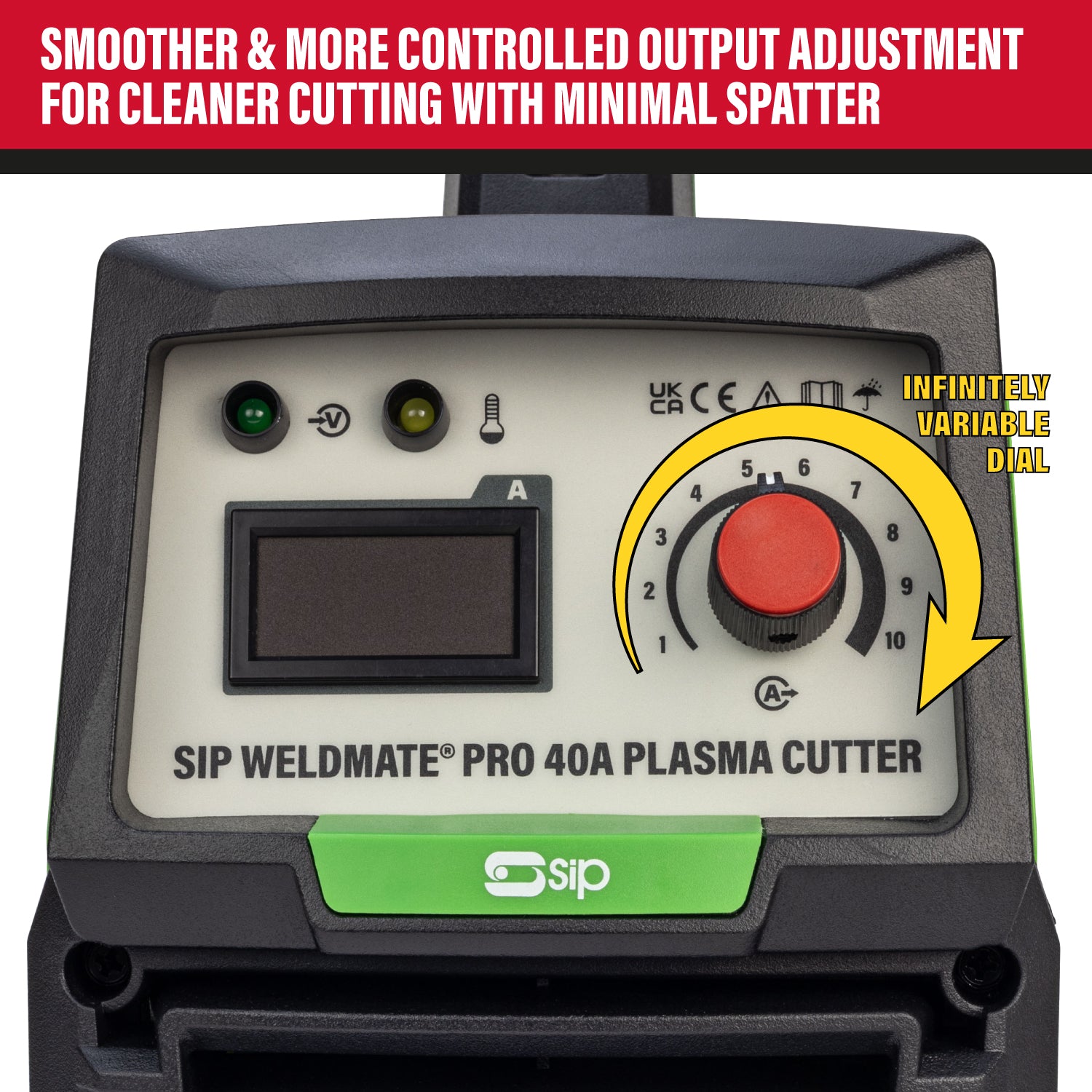

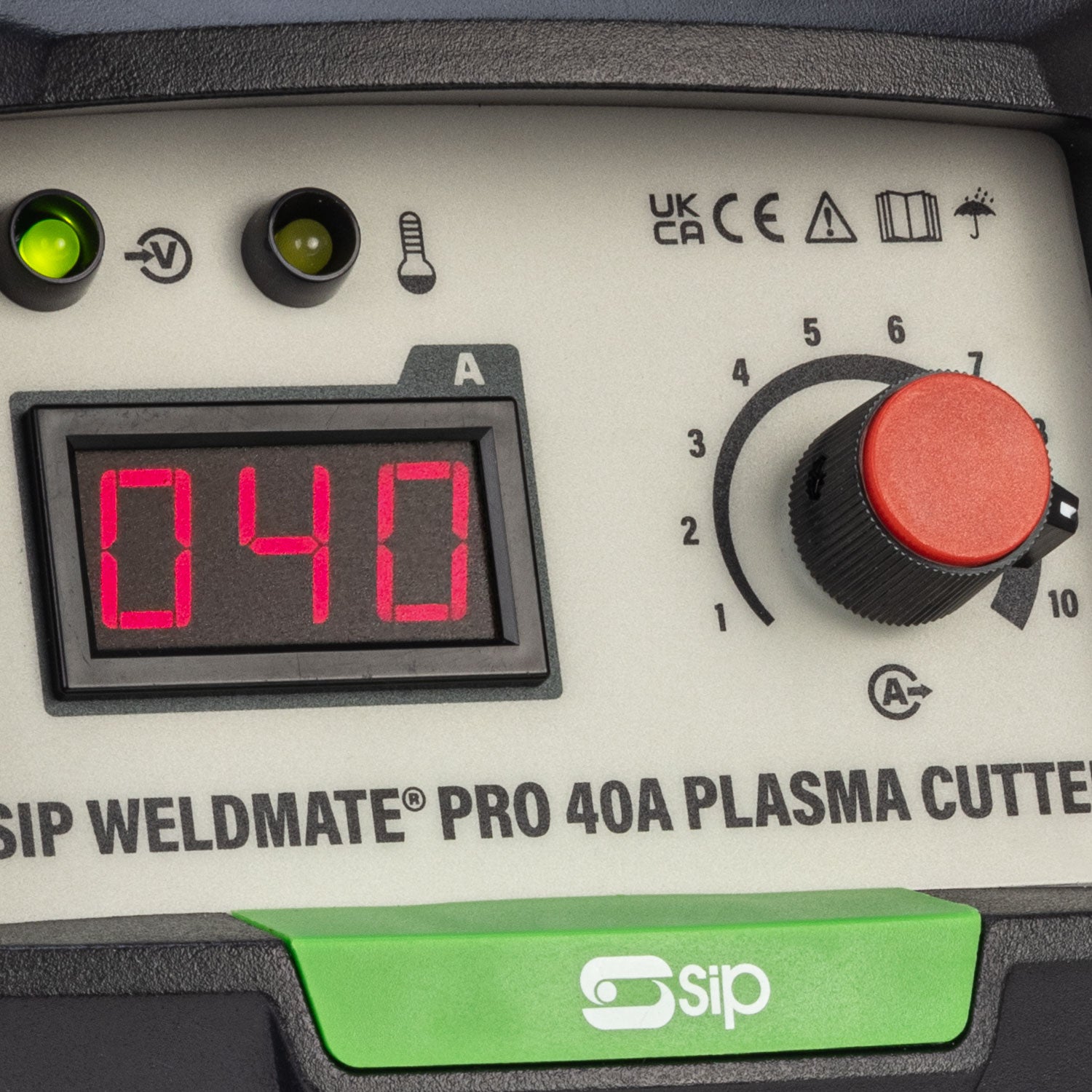

Infinitely variable dial with LED display offers smoother stepless adjustment

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

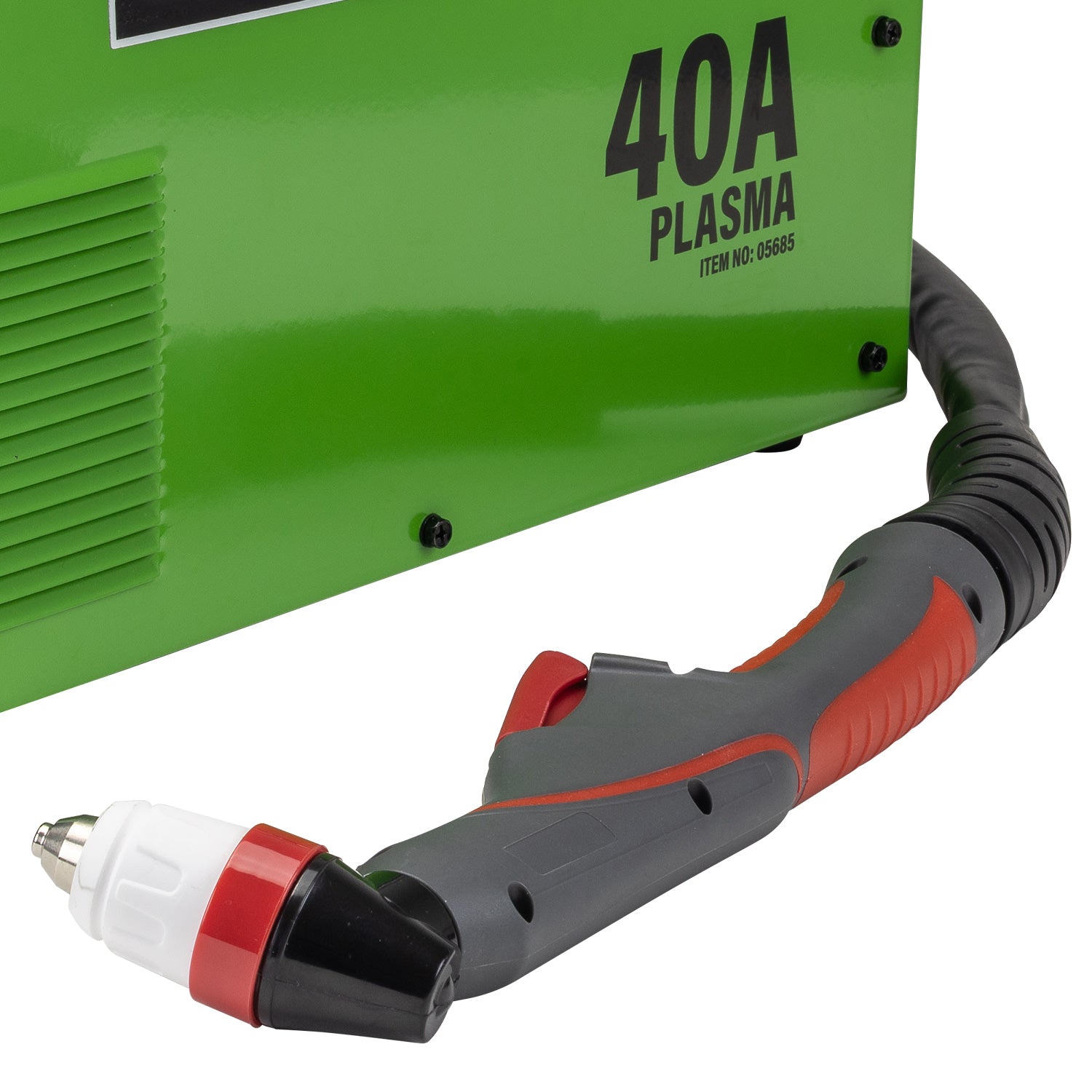

Integrated 3mtr plasma torch with strike-up guard for added user protection

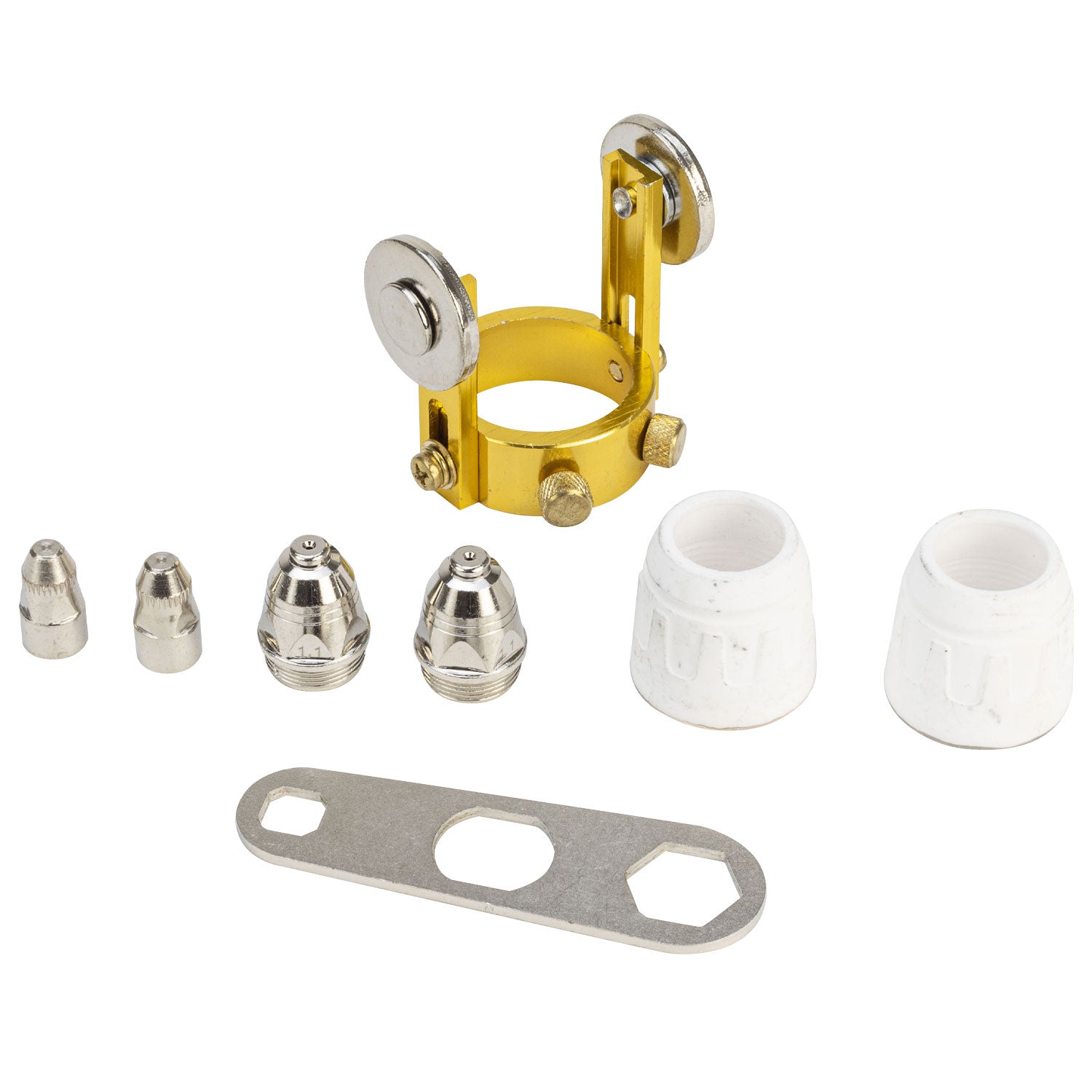

Additional electrodes, nozzles, ceramic shields and torch spanner supplied

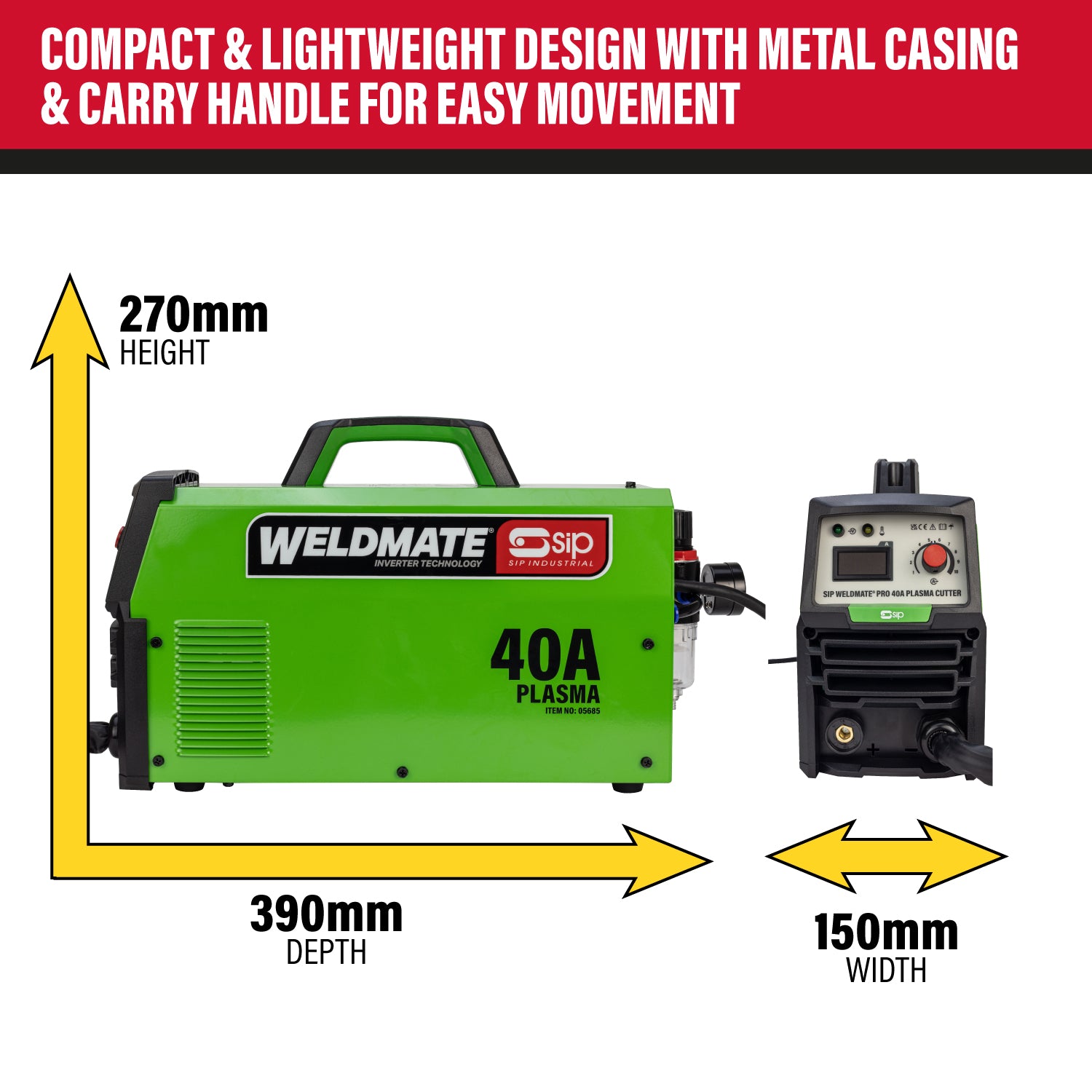

Compact and portable design for easy work area movement

SIP 05685 WELDMATE® PRO 40A Inverter Plasma Cutter

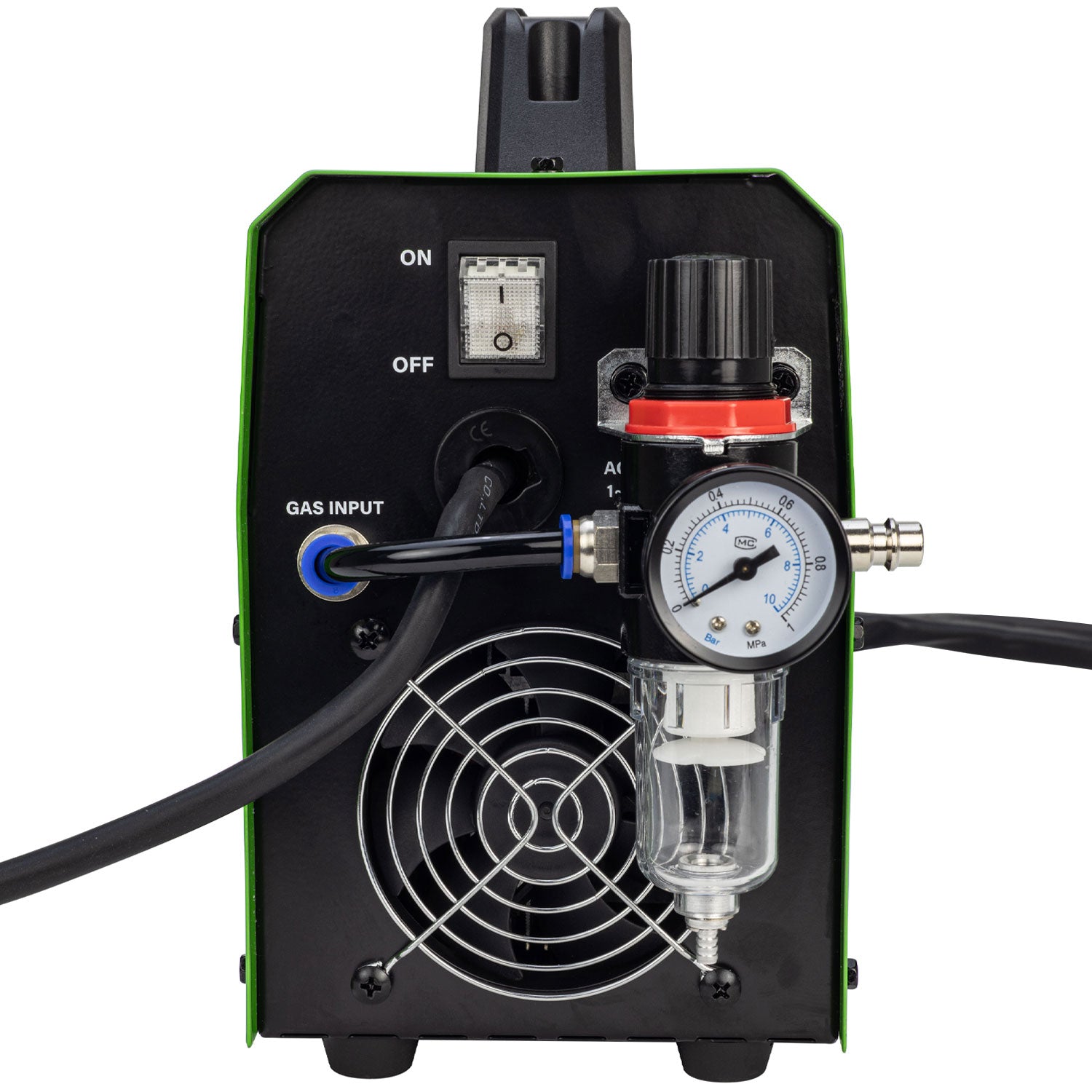

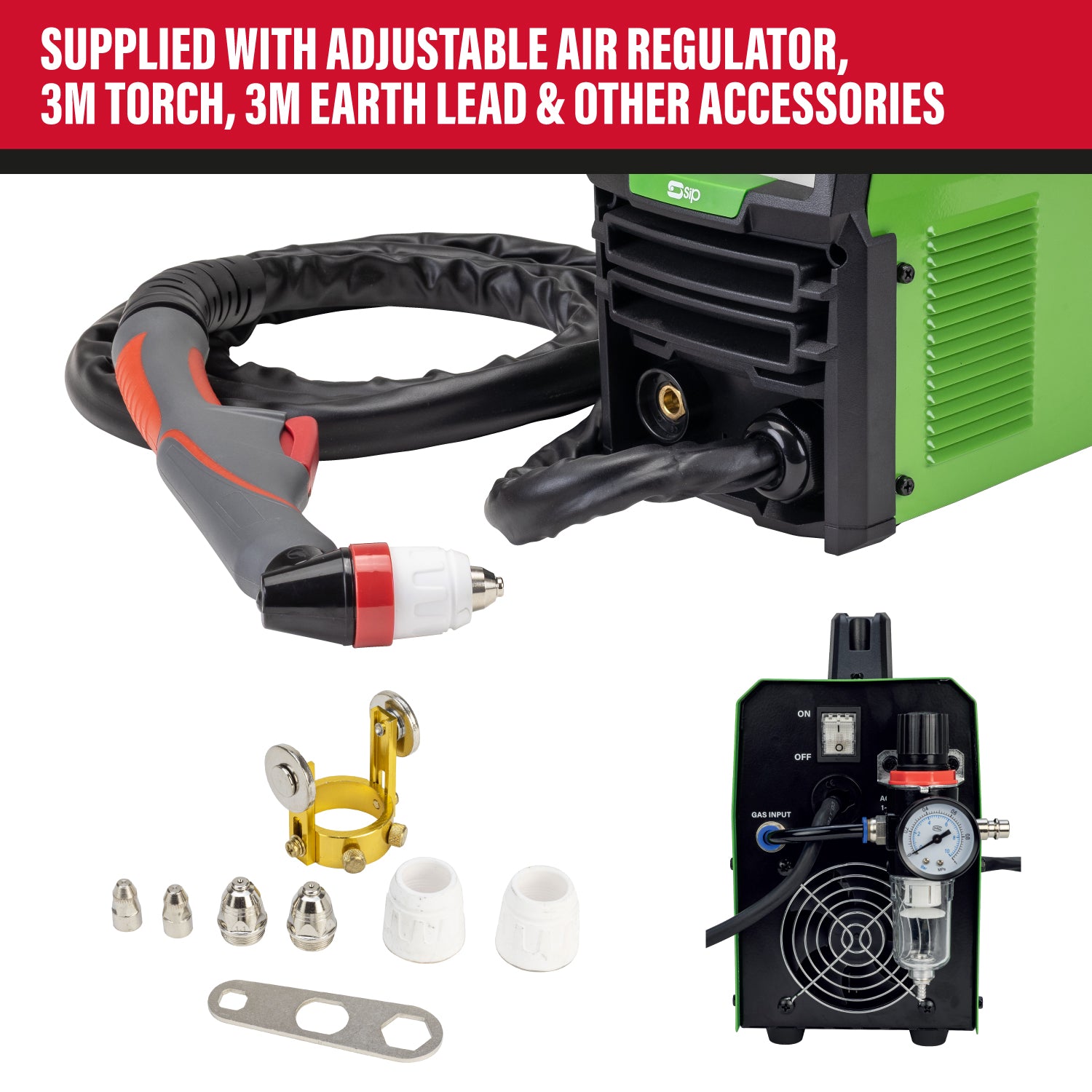

1x SIP WELDMATE® PRO 40A Inverter Plasma Cutter (230v/16A), 1x integrated 3mtr plasma torch (supplied with additional electrodes, nozzles, ceramic shields and torch spanner), 1x plasma torch straight cutting guide, 1x adjustable air regulator, 1x 3mtr earth lead.
