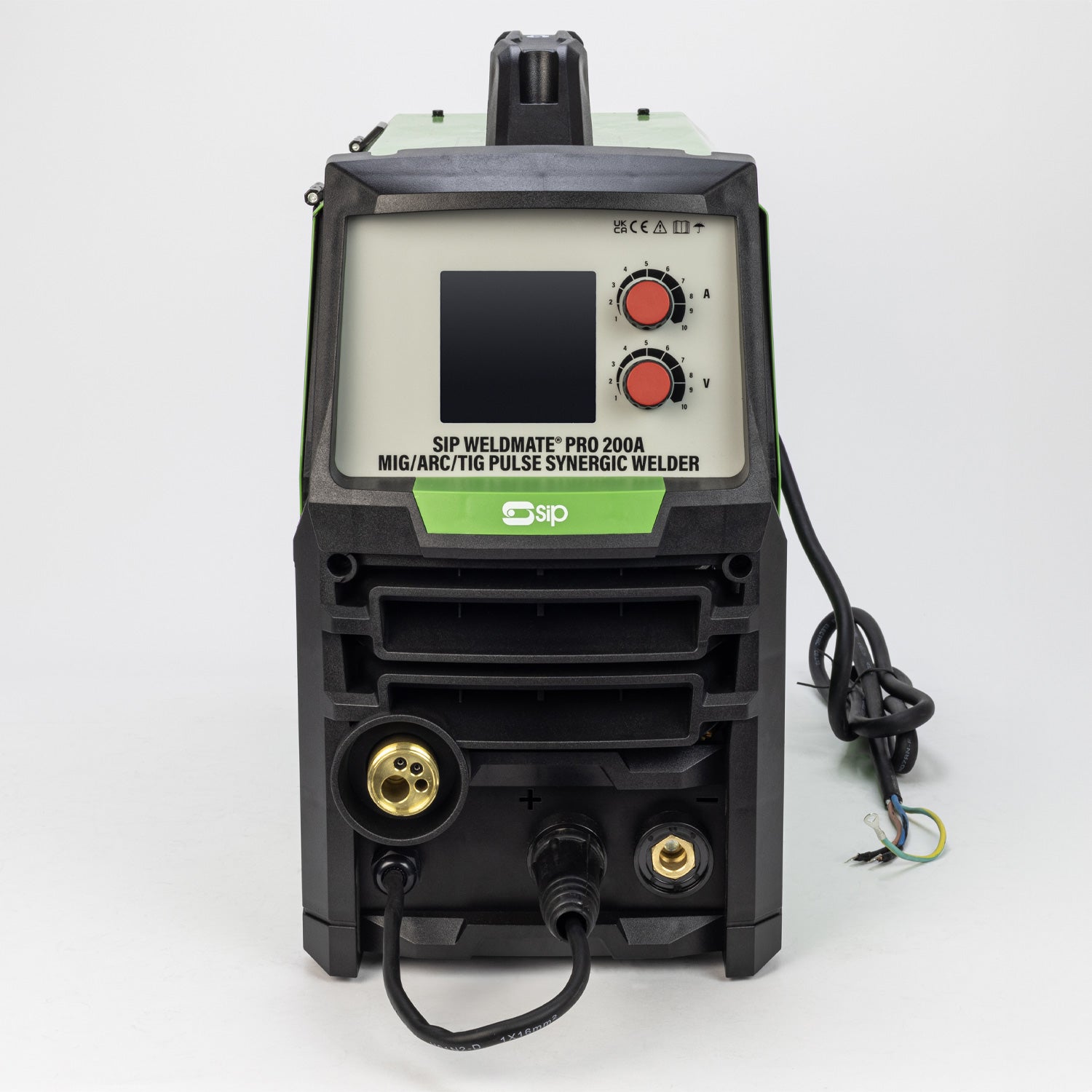

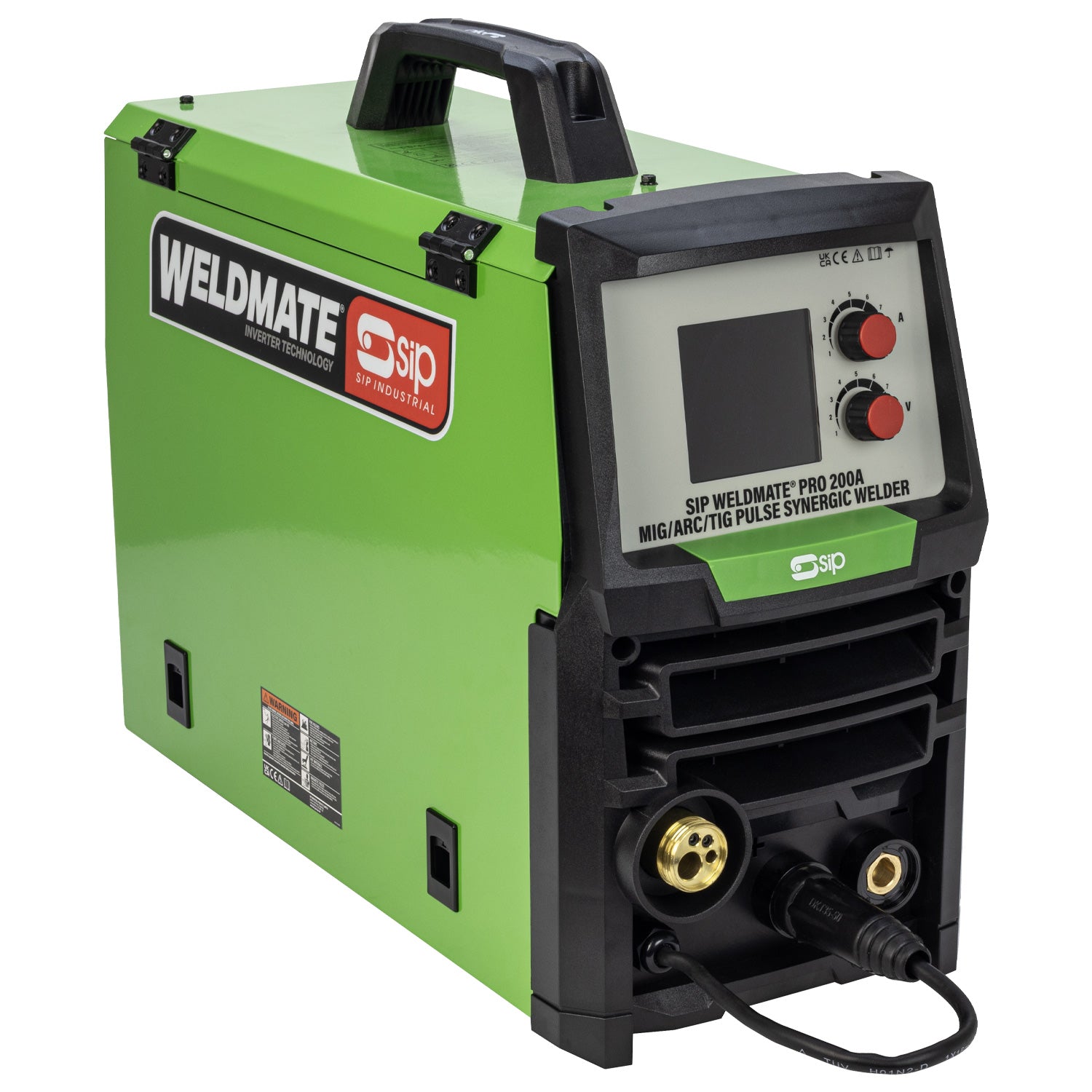

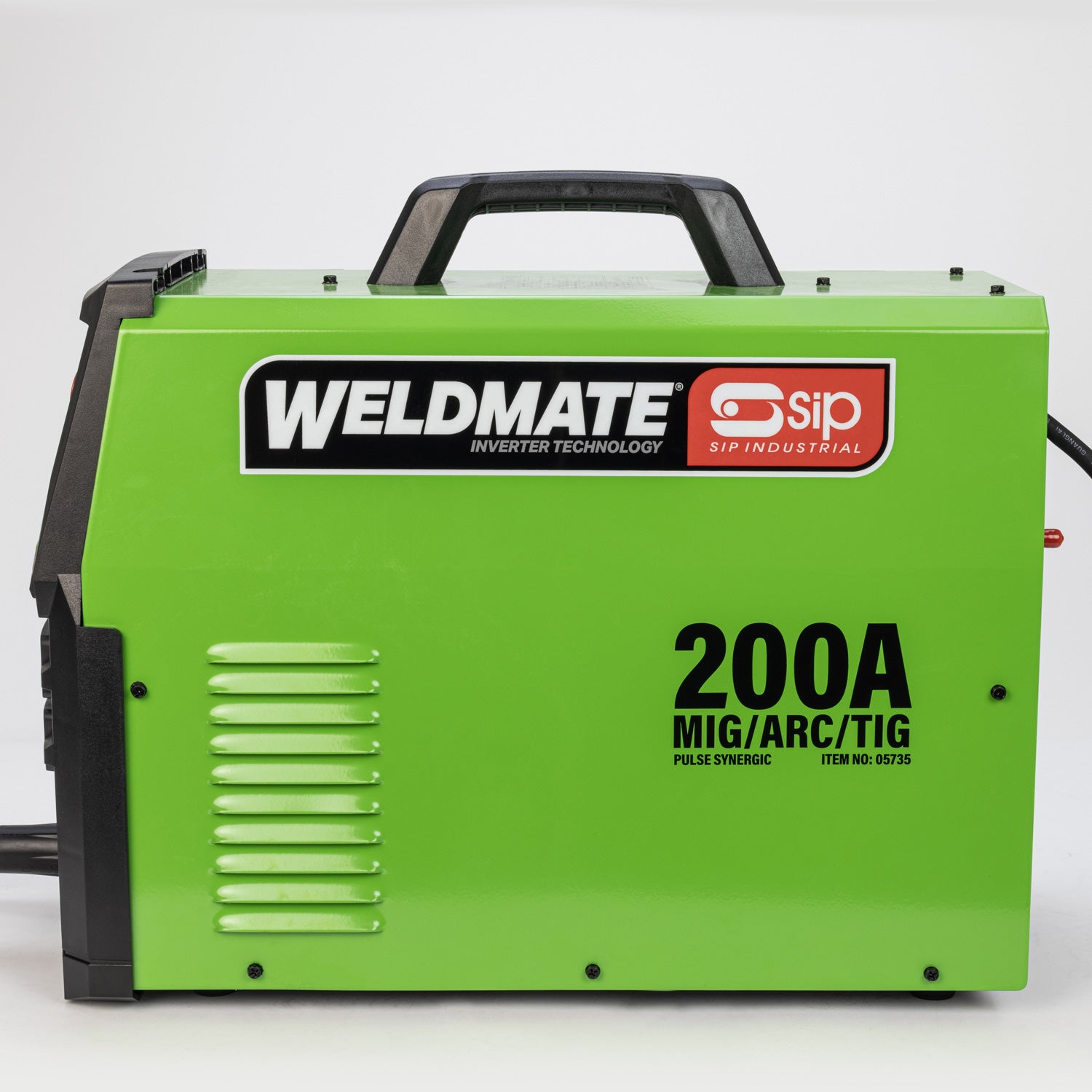

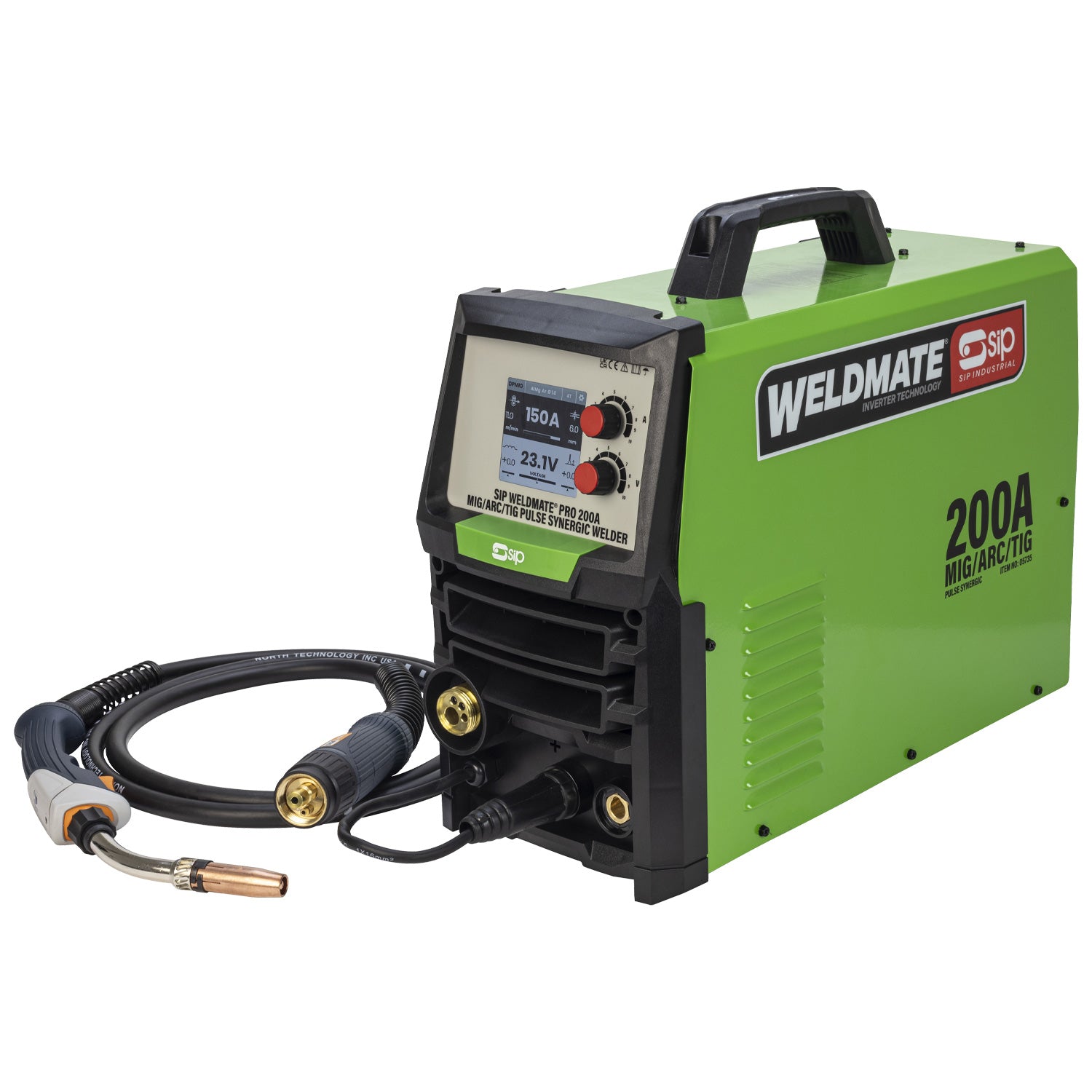

SIP 05735 WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Welder

The SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

For a simplified welding process, Pure Synergic Control allows users to adjust welding voltage and wire feed speed autonomously, while MIG Pulse functionality allows advanced users to achieve higher quality MIG welding on aluminium and greater control on ferrous metals.

ITEM NO. 05735

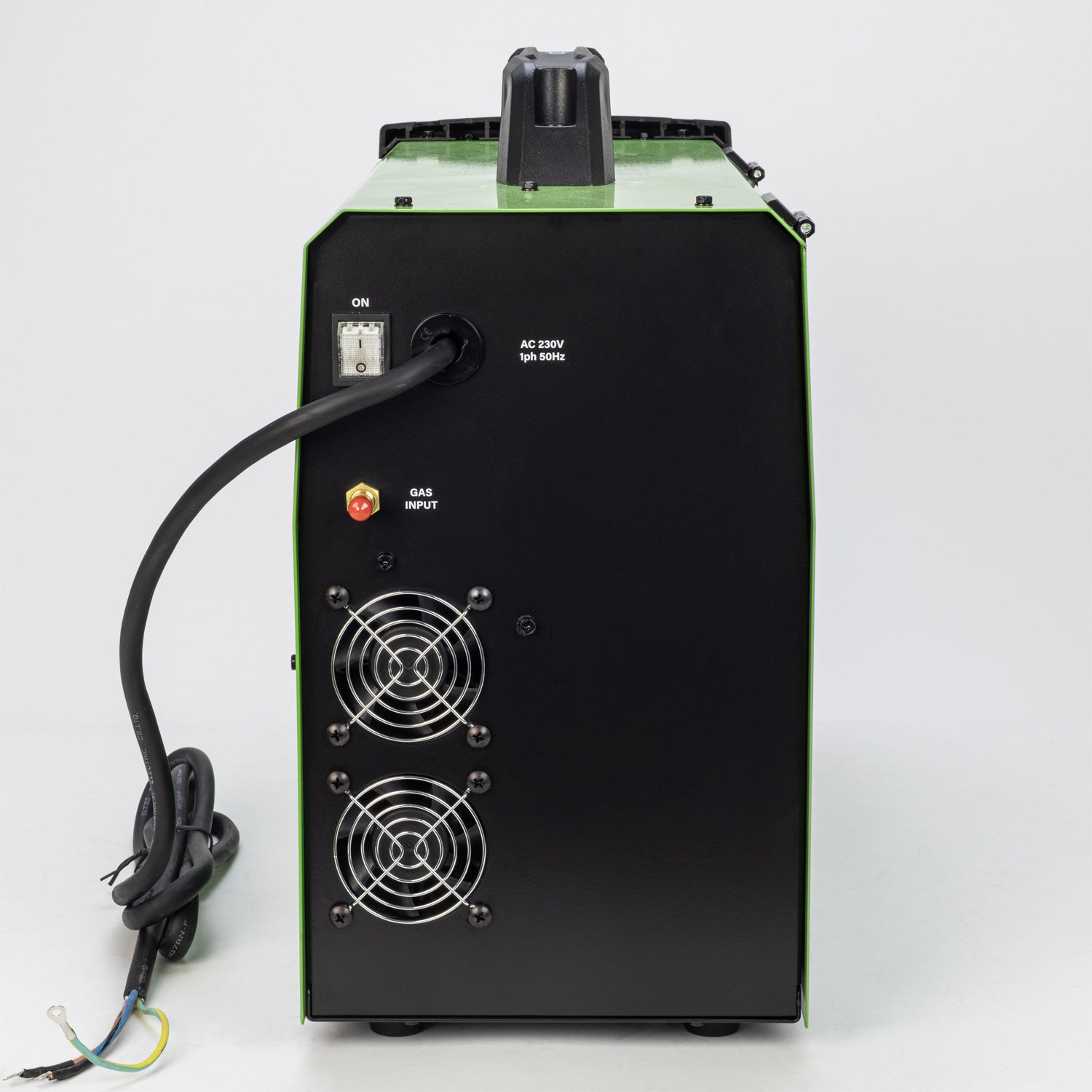

Input Supply: 230v (16A)
Output Voltage: 16.5v - 24v (MIG) / 15.5v - 22.5v (MIG Pulse) / 20.8v - 27.2v (ARC) / 10.8v - 17.2v (TIG)
Output Current: 20A - 200A (MIG) / 30A - 170A (MIG Pulse) / 20A - 180A (ARC) / 20A - 180A (TIG)
Duty Cycle @ 20°C: 200A @ 30% (MIG) / 170A @ 30% (MIG Pulse) / 180A @ 30% (ARC) / 180A @ 30% (TIG)
Wire Diameter: ⌀ 0.8mm - 1mm
Wire Spool Size: 5kg, 15kg
Welding Material Thickness: 0.8mm - 7mm (mild steel) / 2.5mm - 7mm (aluminium)
Protection / Insulation 21S / H

Multi-process MIG/ARC/TIG welder for greater flexibility

Pure Synergic Control for more consistent and higher quality welds

MIG Pulse functionality for setting parameters and arc characteristics

Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

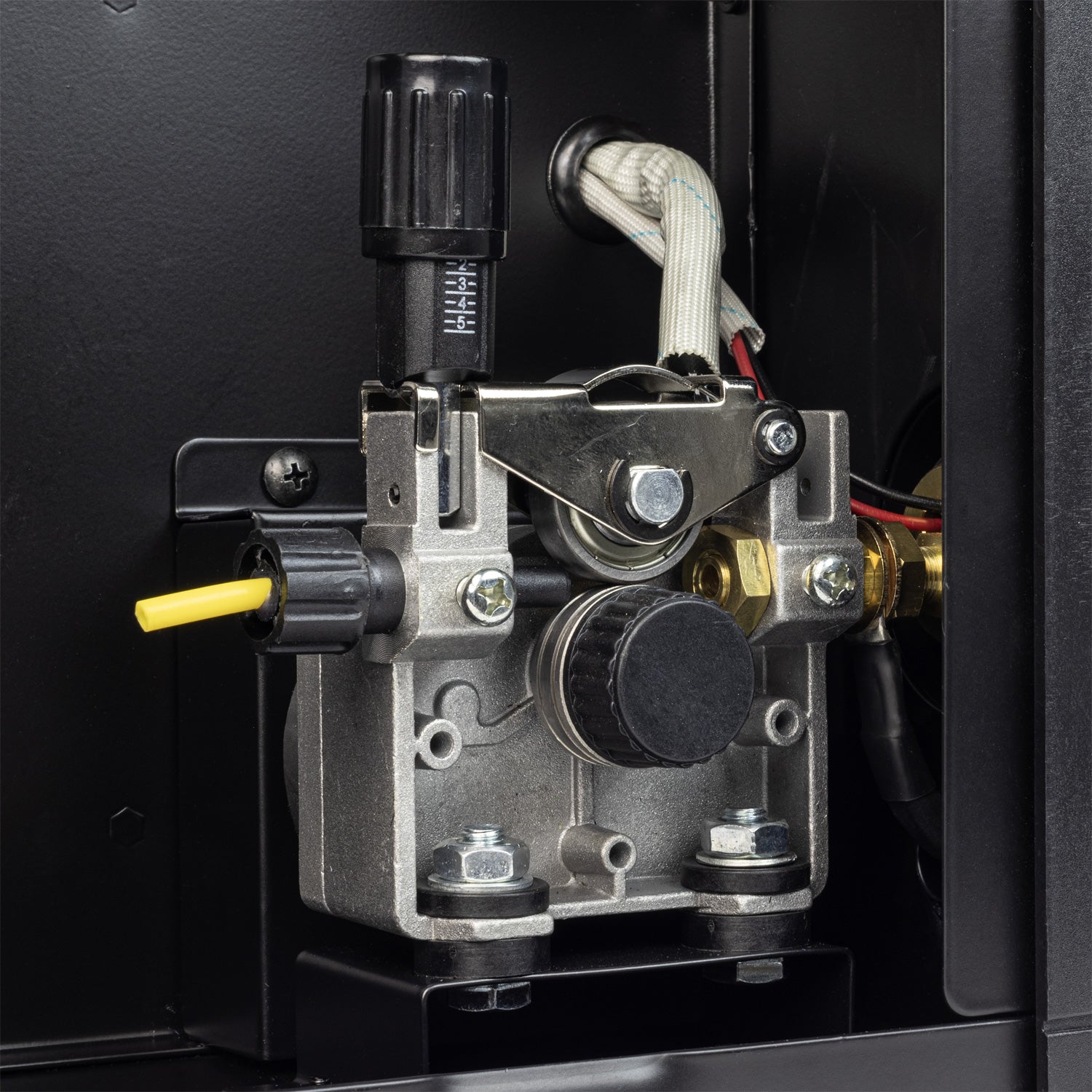

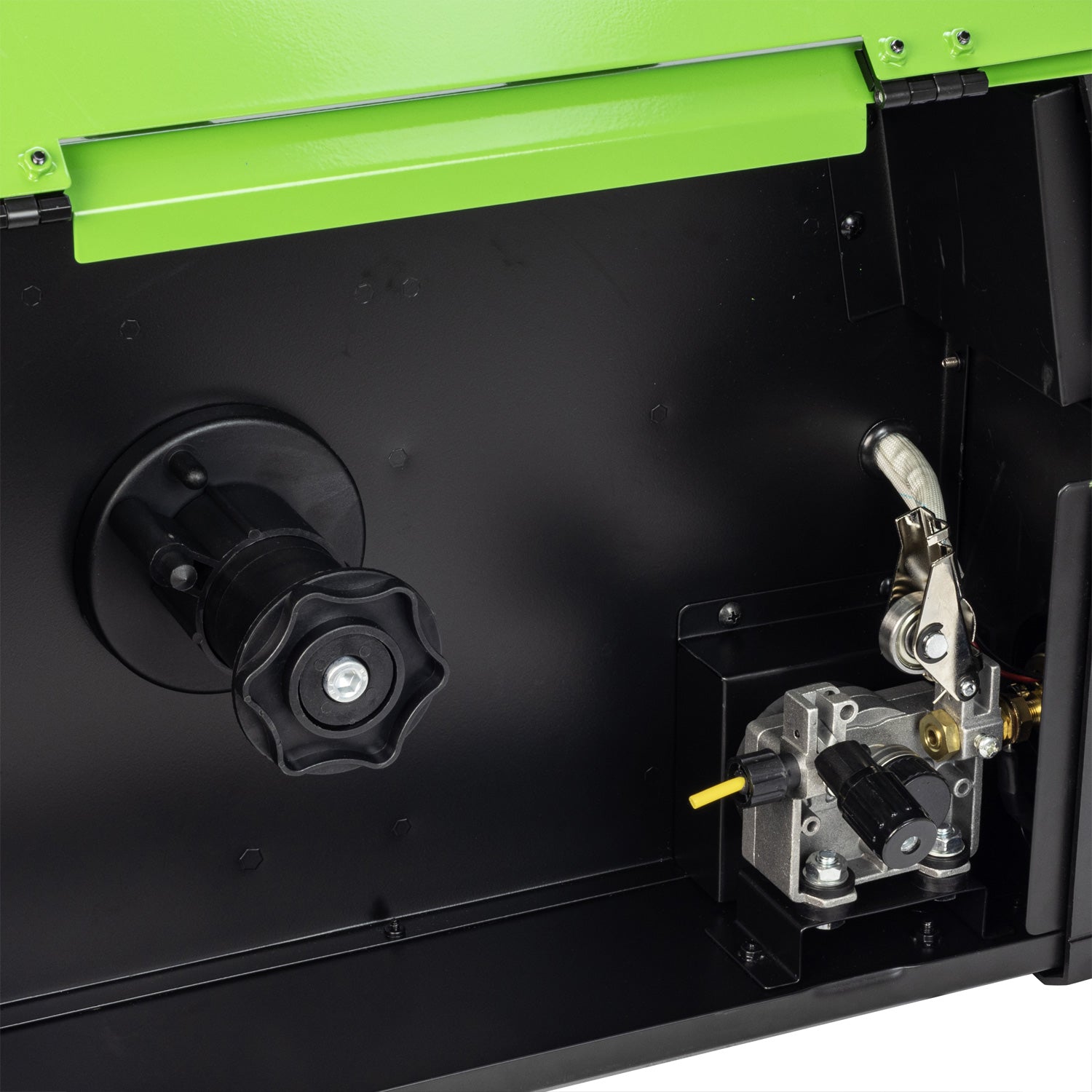

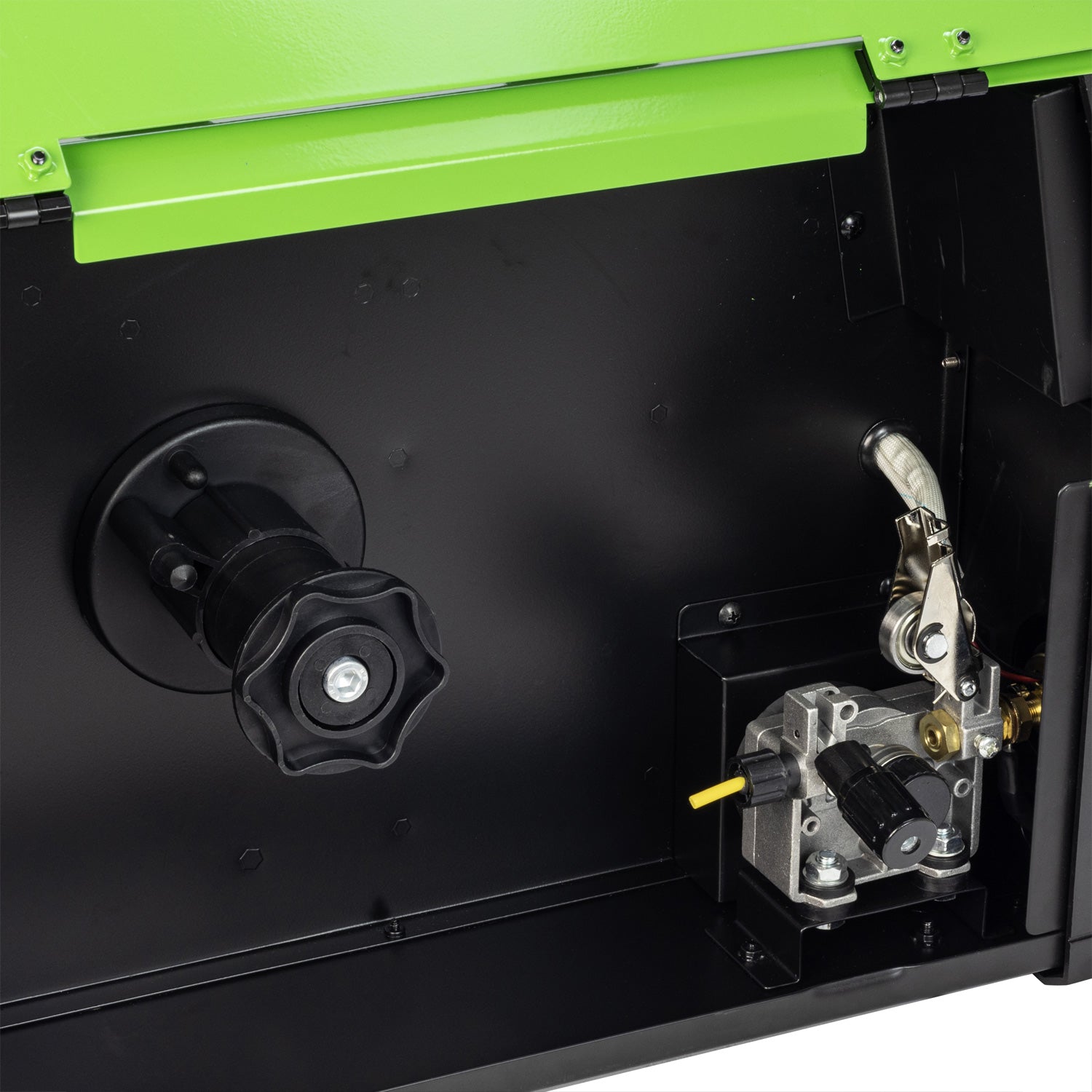

Heavy-duty aluminium wire feeder for smooth consistent flow of wire

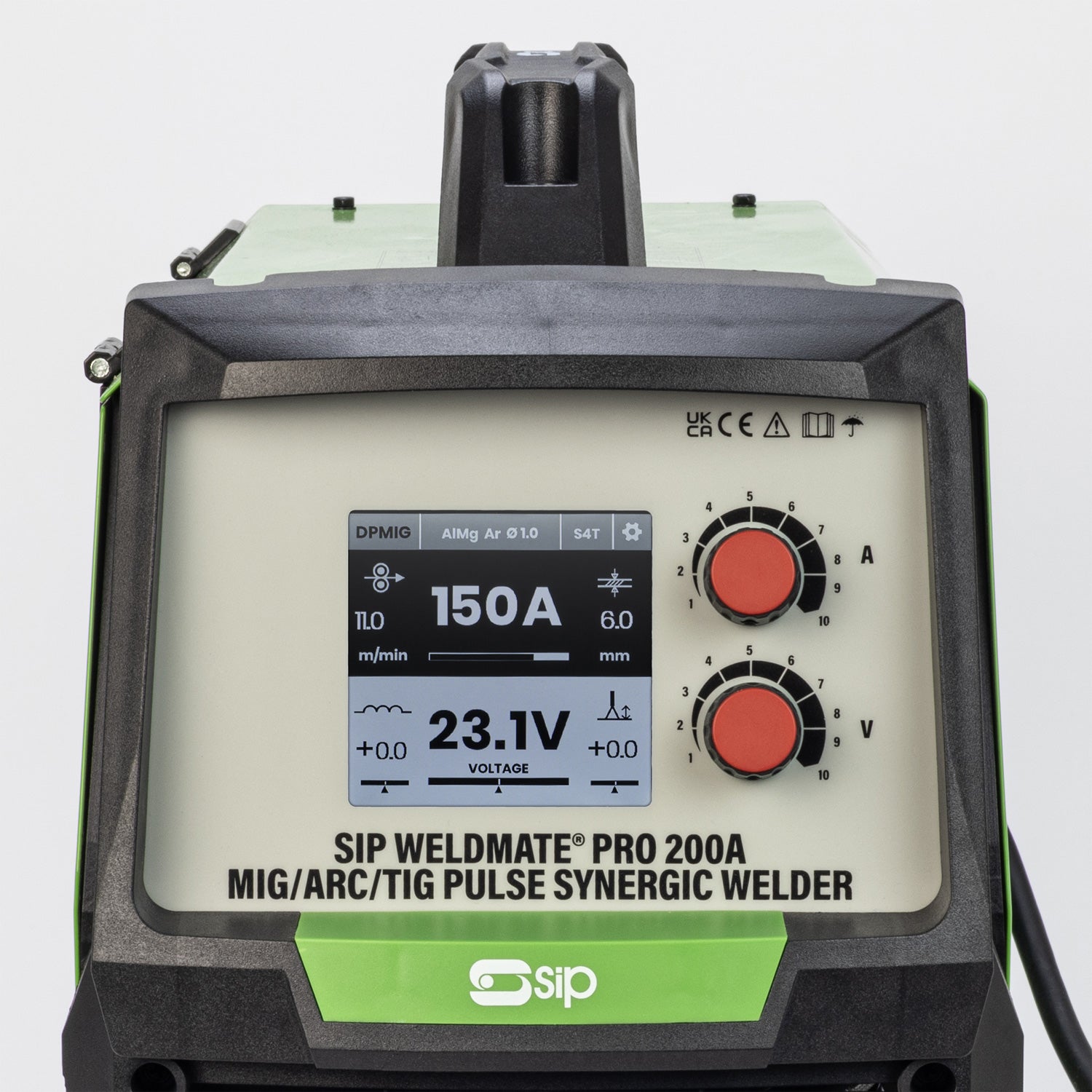

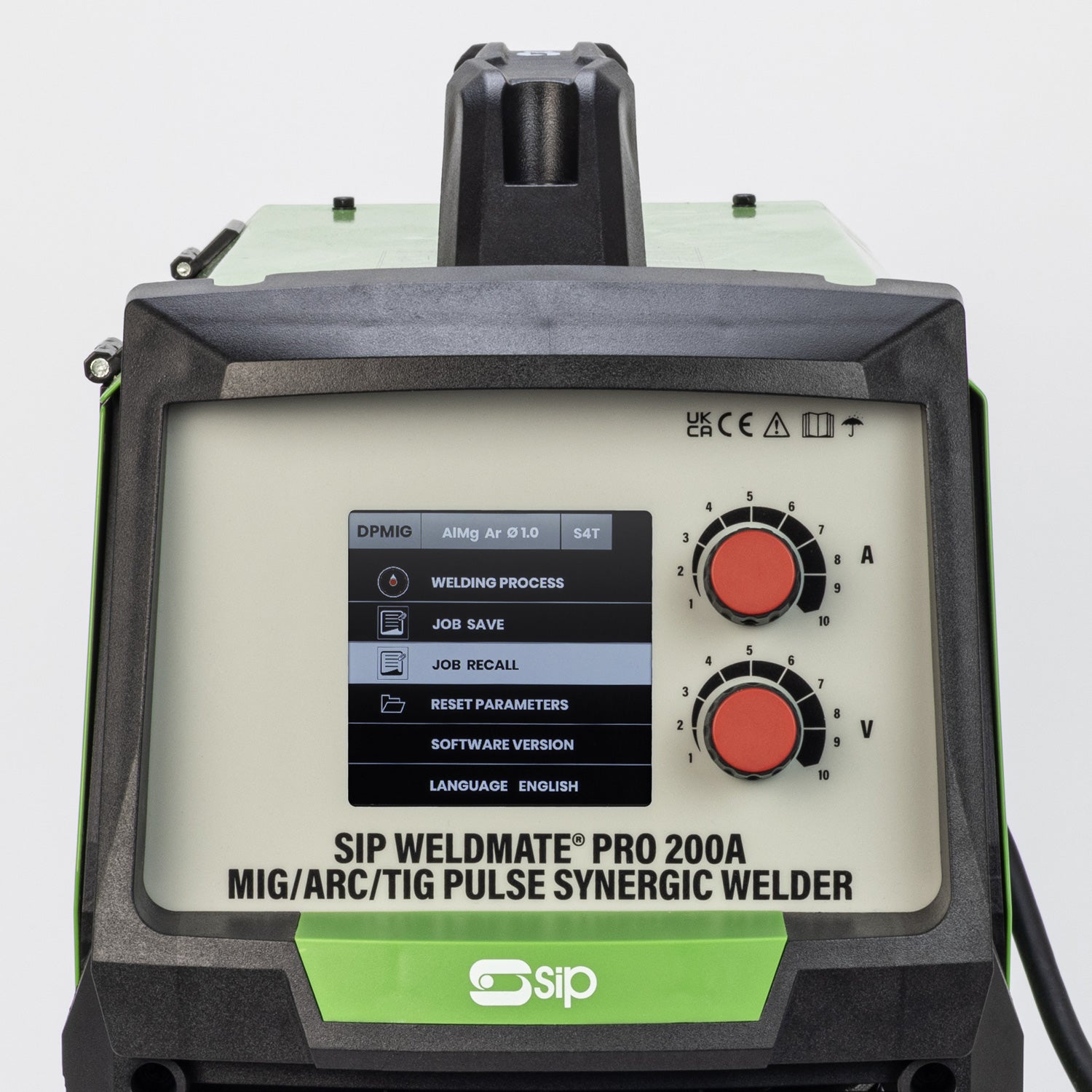

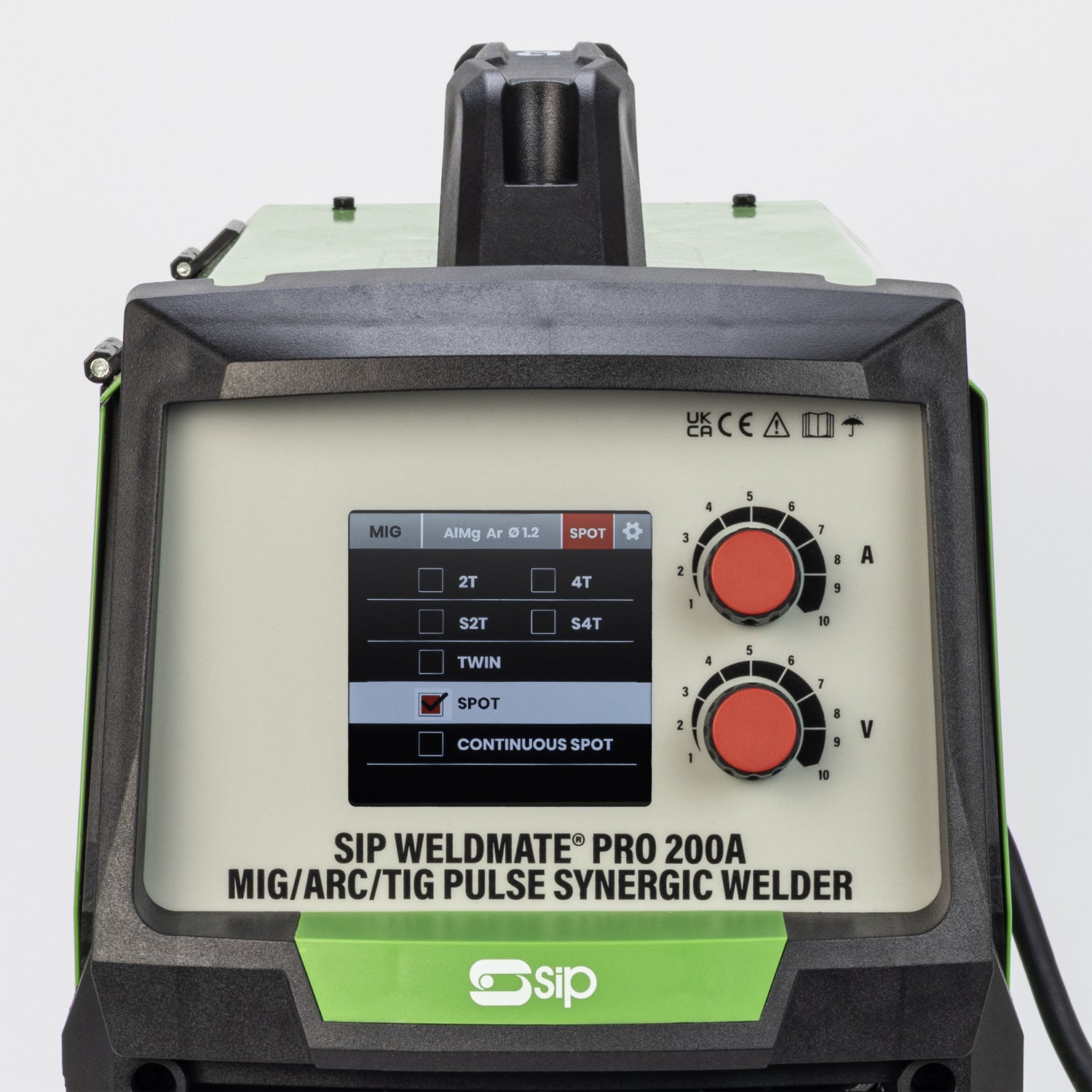

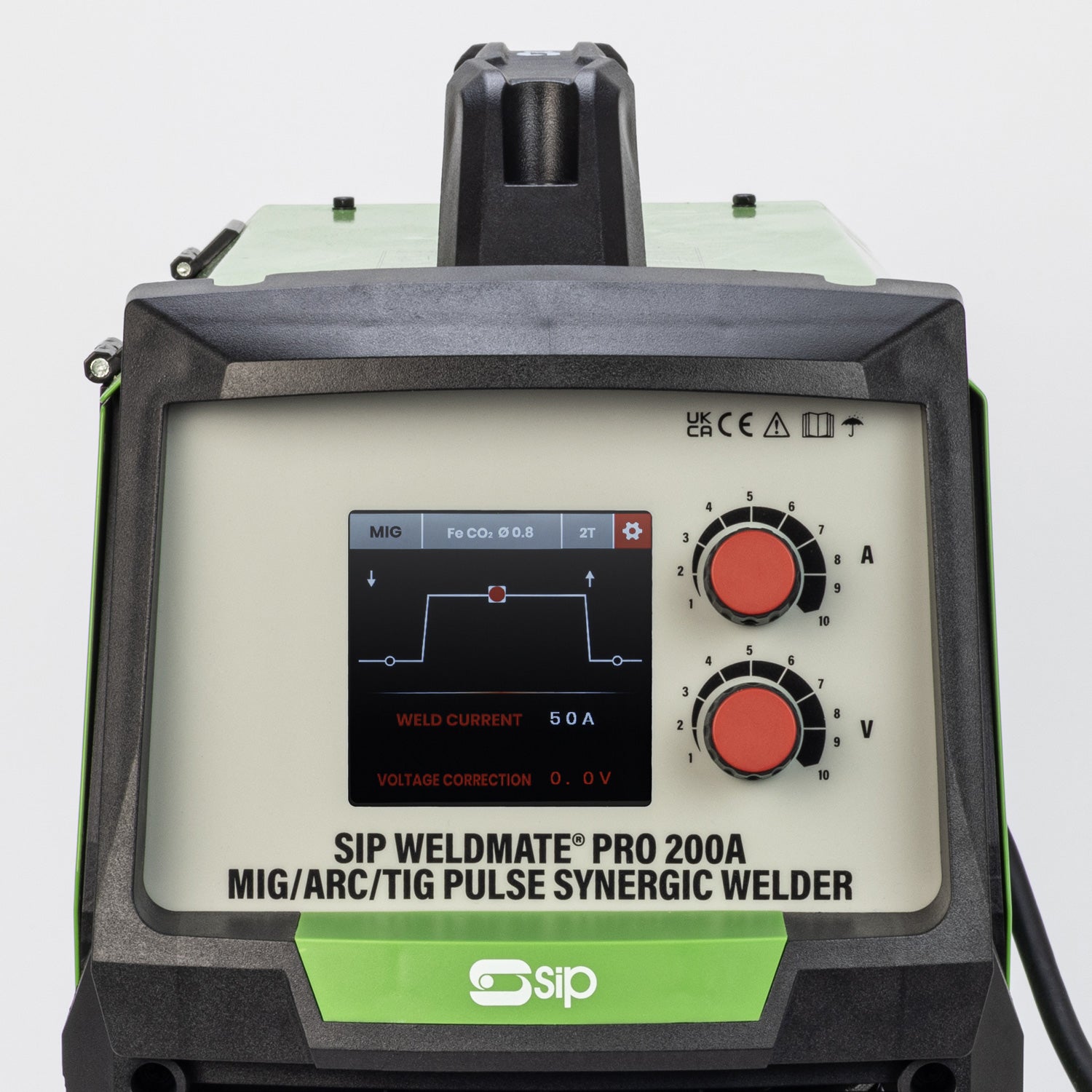

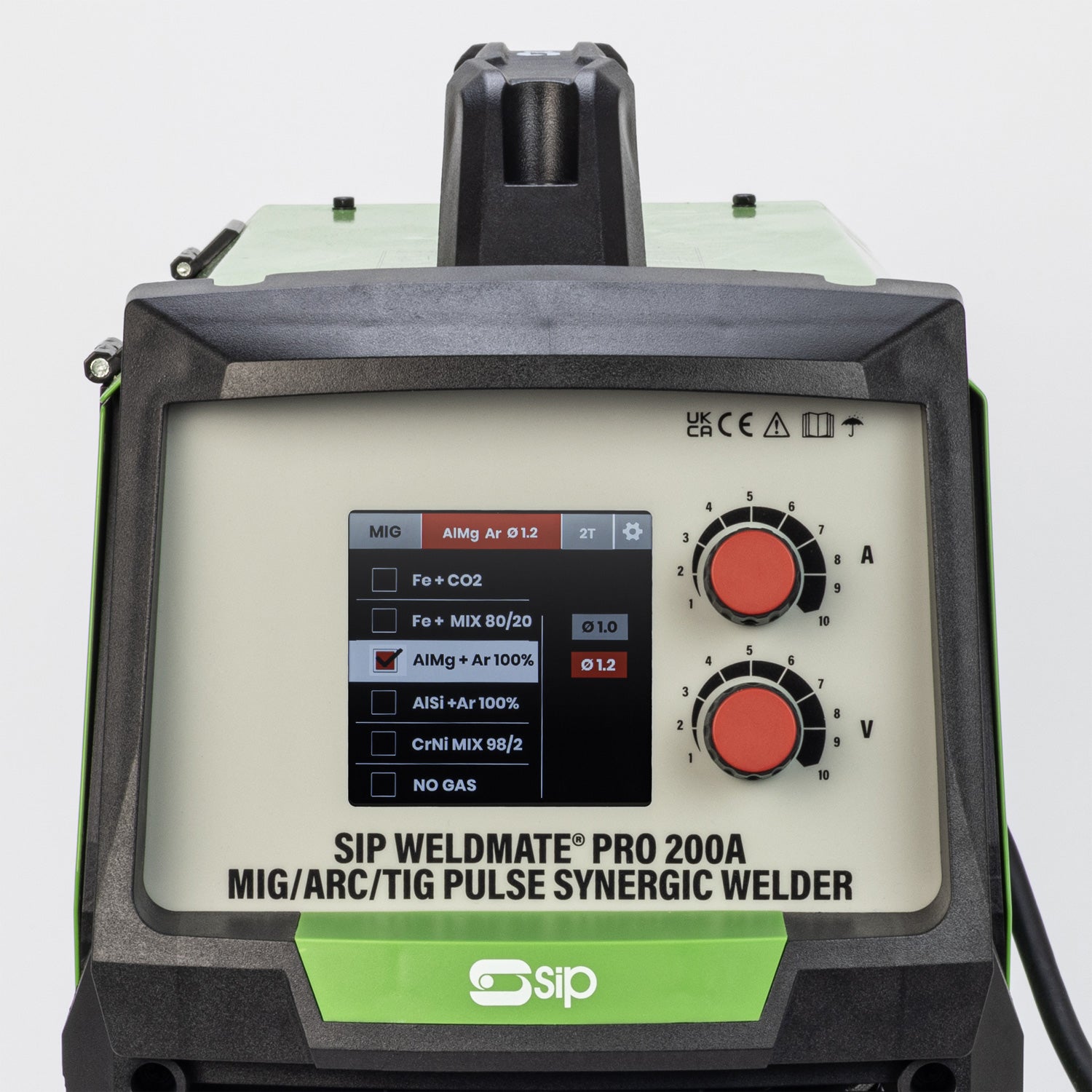

LCD screen with infinitely variable controls to select functions

SIP 05735 WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Welder

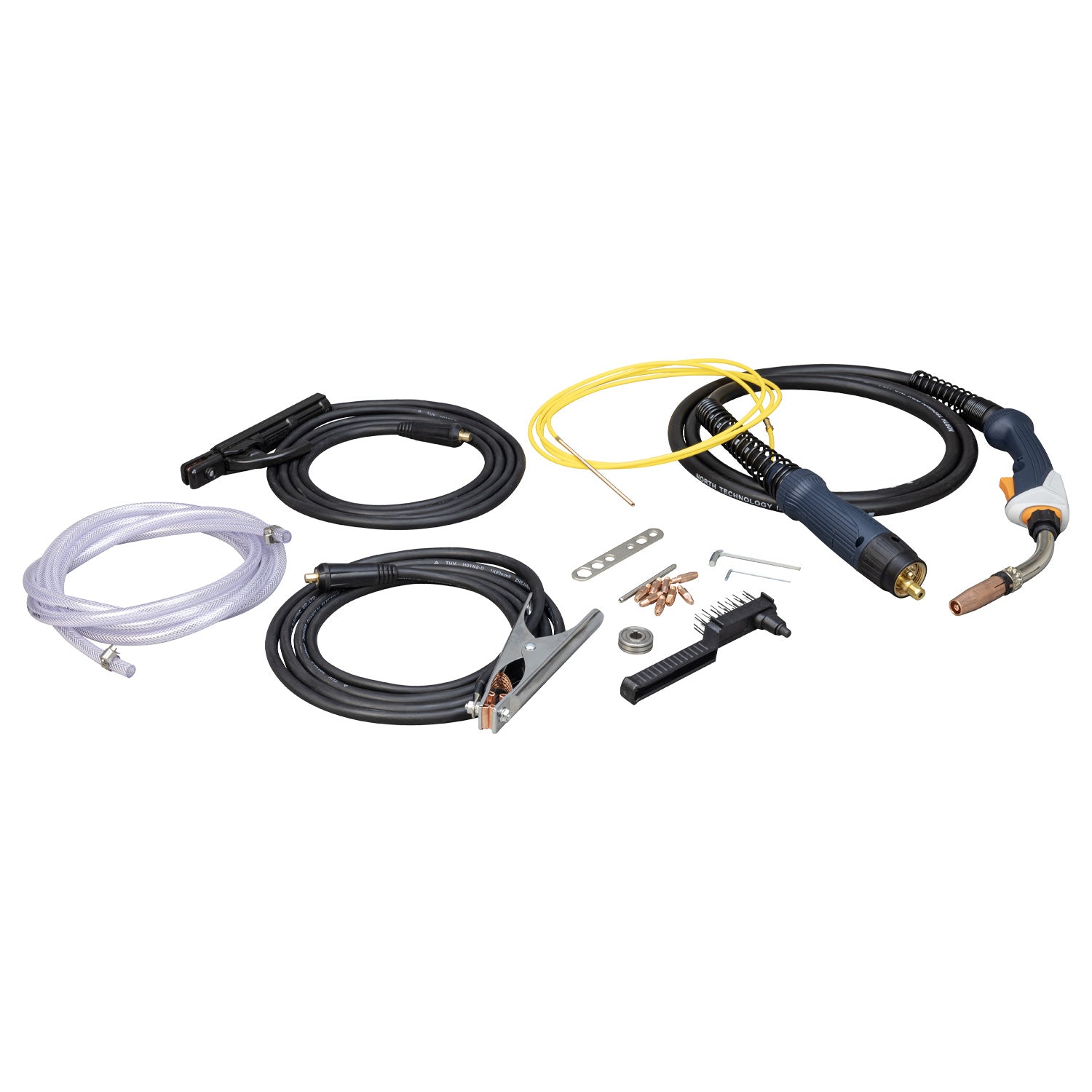

1x SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder (230v/16A), 1x 3mtr Euro MIG torch with mild steel and aluminium wire liners, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3tr gas hose with clamps, 2x feed rollers, 8x contact tips, 1x torch spanner, 2x hex keys and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended).
