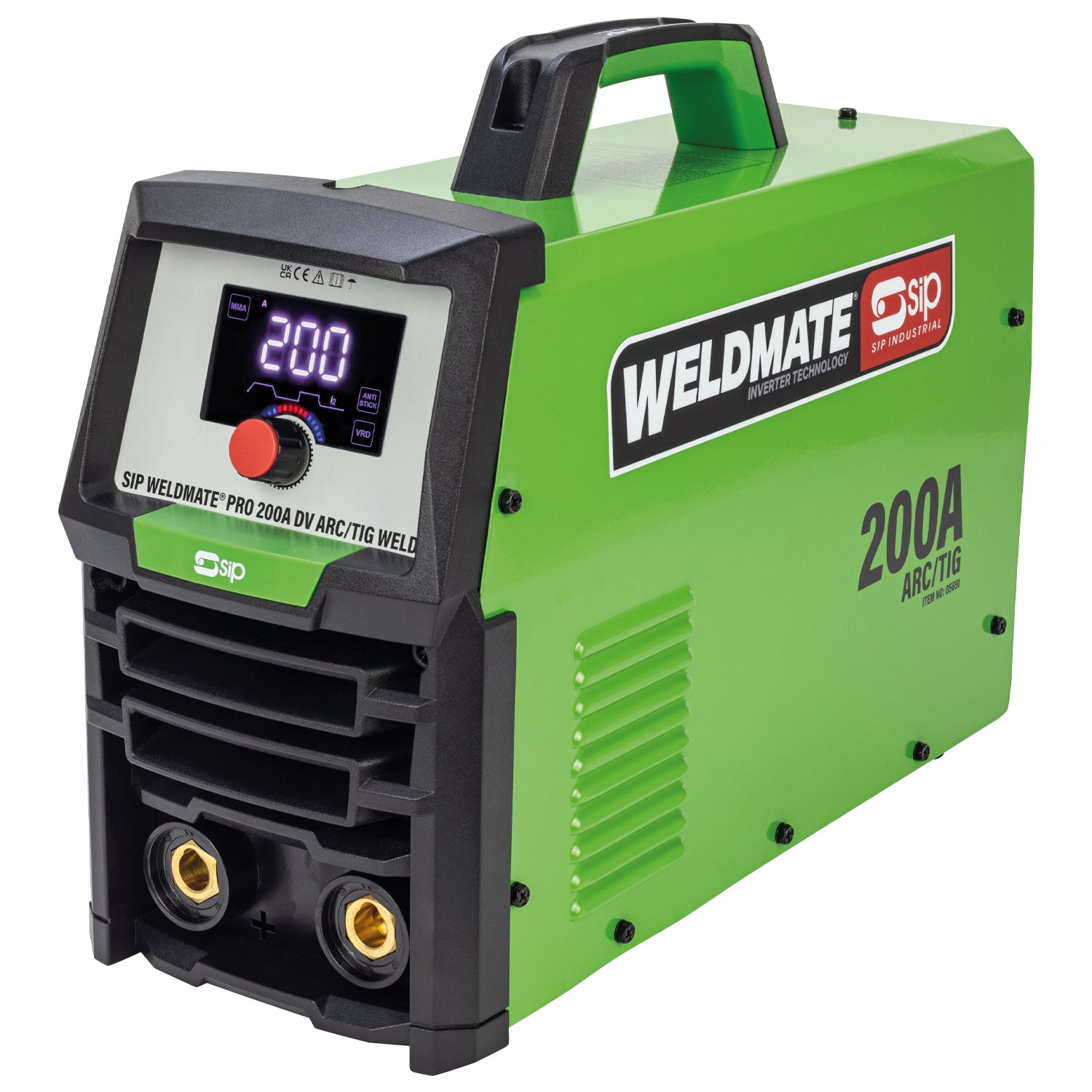

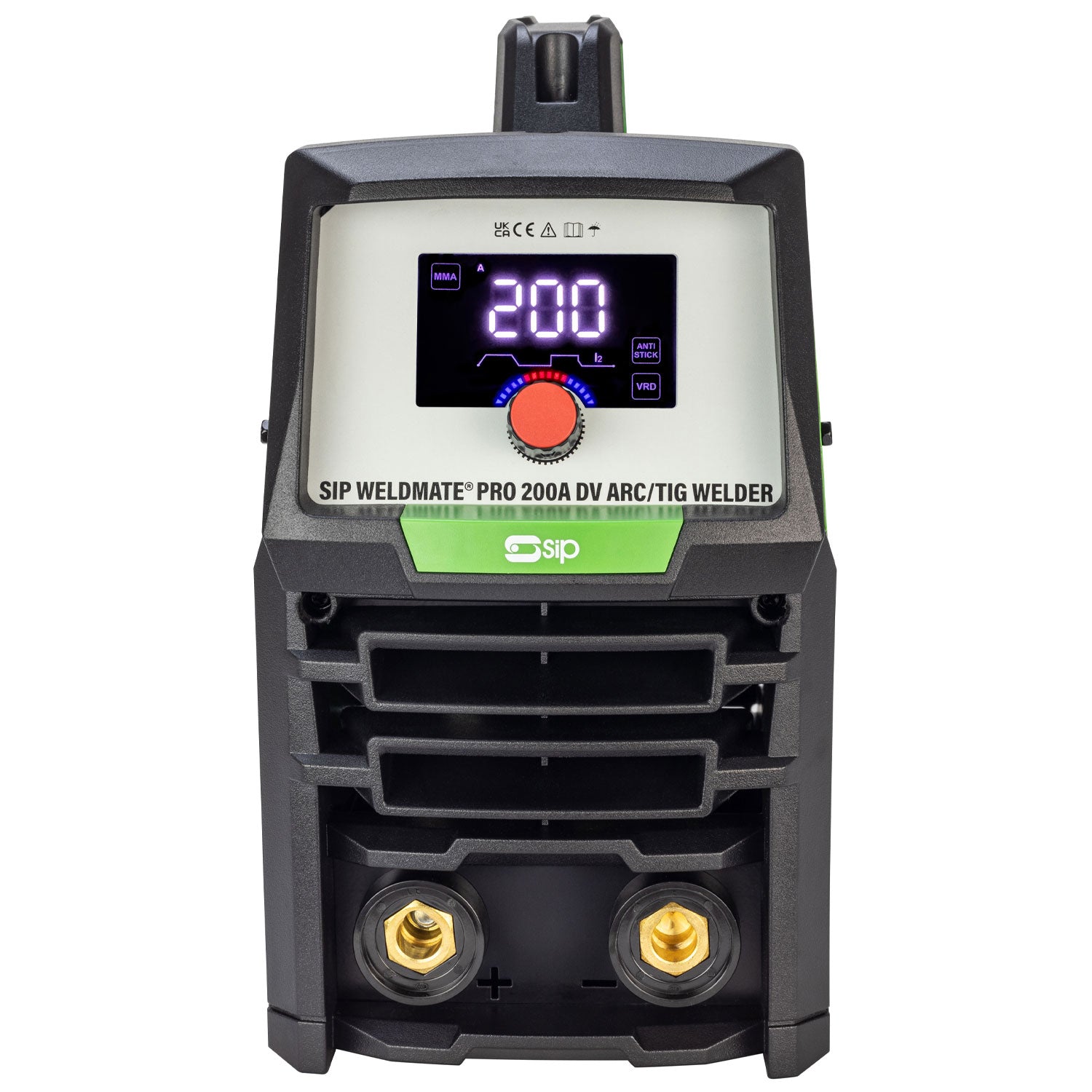

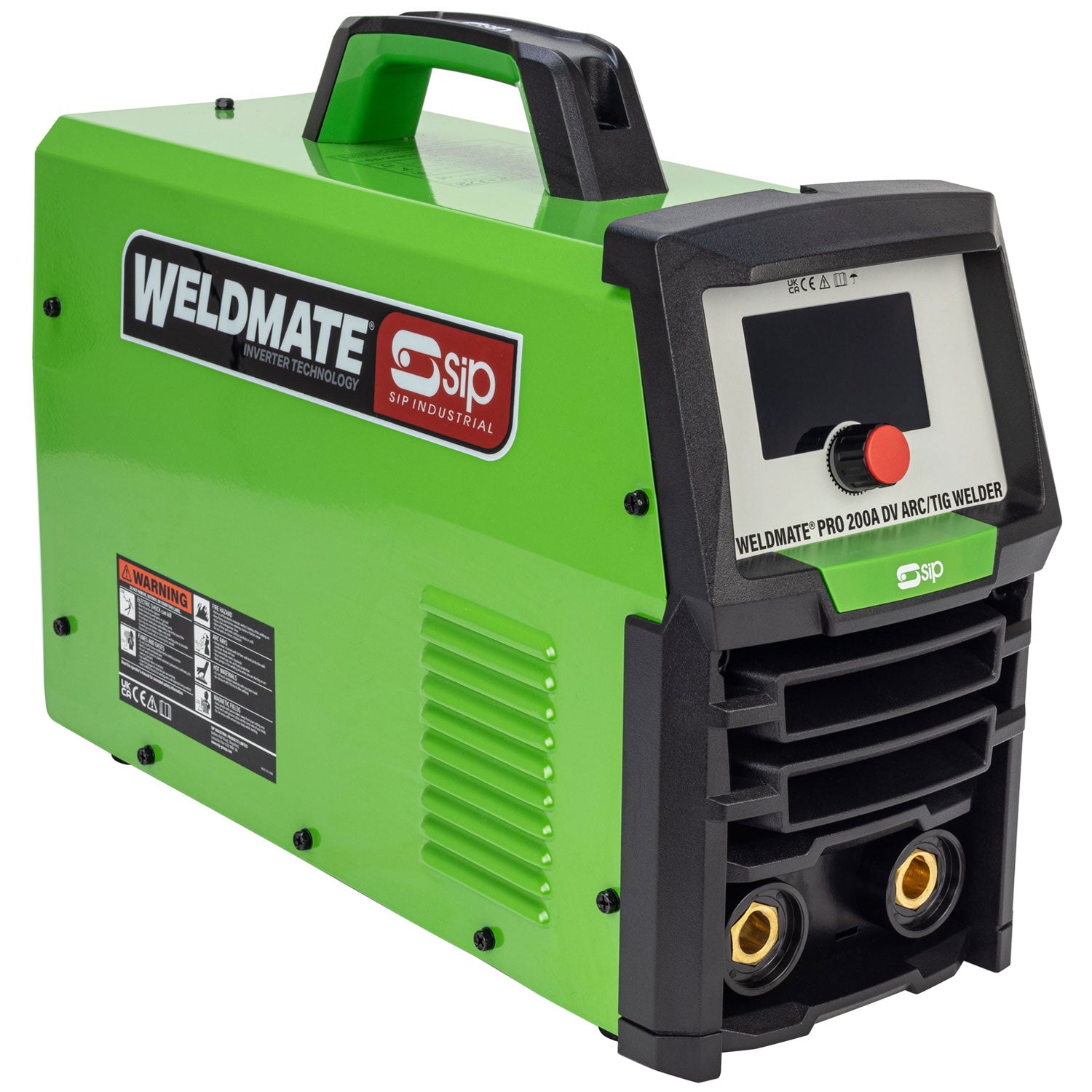

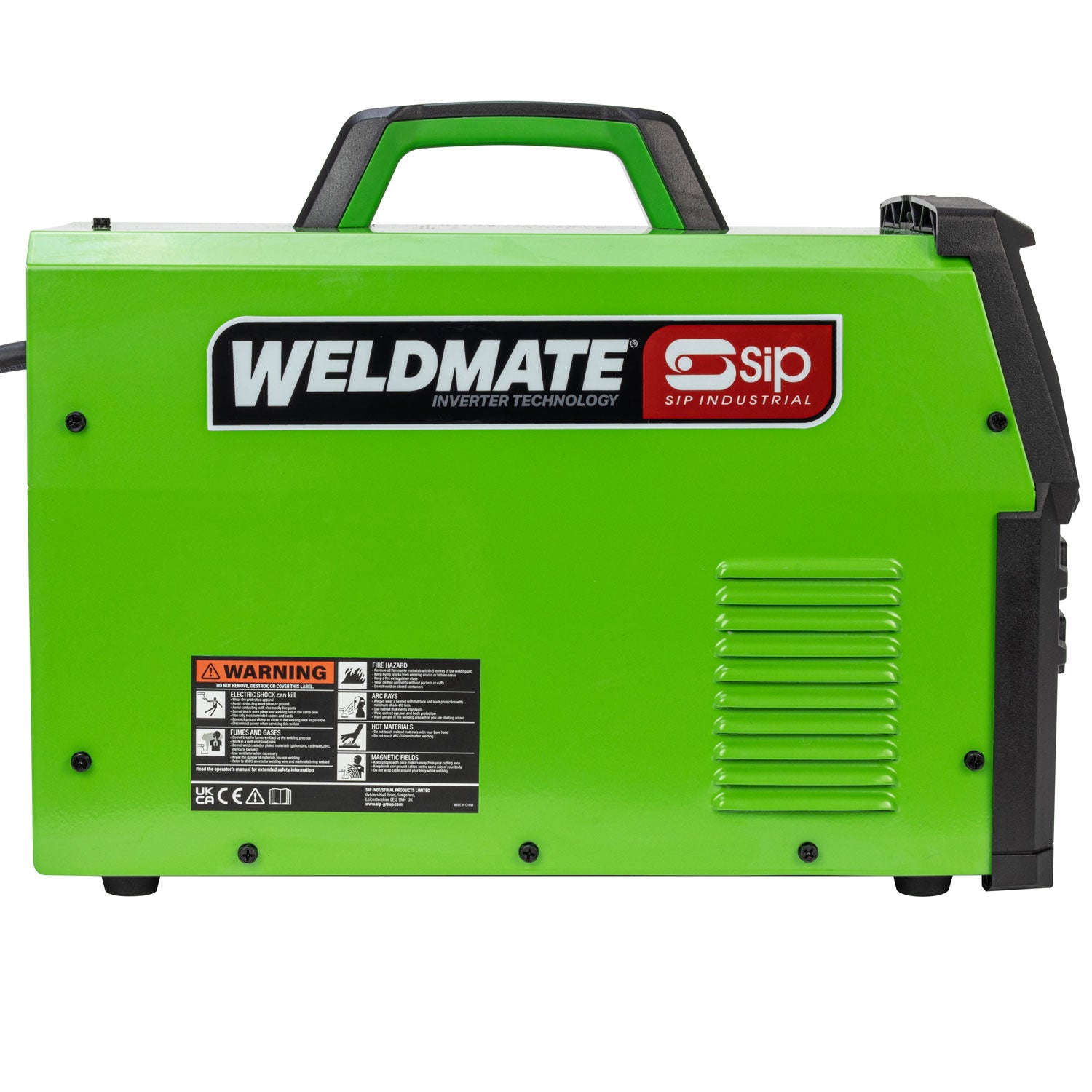

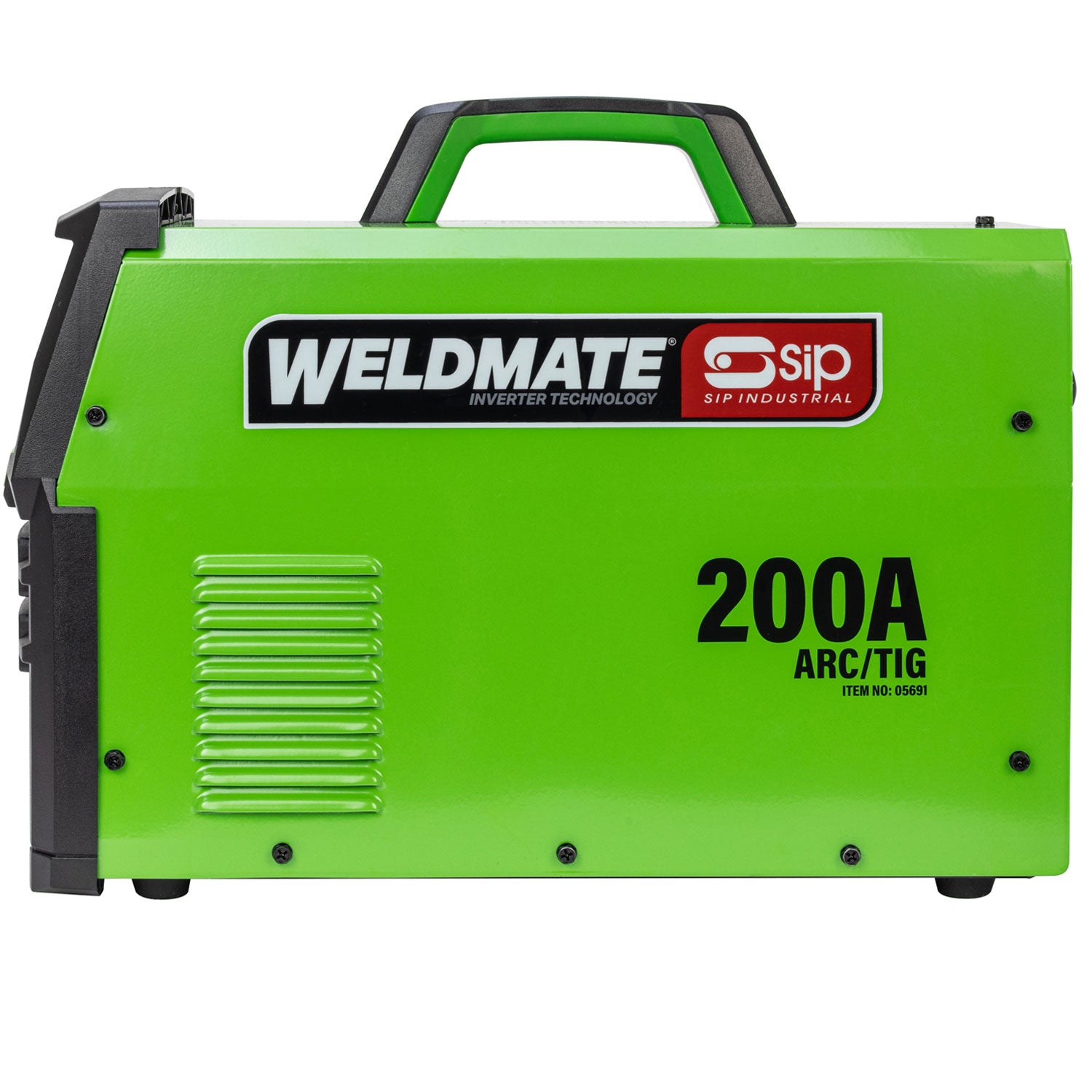

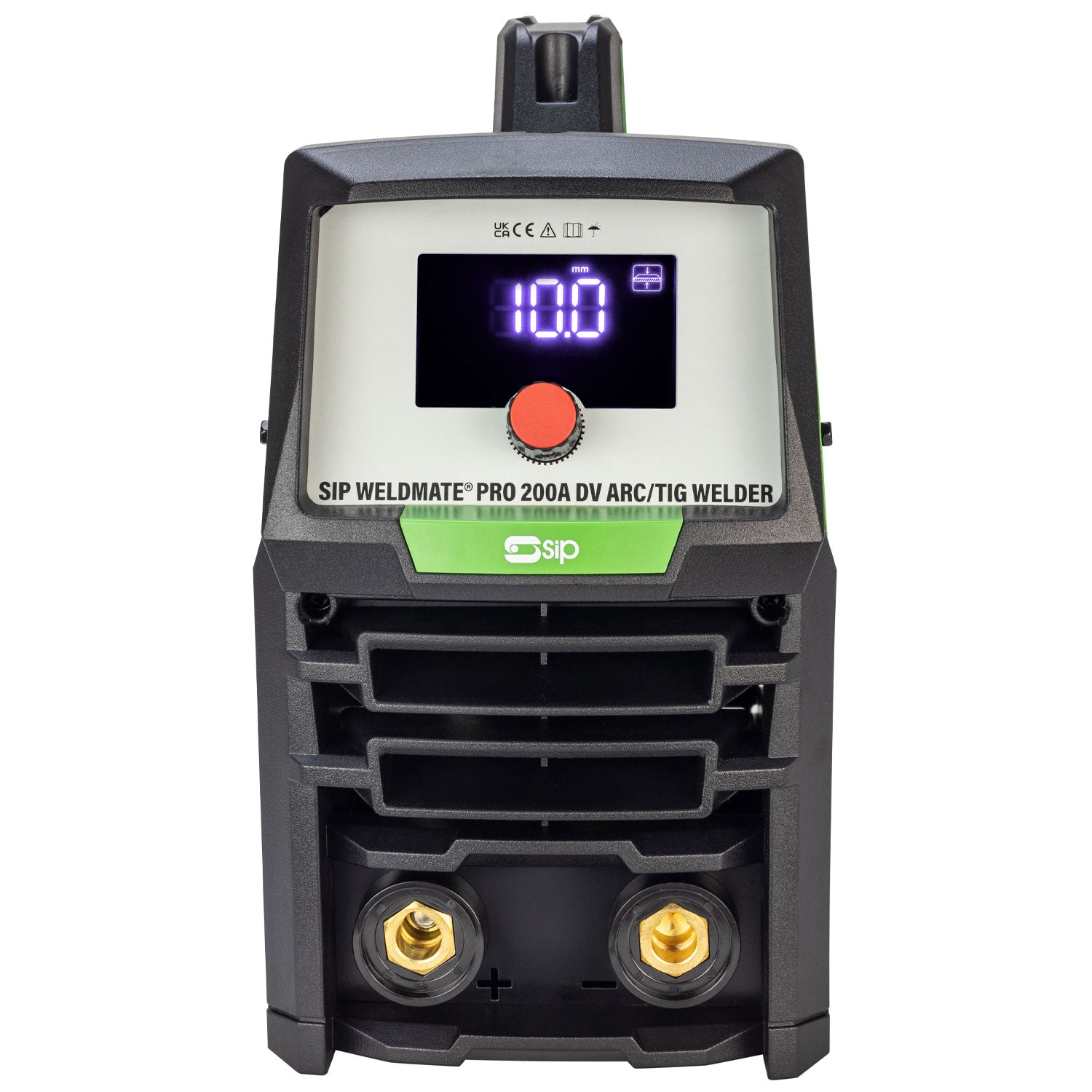

SIP 05691 WELDMATE® PRO 200A DV ARC/TIG Inverter Welder

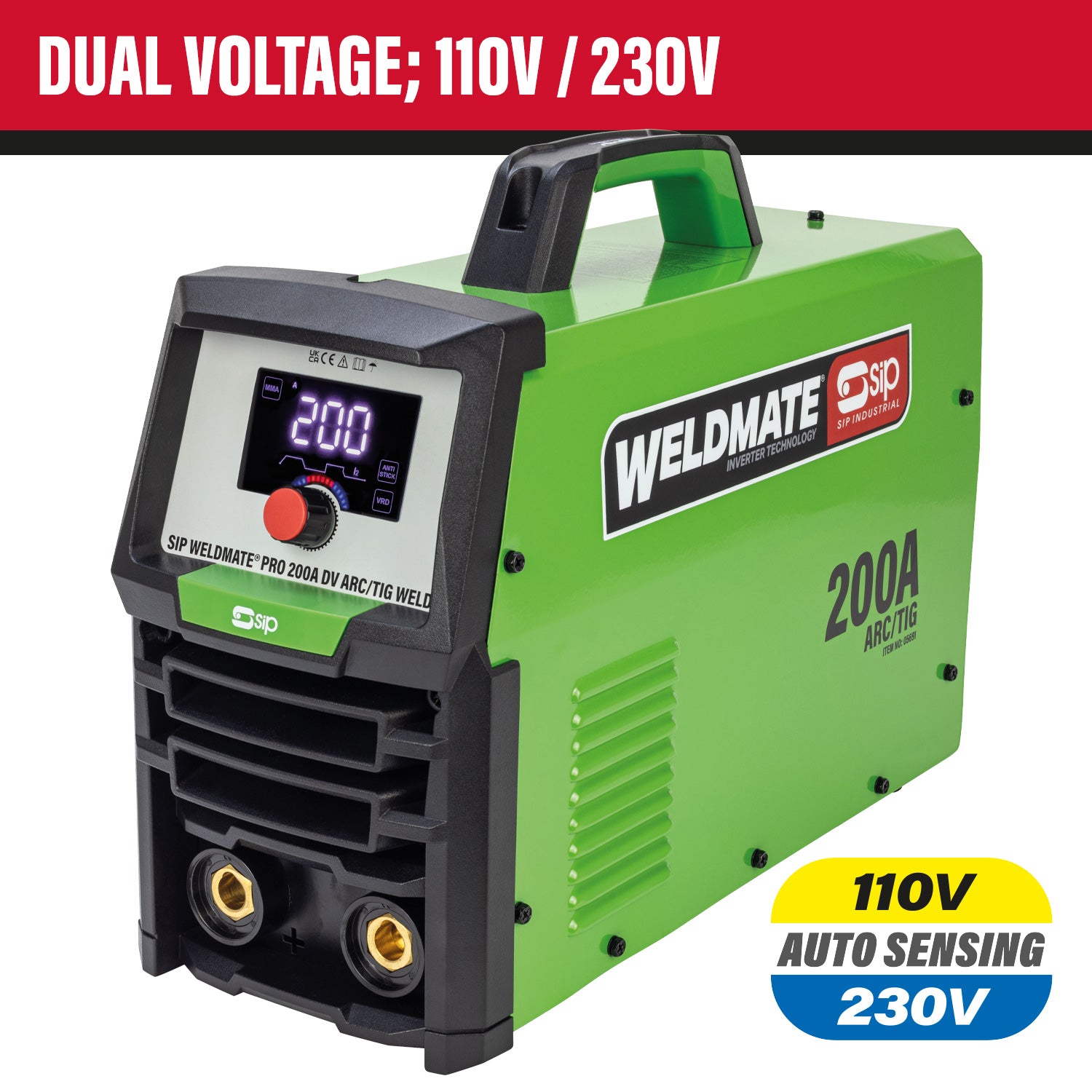

The SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder is a dual process inverter welder with dual voltage functionality. Ideal for use in professional fabrication workshops and onsite environments, this welder can be powered from either a 230v/16A or 110v/16A supply.

Powerful, compact and lightweight, this inverter welder also features Synergic Control which adjusts the welding current output according to the electrode diameter or welding material thickness selected for optimal penetration and bead formation.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

ITEM NO. 05691

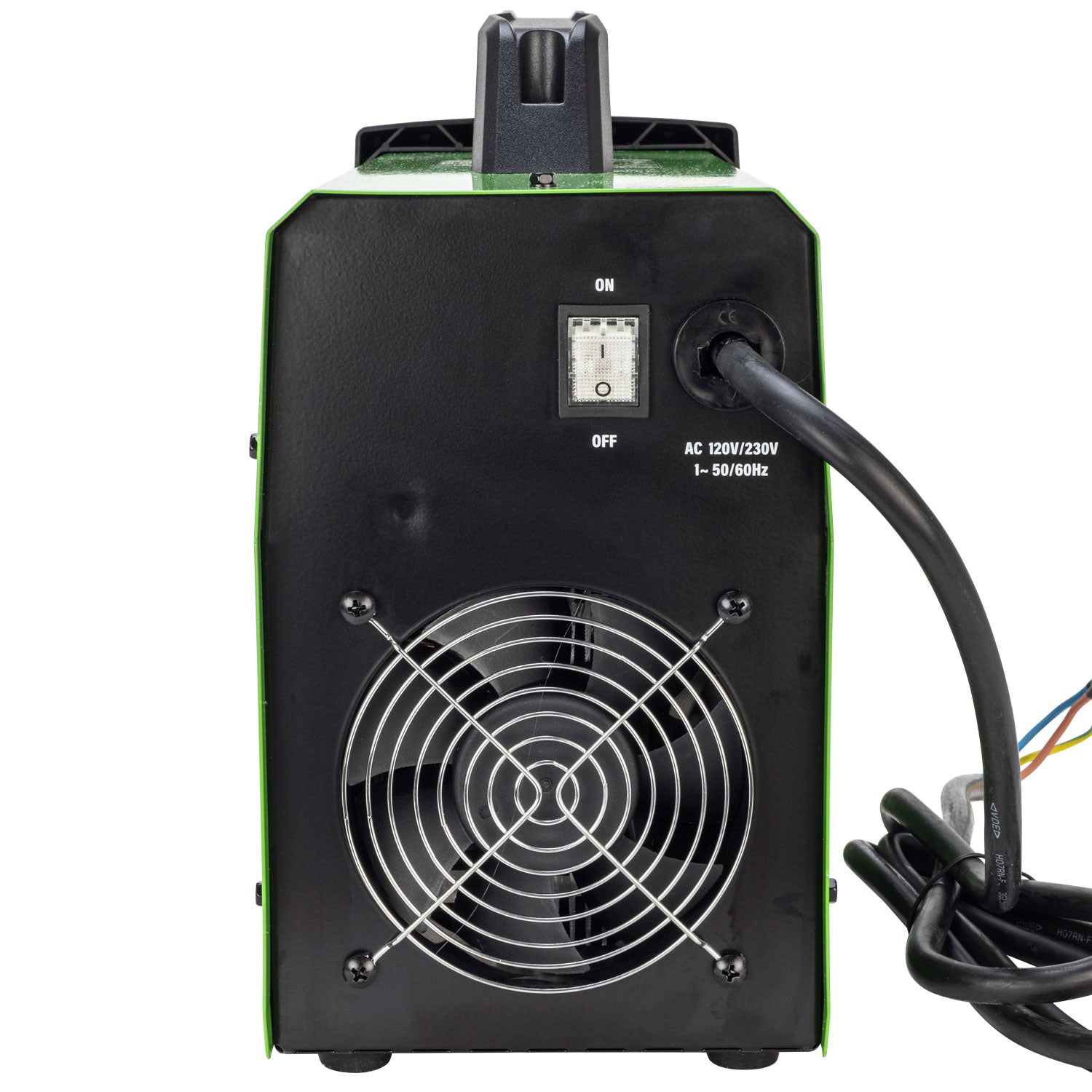

Input Supply: 230v (16A) / 110v (16A)
Output Current: ARC; 10A - 200A (230v) / 10A - 100A (110v) / TIG; 10A - 200A (230v) / 10A - 100A (110v)
Output Voltage: ARC; 20.4v - 28v (230v) / 20.4v - 24v (110v) / TIG; 20.4v - 28v (230v) / 20.4v - 24v (110v)
Duty Cycle @ 20°C: ARC; 200A @ 40% (230v) / 100A @ 20% (110v) / TIG; 200A @ 40% (230v) / 100A @ 20% (110v)
Welding Material Thickness: 1.5mm - 10.5mm (mild steel) (230v) / 1.5mm - 5.5mm (mild steel) (110v)
Protection / Insulation F

Dual process ARC/TIG welder with 230v and 110v supply outputs

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

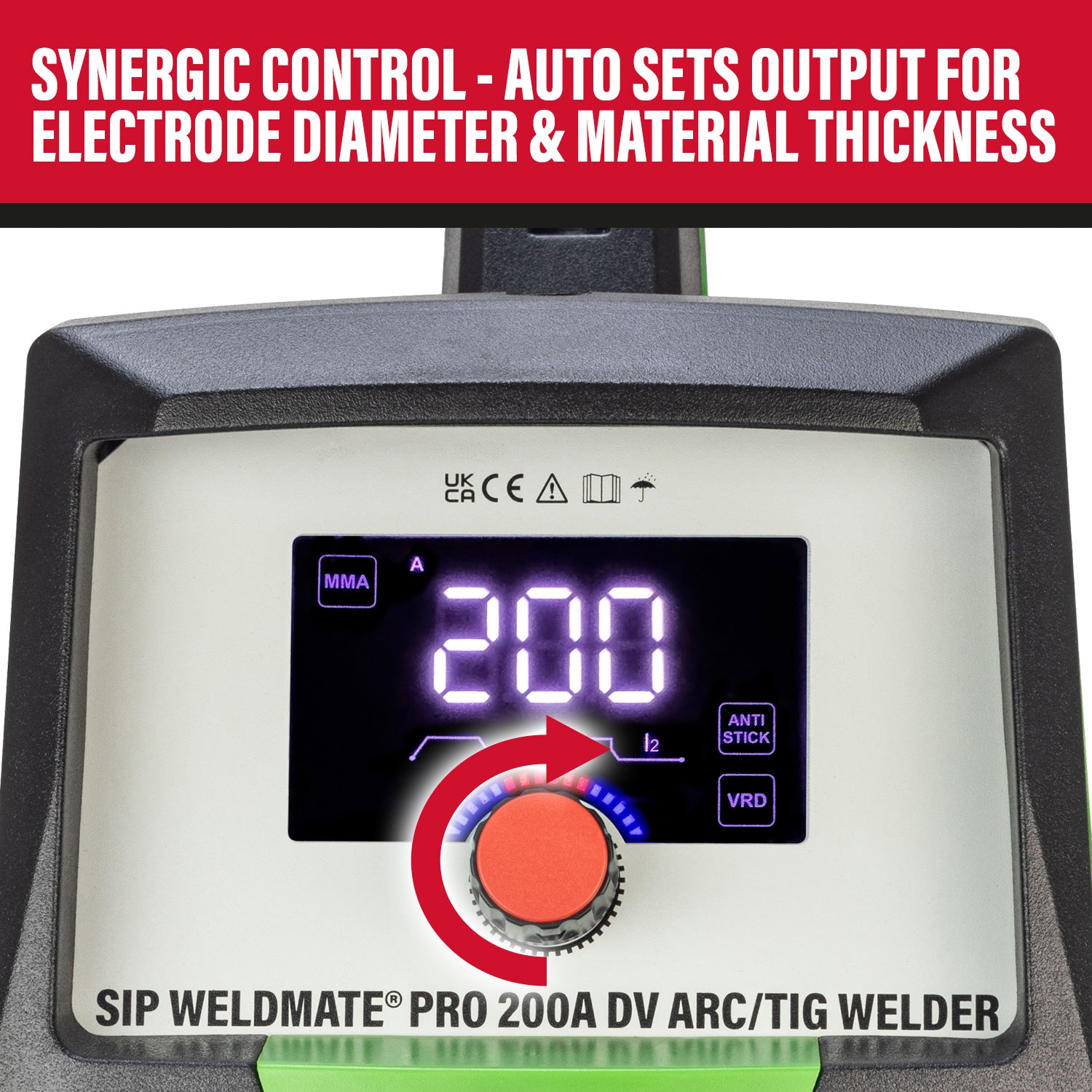

Synergic control auto sets output for electrode diameter and material thickness

Infinitely variable dial offers a smoother stepless output adjustment

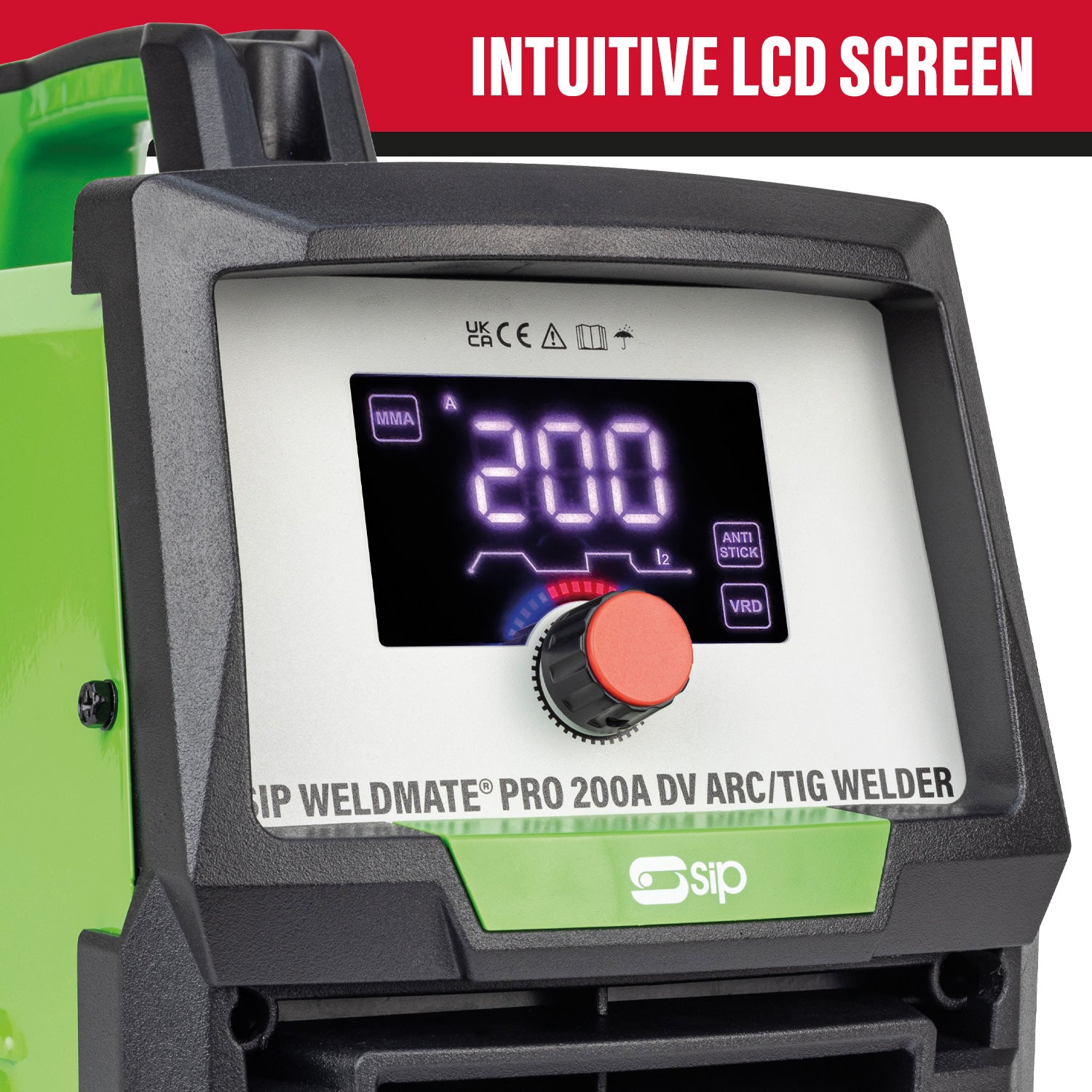

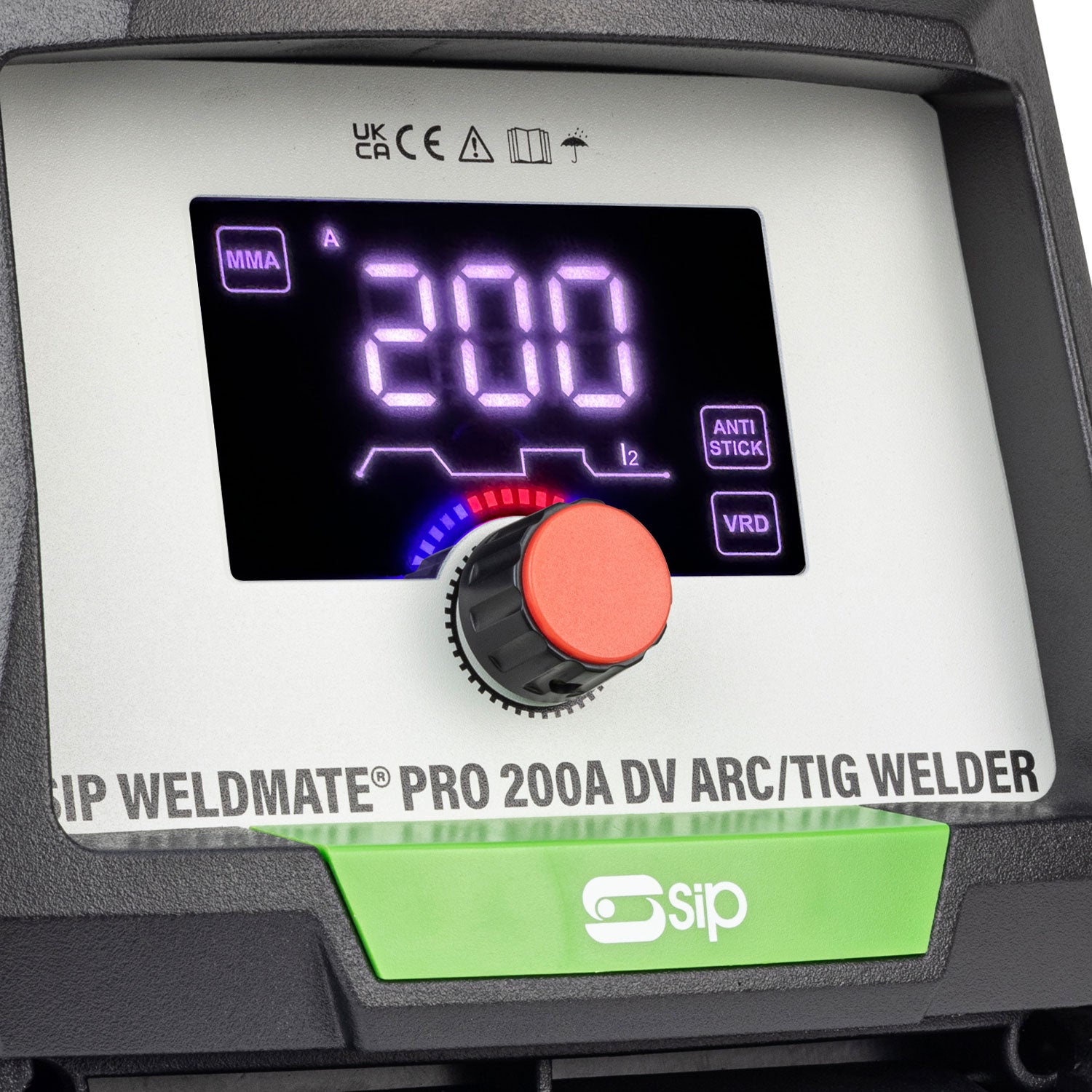

Intuitive LCD screen for setting output and selecting welding functions

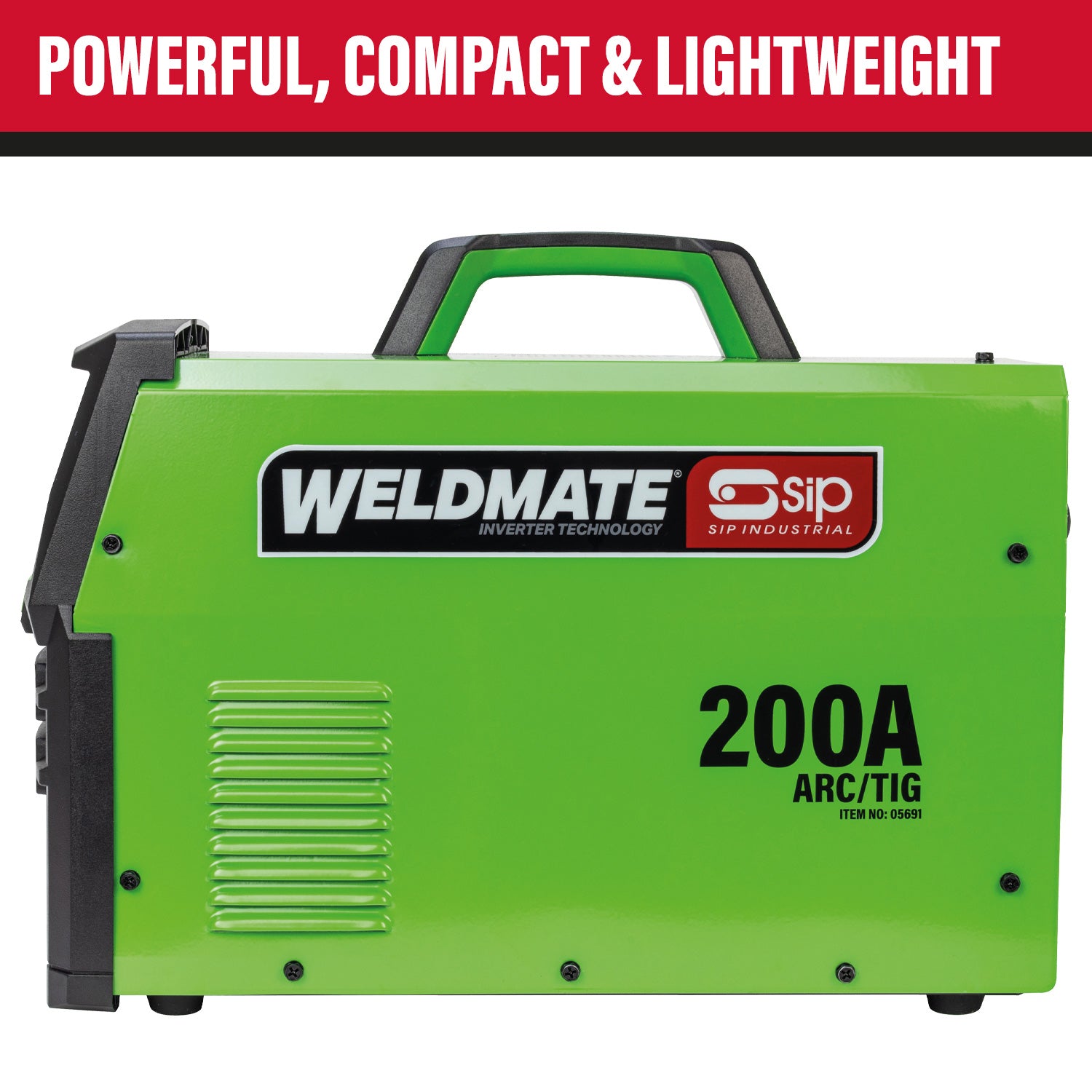

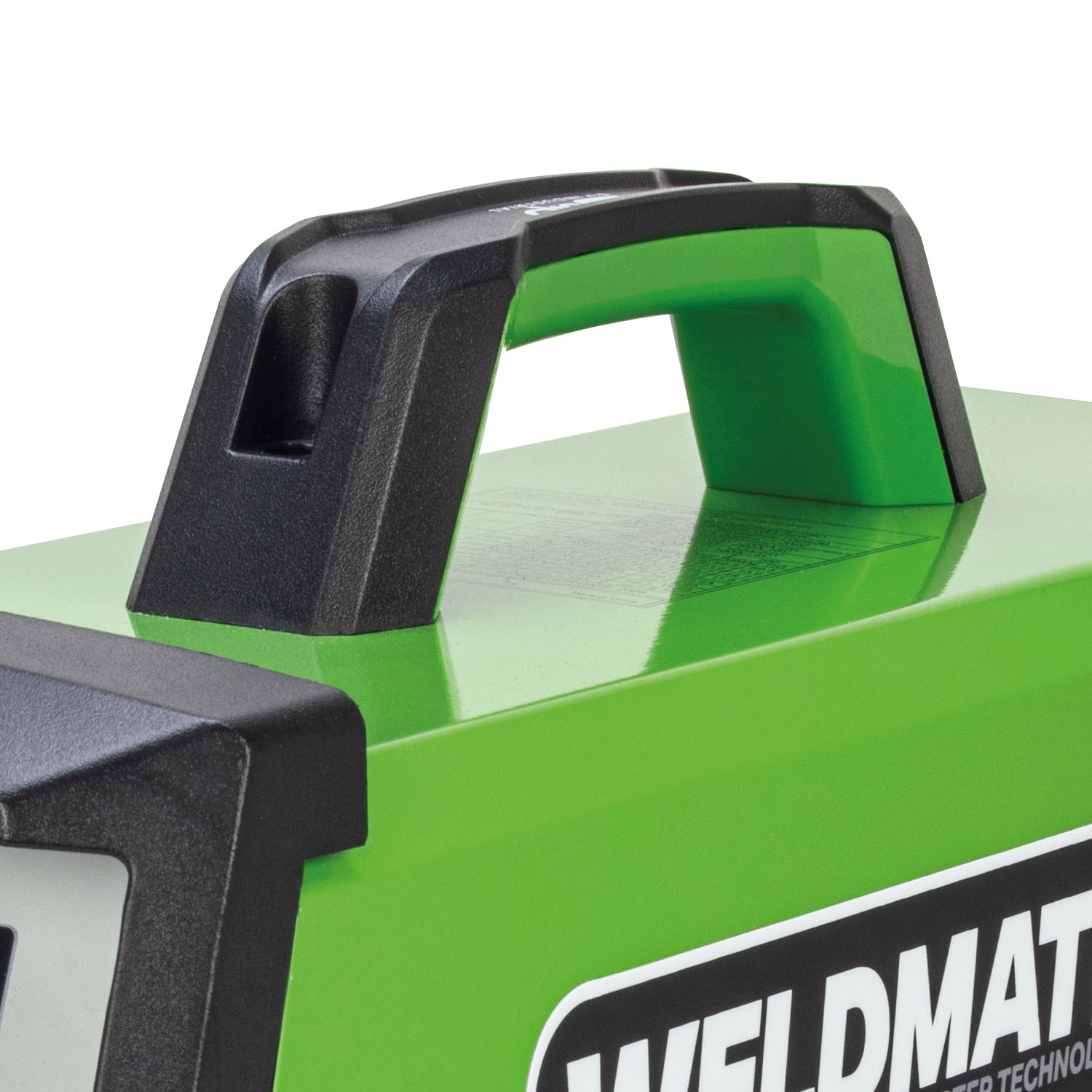

Compact and lightweight design for easy work area movement

SIP 05691 WELDMATE® PRO 200A DV ARC/TIG Inverter Welder

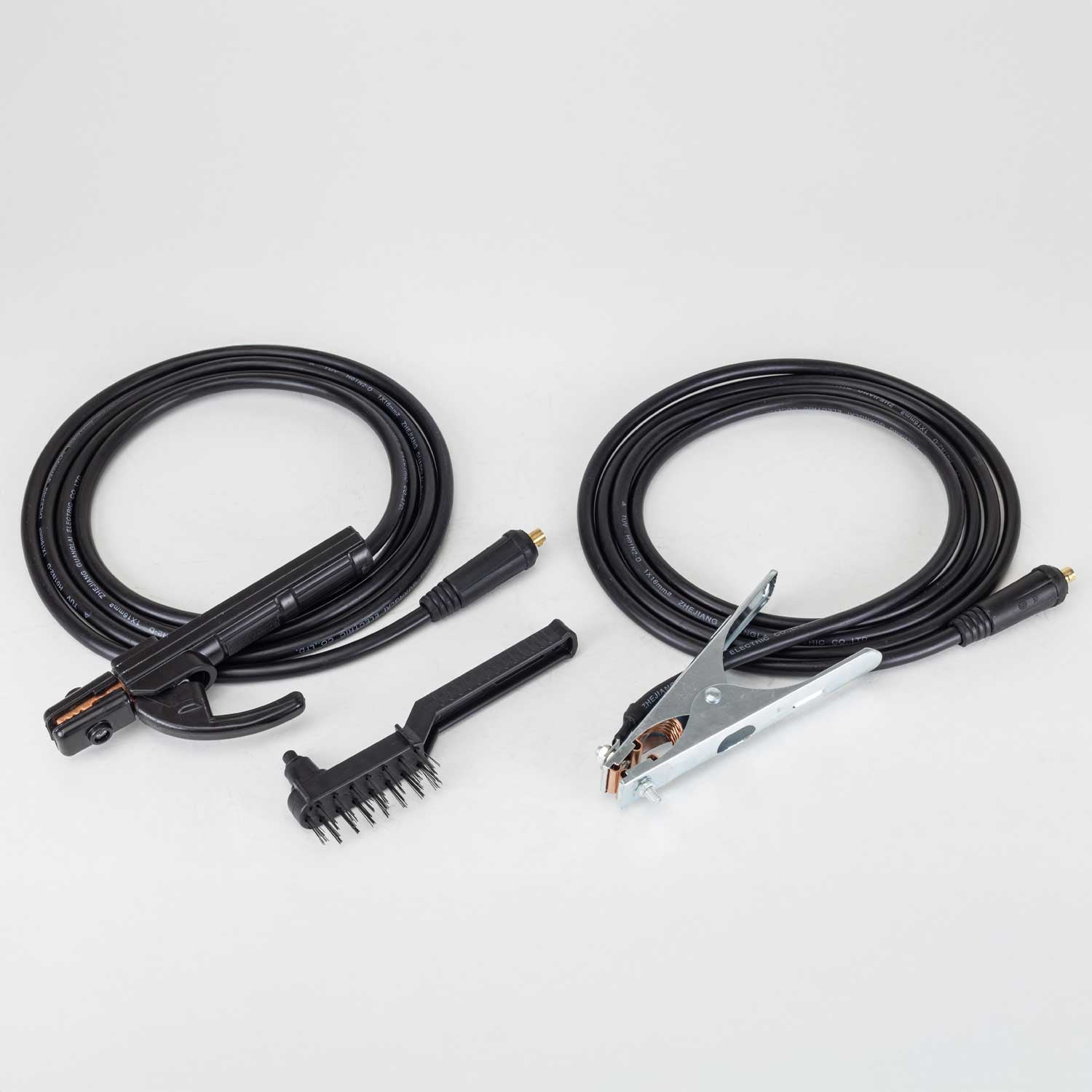

1x SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder (230v/16A, 110v/16A), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush. TIG torch sold separately (Item 08206A recommended).
