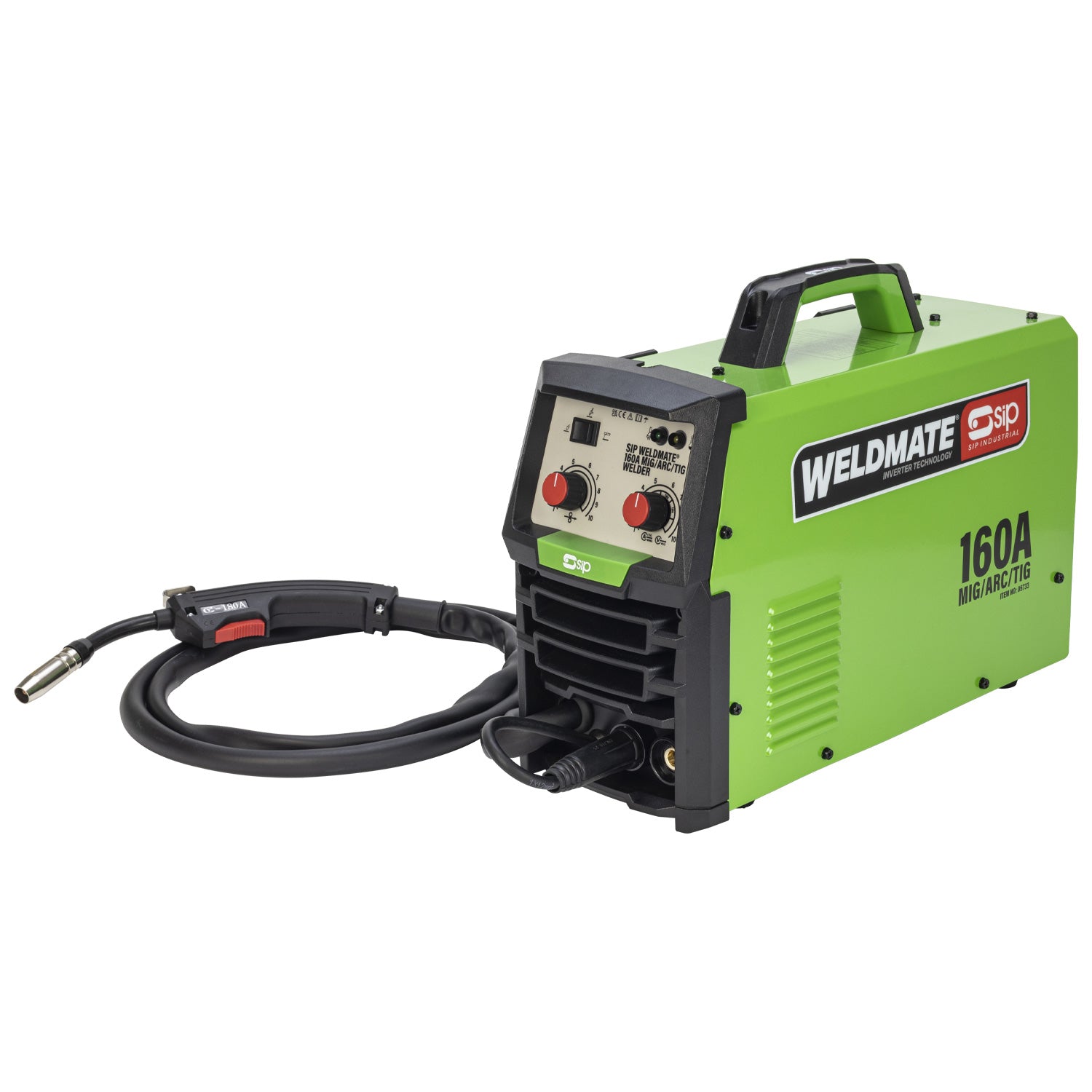

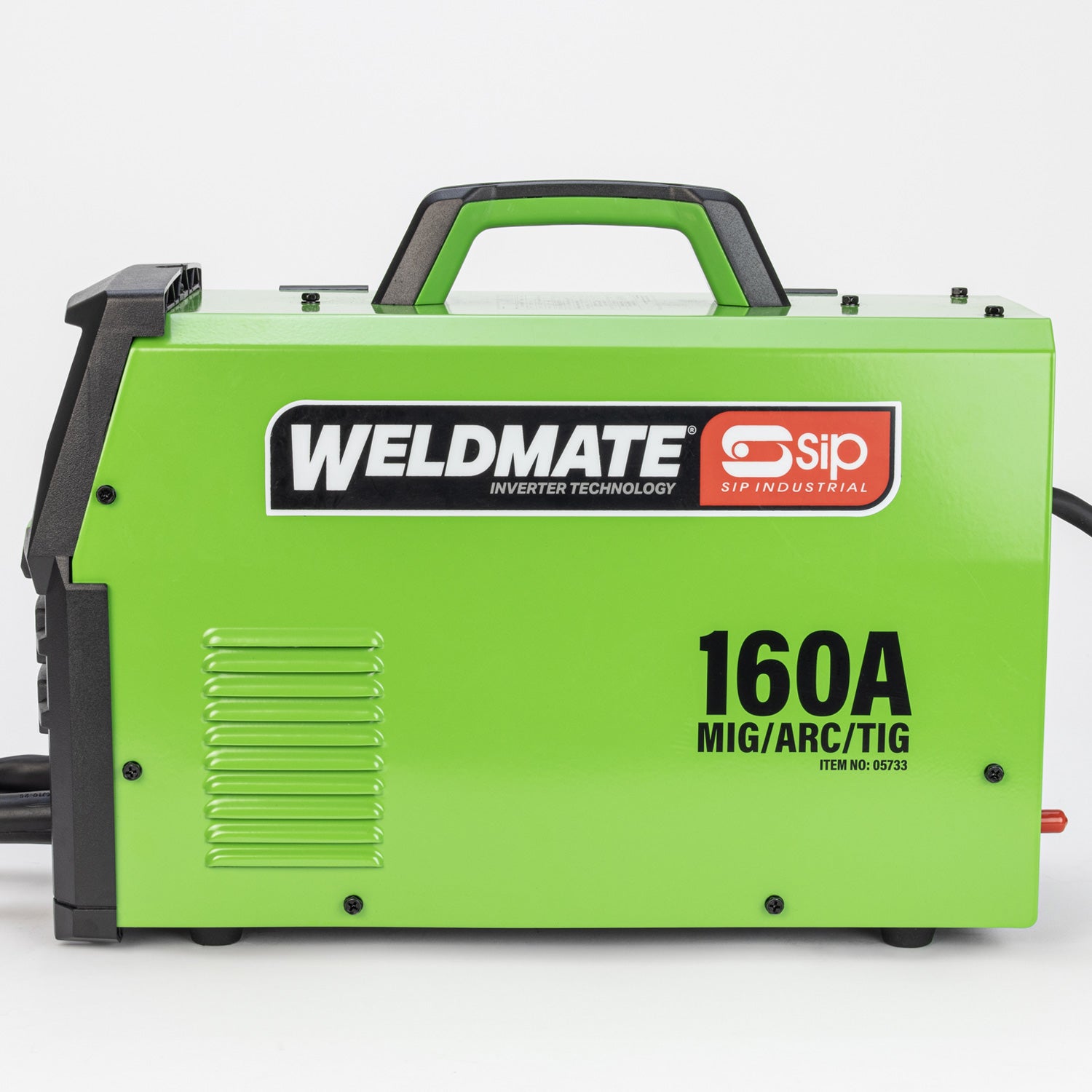

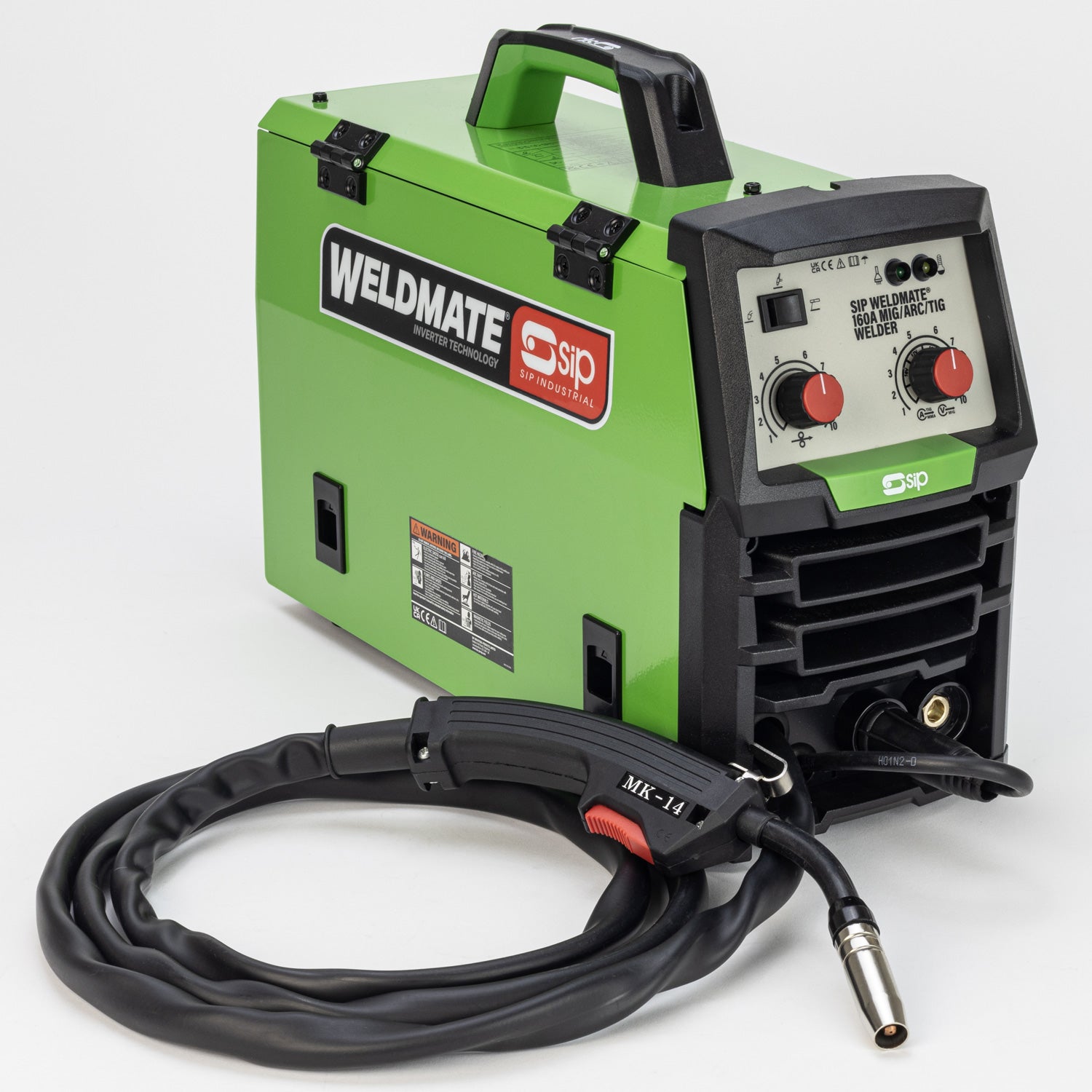

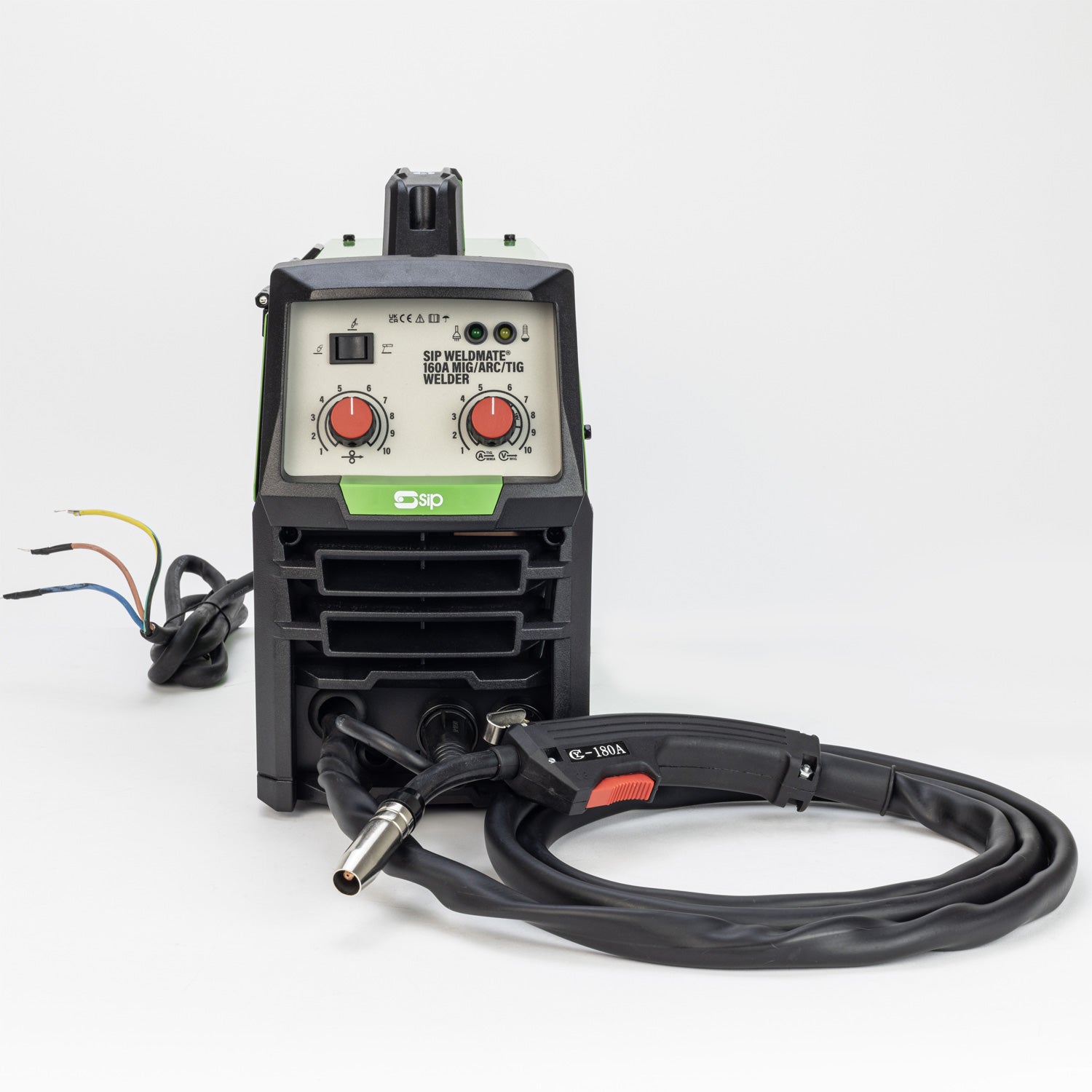

SIP 05733 WELDMATE® 160A MIG Welder

The SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications.

Supplied with all accessories needed to weld straight from the box, this welder also performs gasless MIG welding for added flexibility.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

ITEM NO. 05733
Input Supply: 230v (16A)
Output Voltage: 15v - 22v (MIG) / 20.8v - 25.6v (ARC) / 10.8v - 15.6v (TIG)
Output Current: 20A - 160A (MIG) / 20A - 140A (ARC) / 20A - 140A (TIG)
Duty Cycle @ 40°C: 160A @ 15% (MIG) / 140A @ 15% (ARC) / 140A @ 15% (TIG)
Wire Diameter: ⌀ 0.8mm - 0.9mm

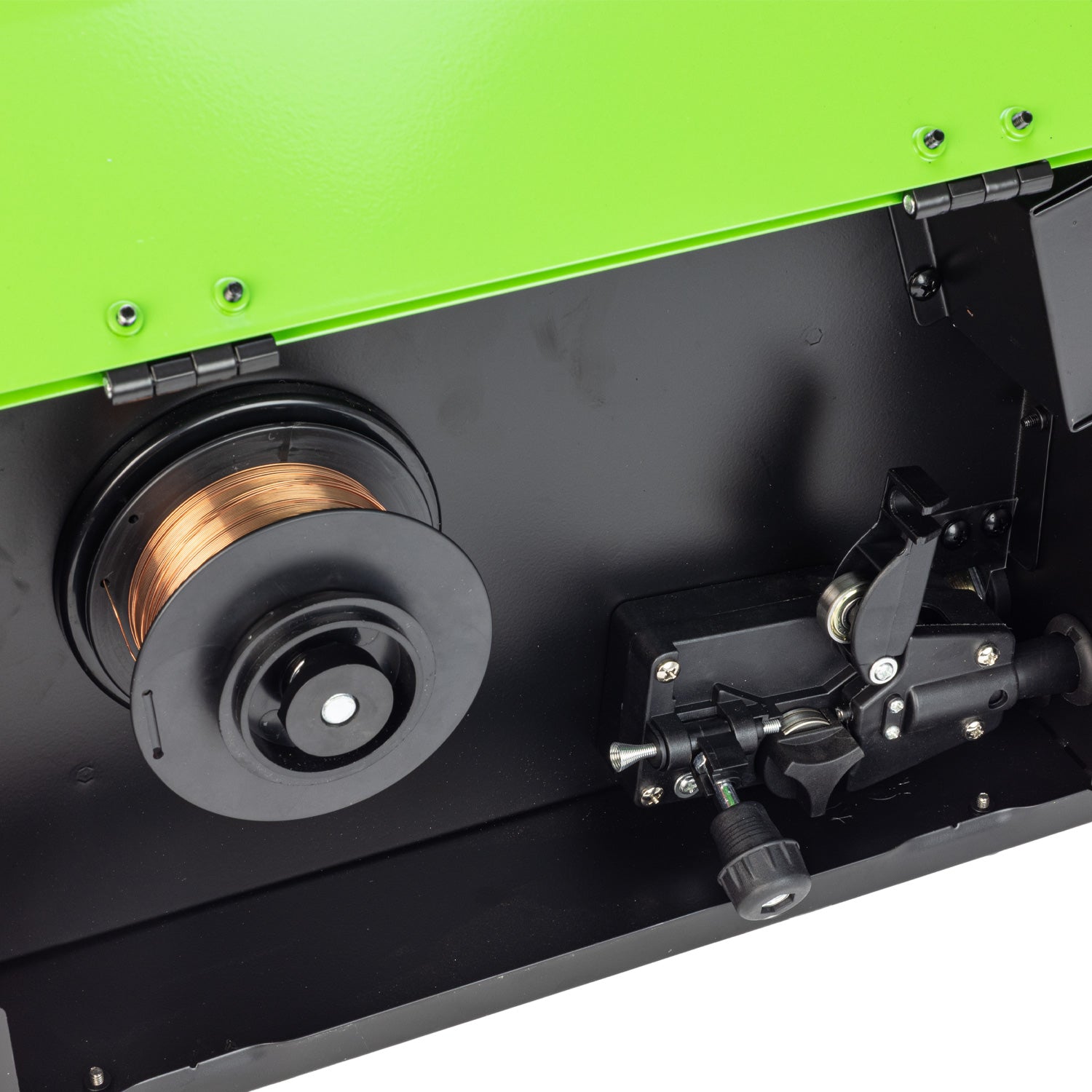

Wire Spool Size: 0.7kg, 5kg
Welding Material Thickness: 0.8mm - 5.5mm (mild steel)
Protection / Insulation 21S / H

Multi-process MIG/ARC/TIG welder for greater flexibility

Also performs gasless MIG welding for added versatility

All accessories needed to weld straight from the box supplied

Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

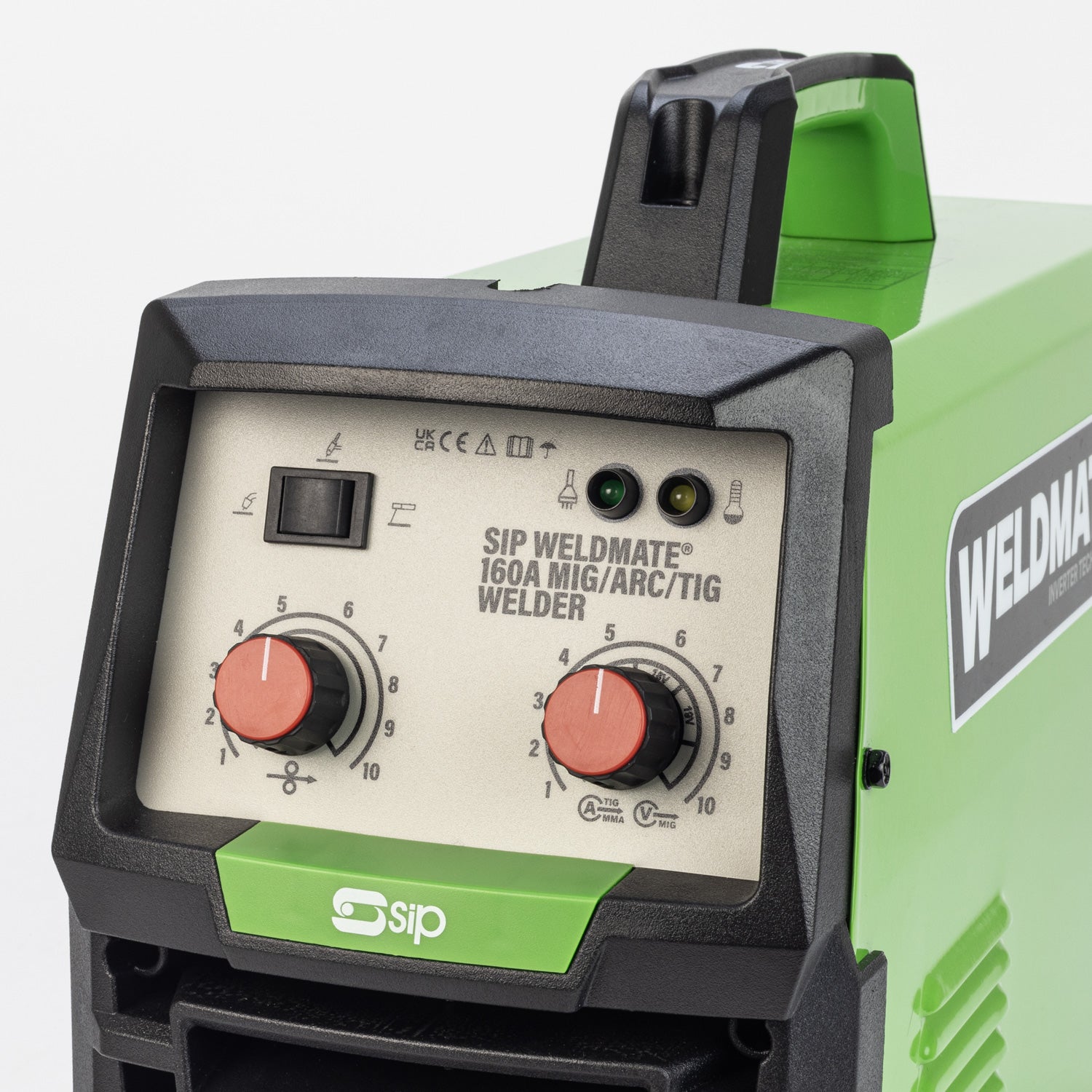

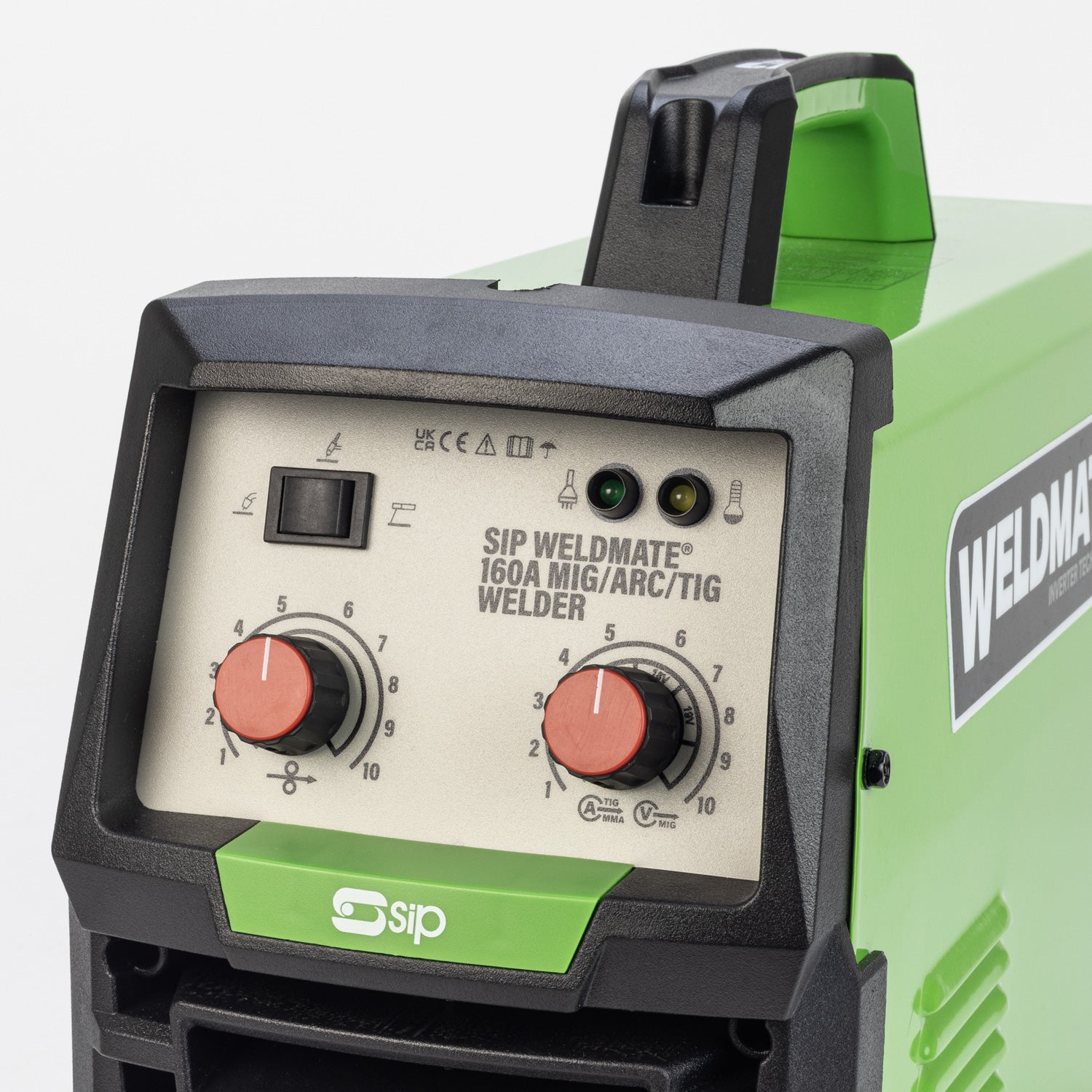

Infinitely variable dial for smoother stepless output adjustment

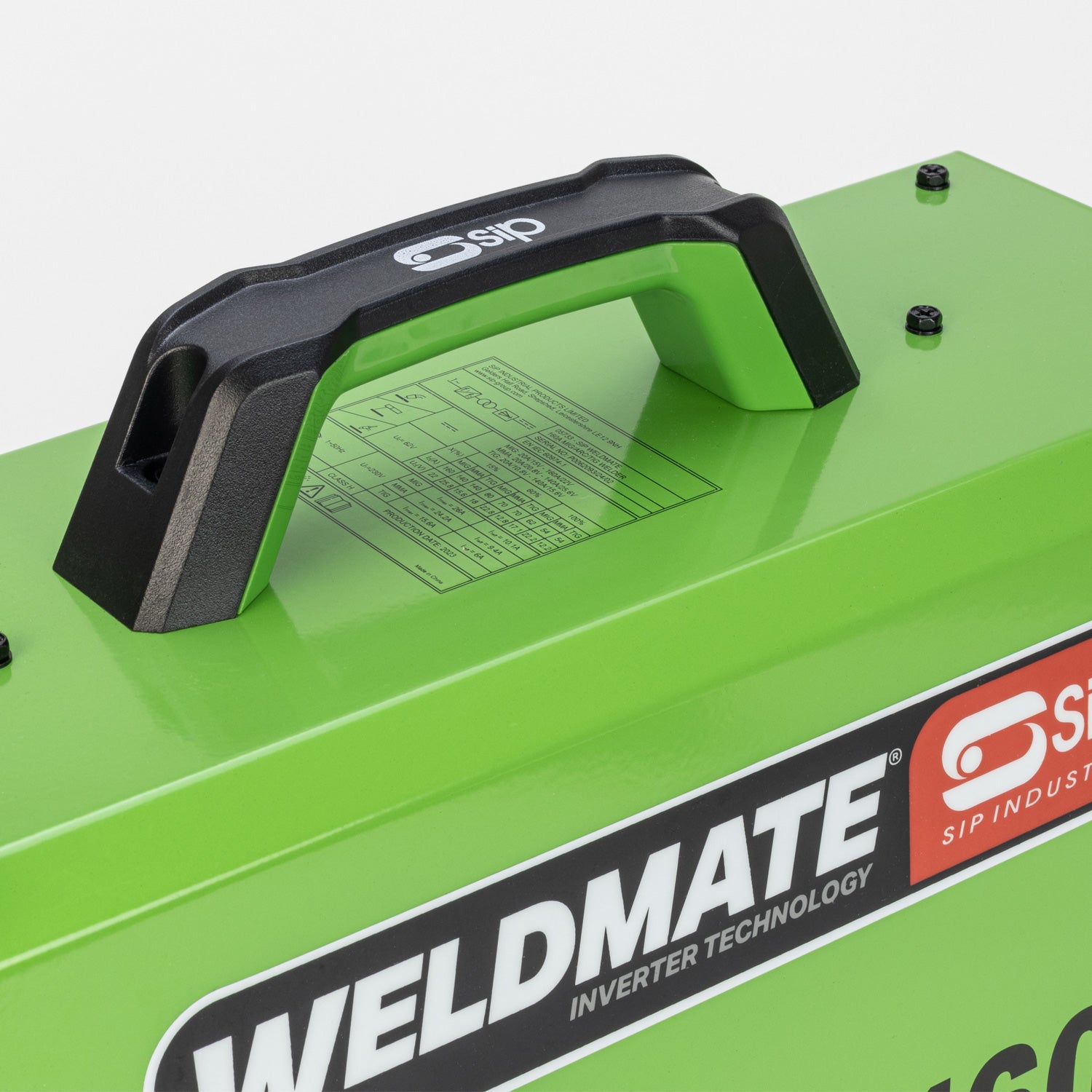

Compact and portable design for mobility around work area

SIP 05733 WELDMATE® 160A MIG Welder

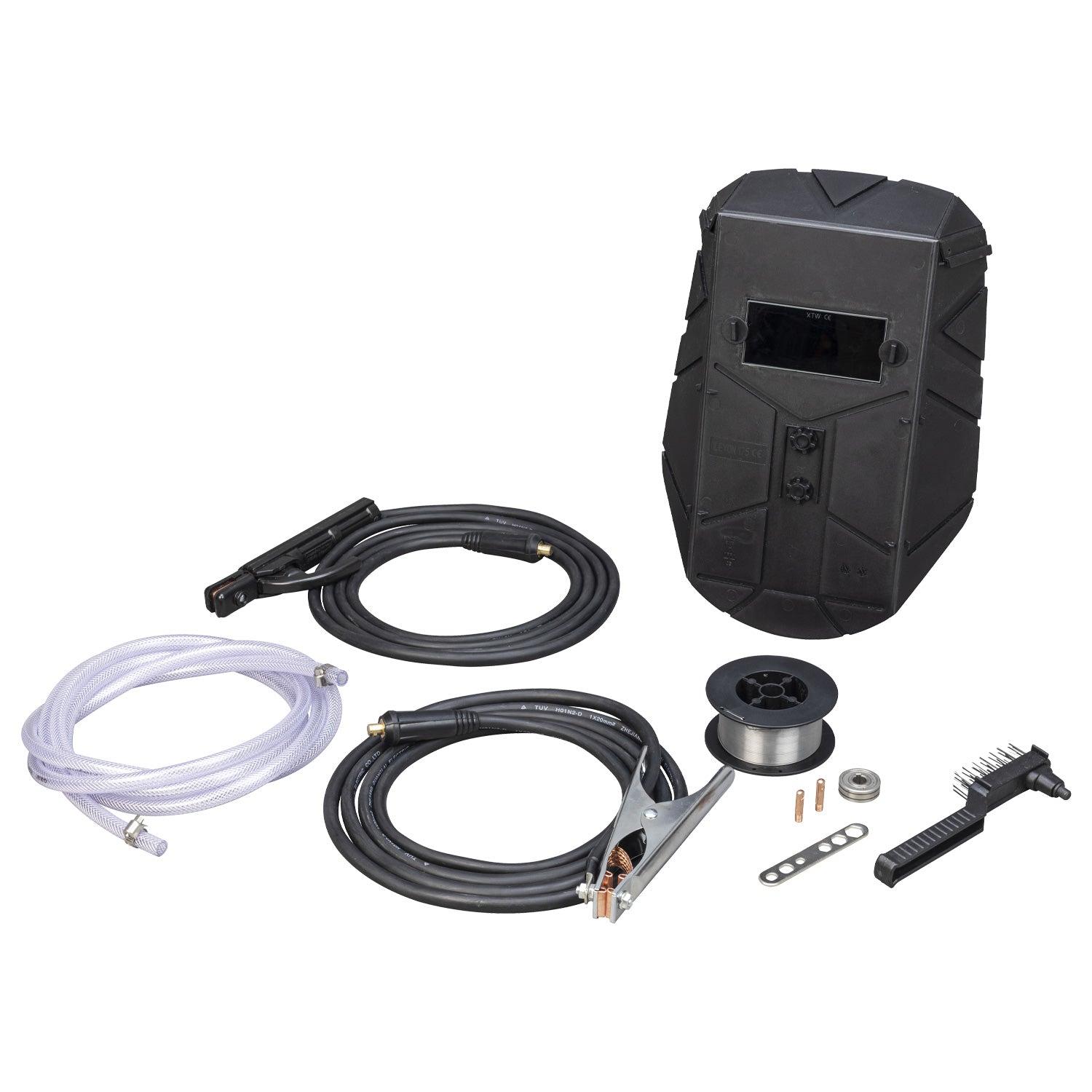

1x SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder (230v/16A), 1x 2mtr integrated MIG torch, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 1x 0.7kg flux-cored wire reel, 2x feed rollers, 2x contact tips, 1x torch spanner, 1x chipping hammer/brush and 1x face shield. TIG torch sold separately (Item 08206A recommended).
