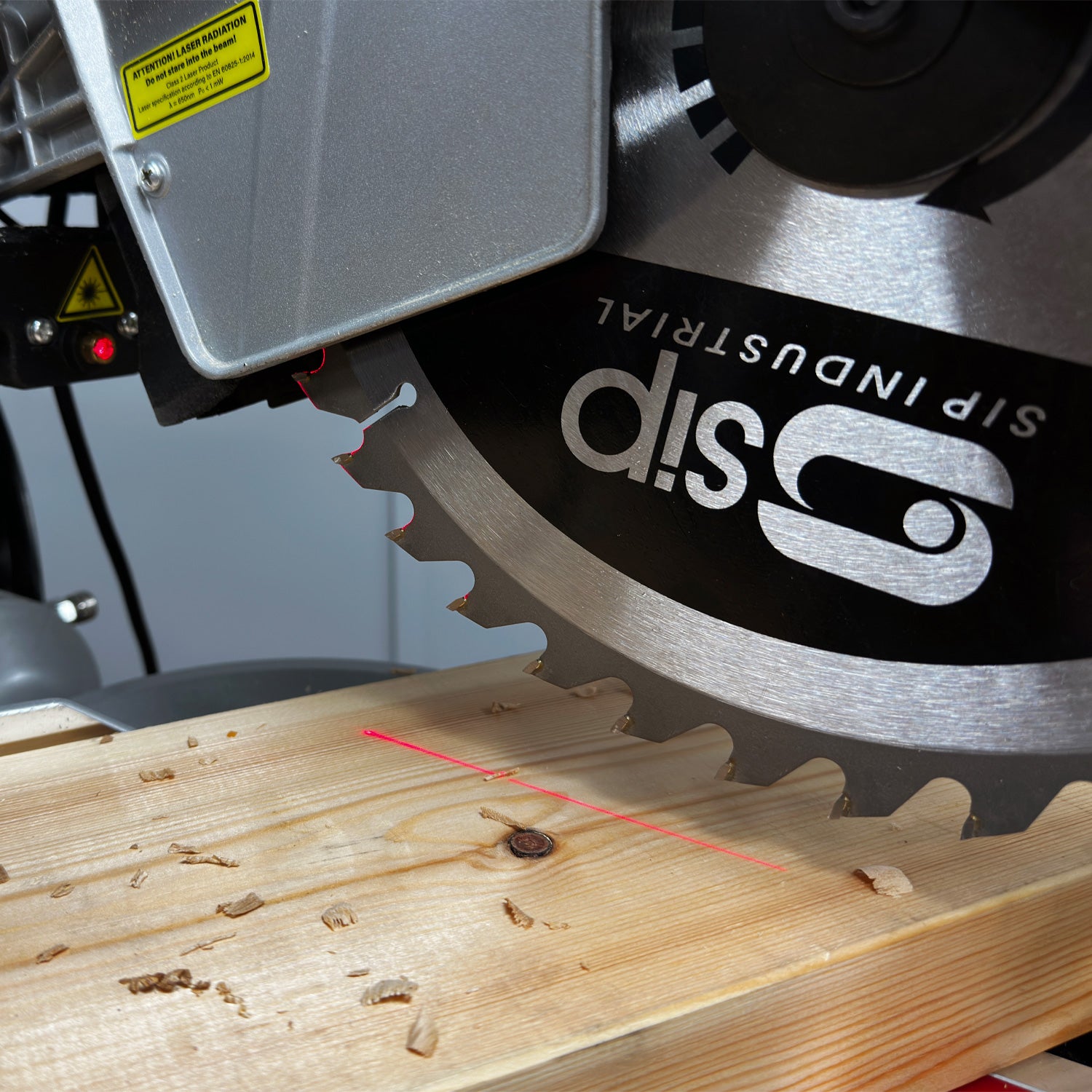

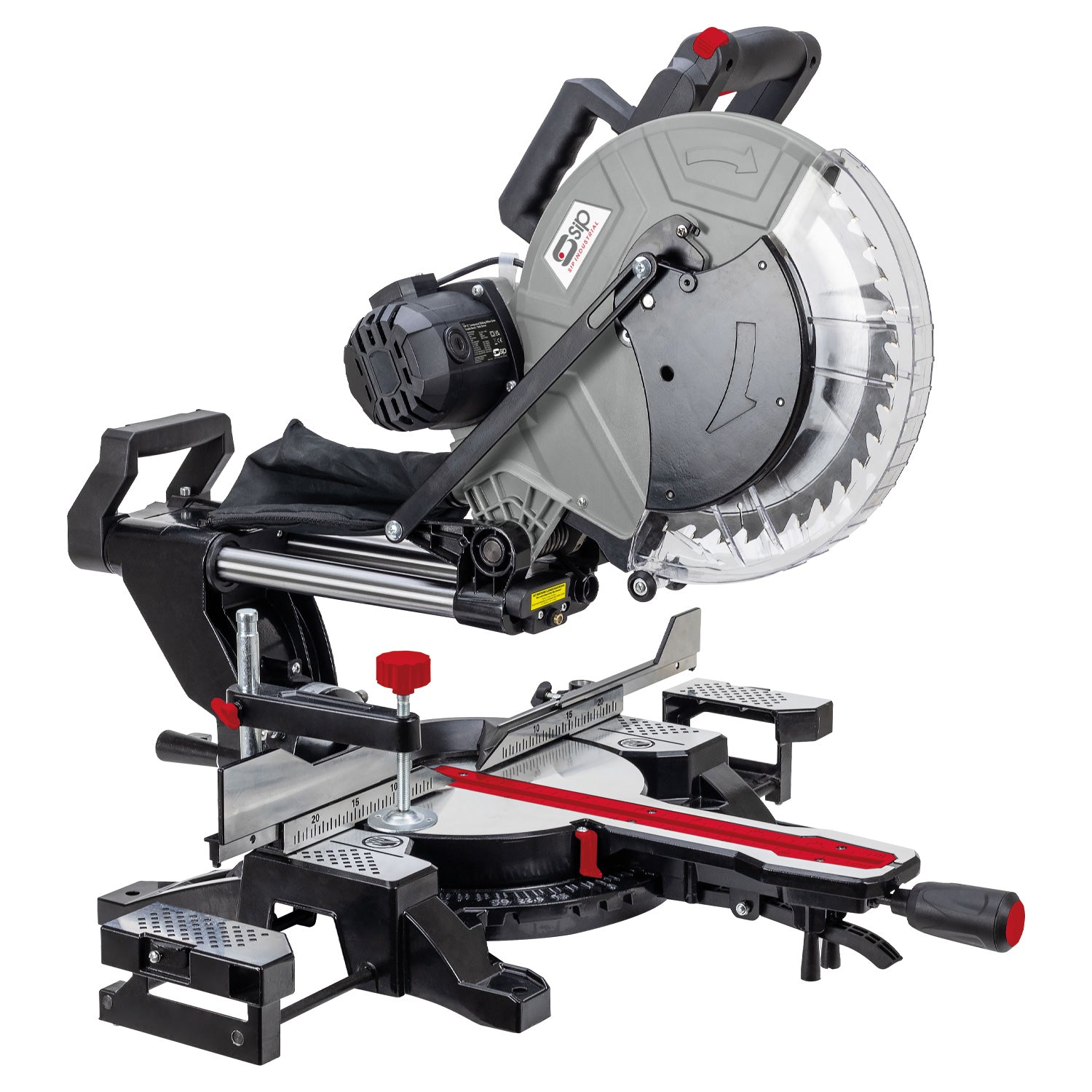

SIP 01505 12" Sliding Compound Mitre Saw with Laser

The SIP 12" Sliding Compound Mitre Saw with Laser is a powerful, versatile and accurate woodcutting saw. Designed with a belt-driven motor for smoother handling and quieter operation, it is ideal for professional woodworking workshops, domestic or commercial premises and DIY uses.

Featuring a 12" blade for handling larger workpieces and making deeper cuts, plus compound fuctionality to perform both bevel and mitre cuts, this heavy-duty multi-process tool is ideal for frequent day-to-day use.

ITEM NO. 01505
Input Supply: 230v (13A)
Motor Power: 1.8kW (2.4hp)
Blade Speed: 3800rpm
Blade Diameter: Ø 305mm
Blade Bore Size: 30mm
Blade Teeth: 40TCT
Blade Thickness: 1.8mm min. / 2.8mm max.
Mitre Range: -45° / 0° / +45°
Bevel Range: Up to 45° (left and right)
Cutting Capacities: 00° x 00°: 330mm x 105mm (straight) / 45° x 00°: 230mm x 105mm (mitre) / 00° x 45°: 330mm x 60mm (left bevel) / 00° x 45°: 230mm x 33mm (right bevel) / 45° x 45°: 230mm x 60mm (left compound mitre) / 45° x 45°: 230mm x 33mm (right compound mitre)

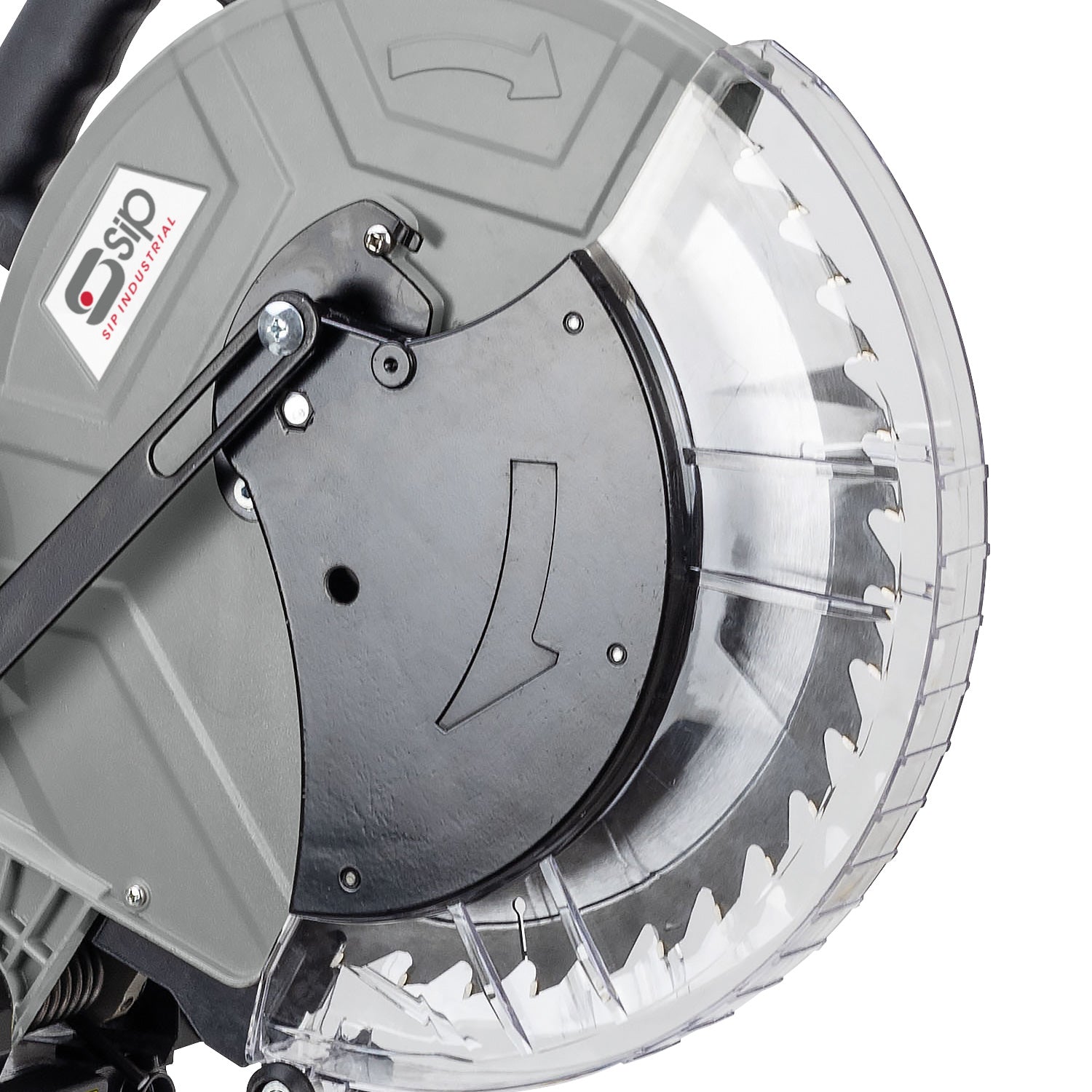

Fitted with a ⌀ 305mm x 40TCT high-quality saw blade

High-torque belt-driven motor for smooth handling and quieter operation

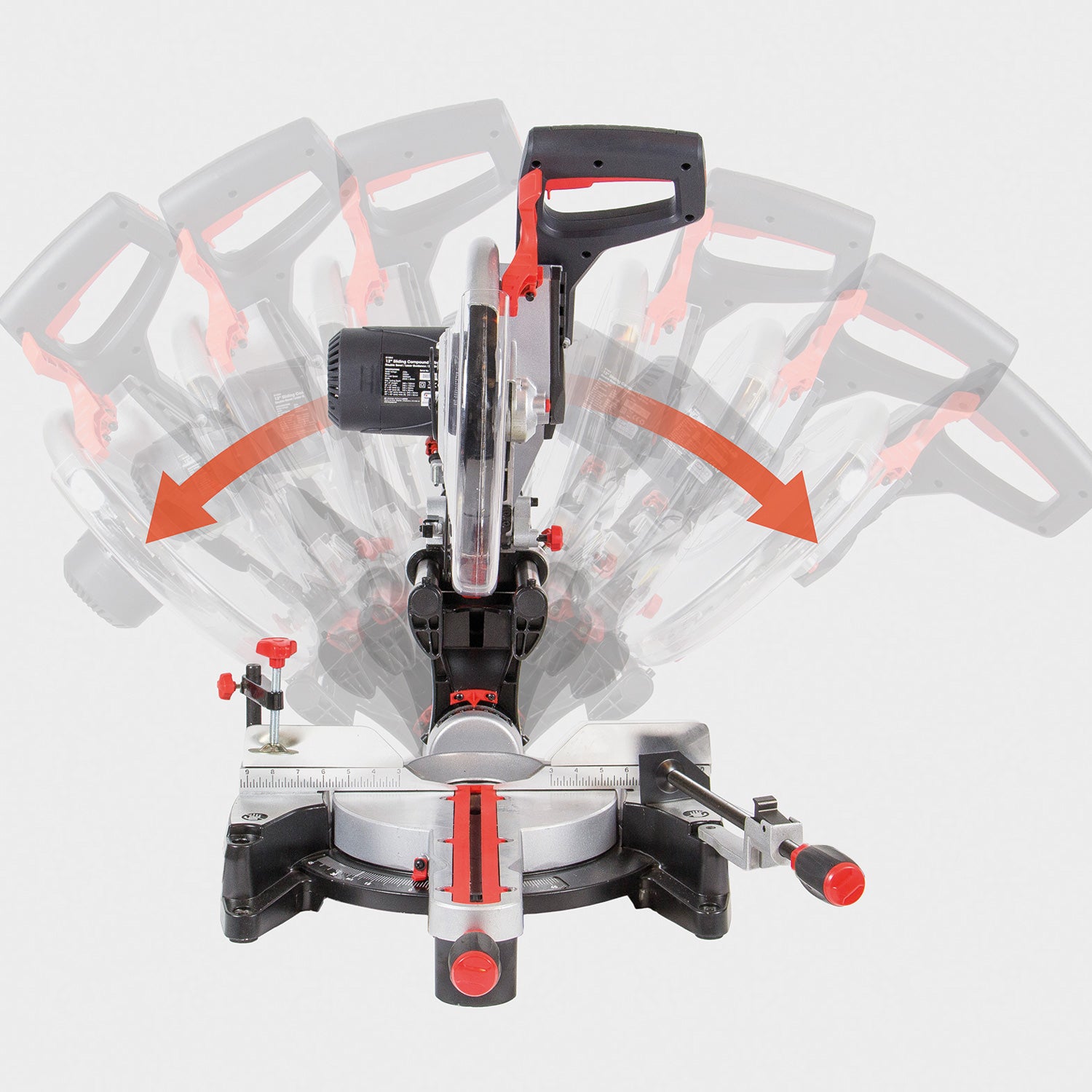

Double bevel function is adjustable to 45° both left and right

-45° / 0° / +45° mitre range for greater cutting capacity

Adjustable depth-cut setting for tenoning and trenching tasks

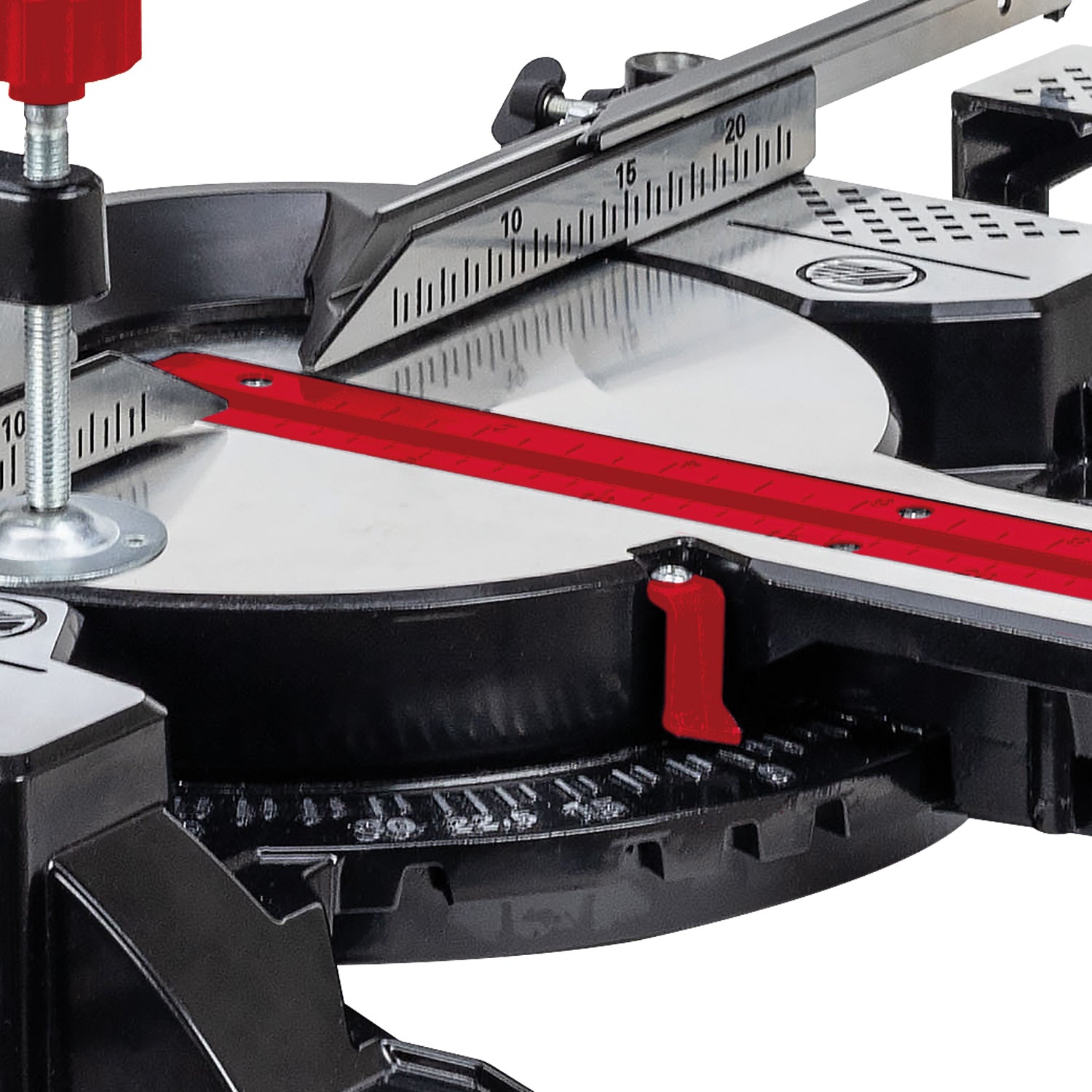

Heavy-duty rotating table with pre-set mitre gauge stops
