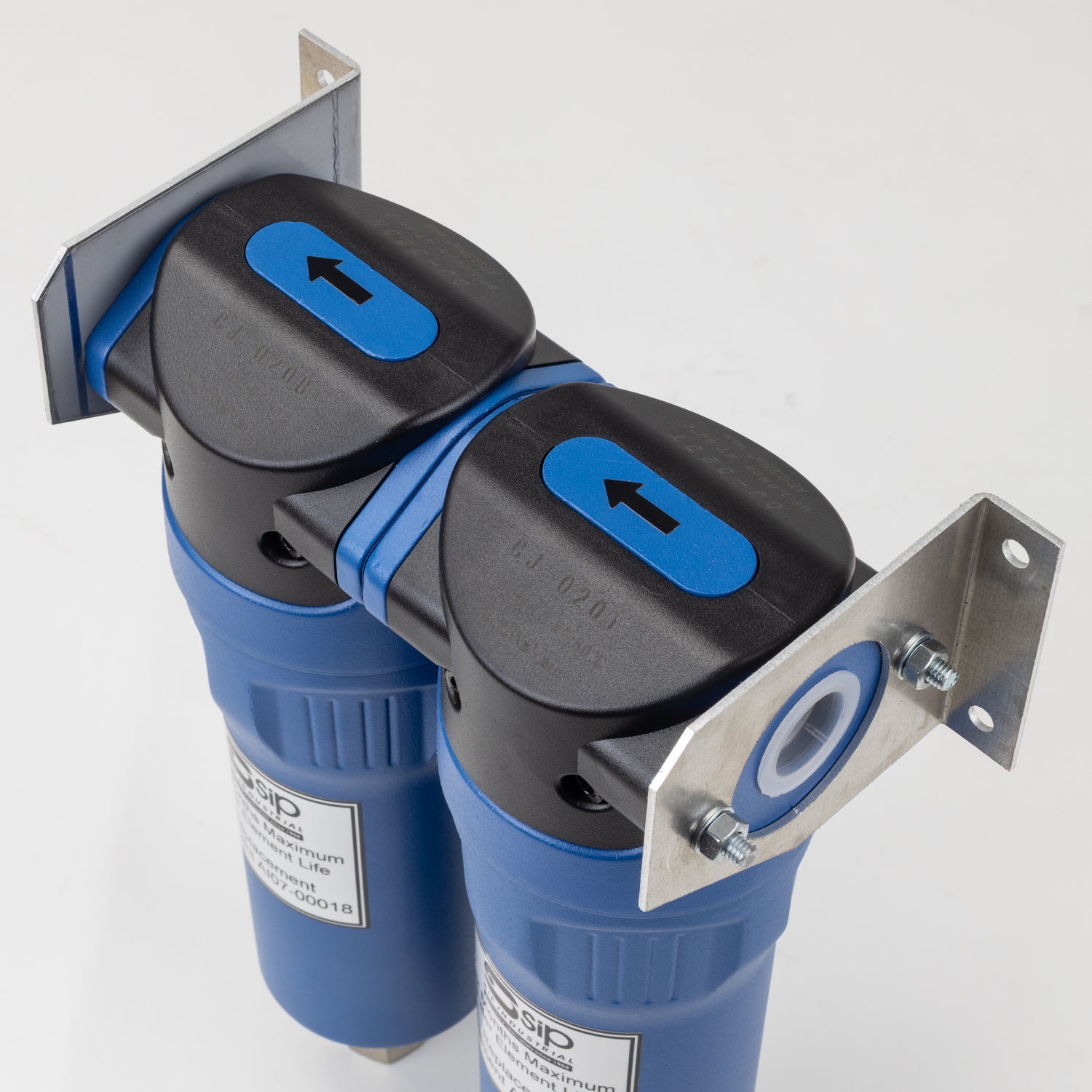

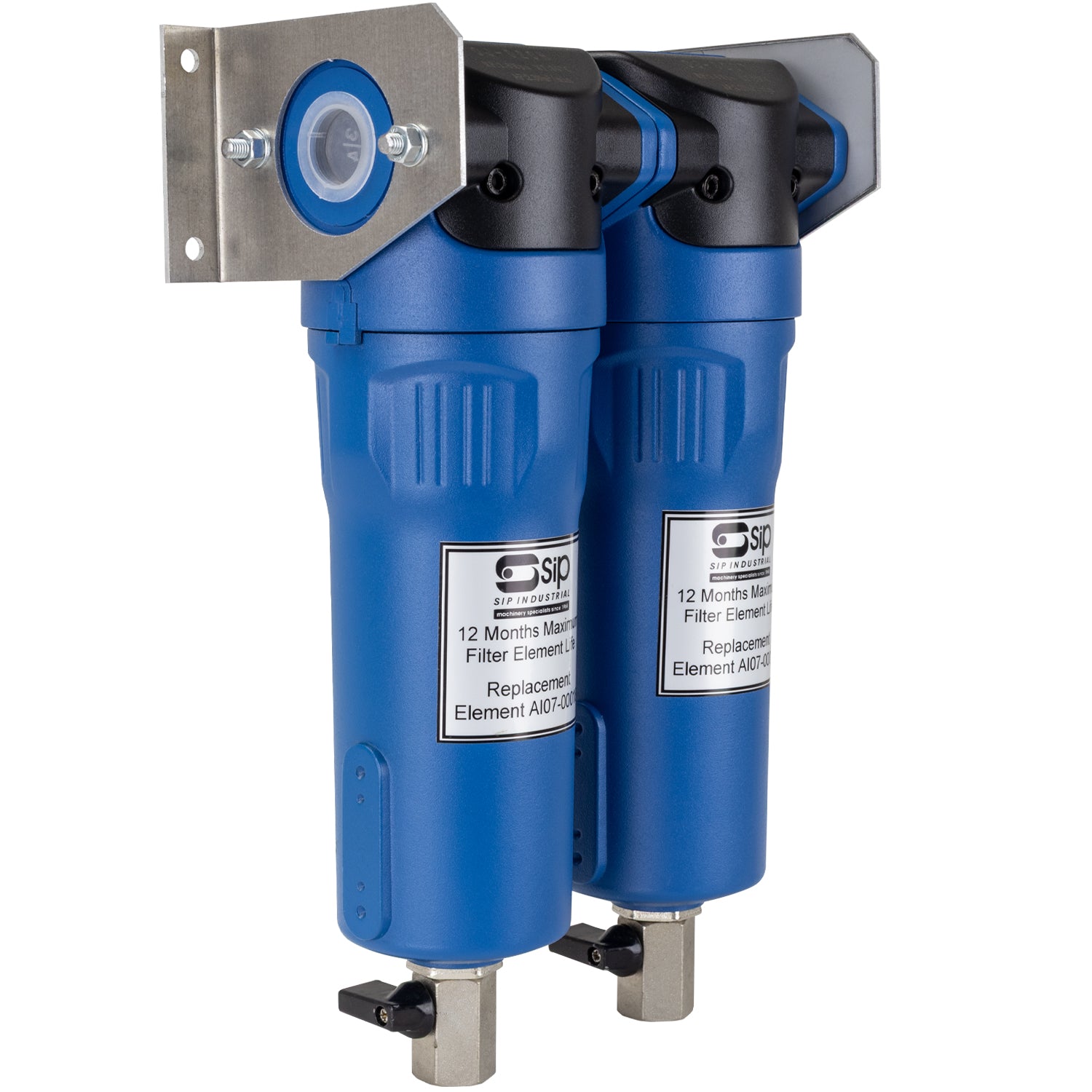

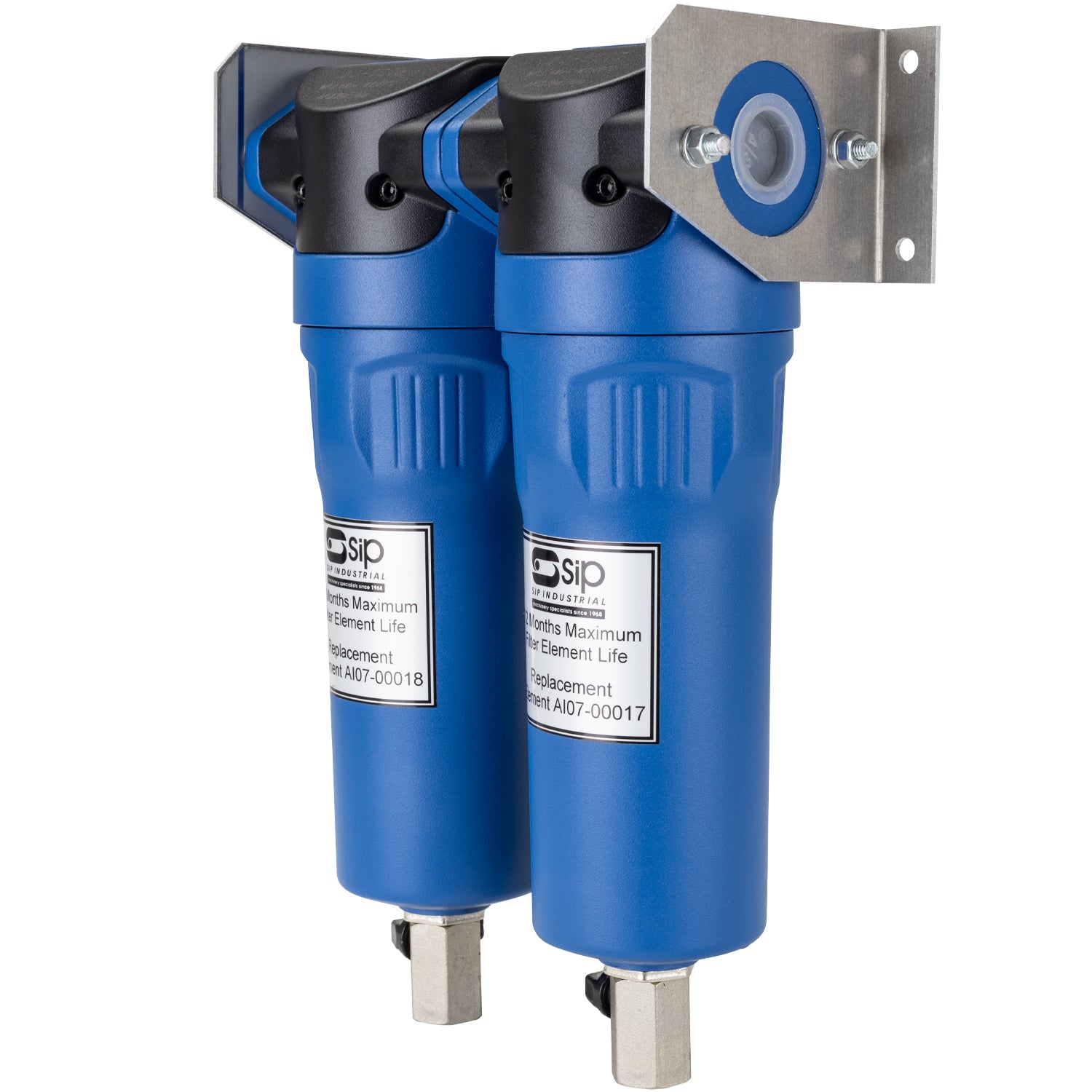

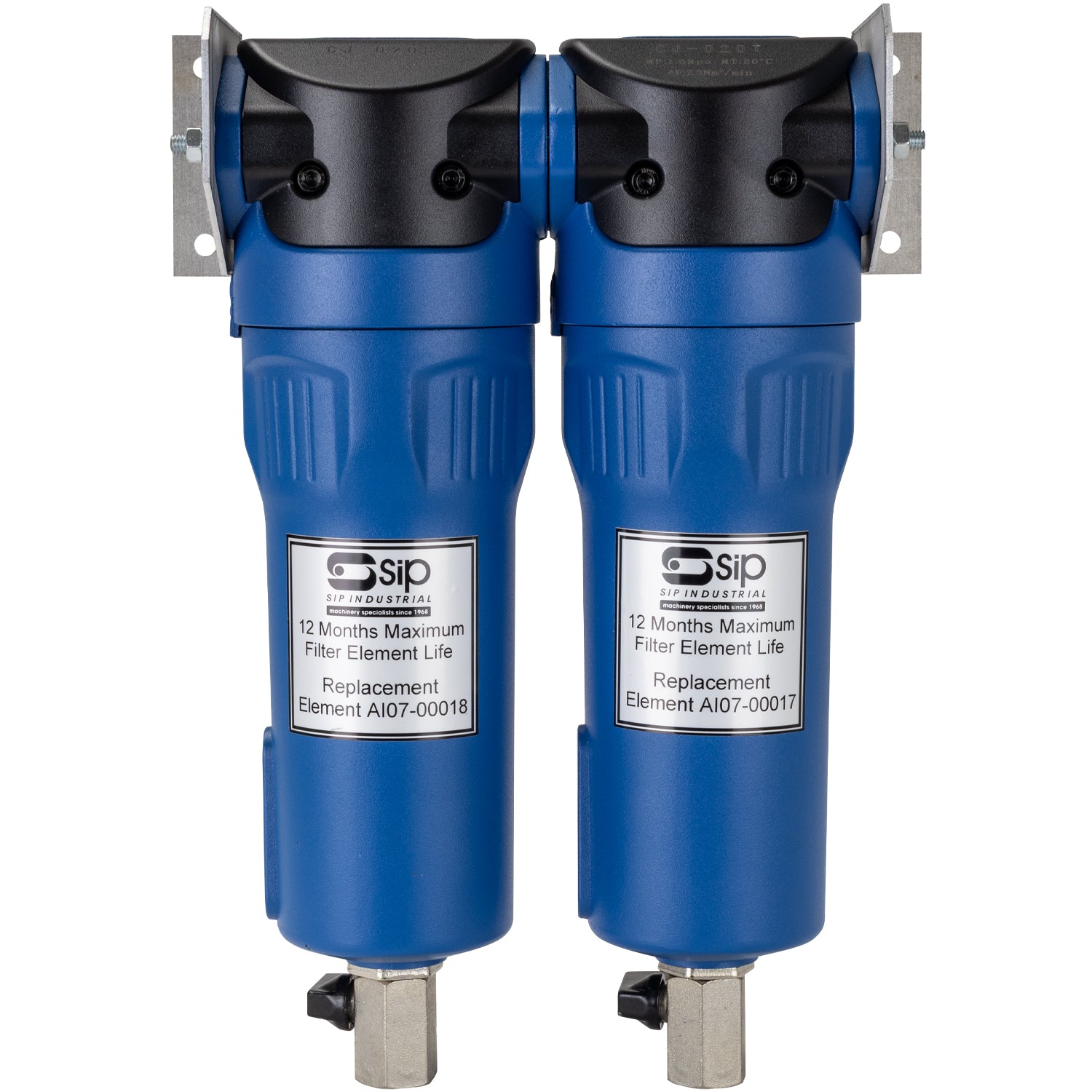

SIP 08299 Compressor Particulate & Oil Filtration System

The SIP Compressor Particulate & Oil Filtration System is designed to collect air particle contaminants including water droplets, oils, dirt and dust before powering air tools, air-powered equipment and ring main systems reliant on compressed air. This ensures a higher quality of compressed air is supplied and helps to extend service life.

Consisting of a particulate filter, coalescing filter, adaptor and housing kit plus brackets and fixings, it can be fitted to the compressor or on walls. Compatible for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges.

This system is designed to achieve air quality level 2-4-2 using ISO8573-1 as a reference standard, ensuring enhanced air purity when paired with a refrigerated dryer.

ITEM NO. 08299

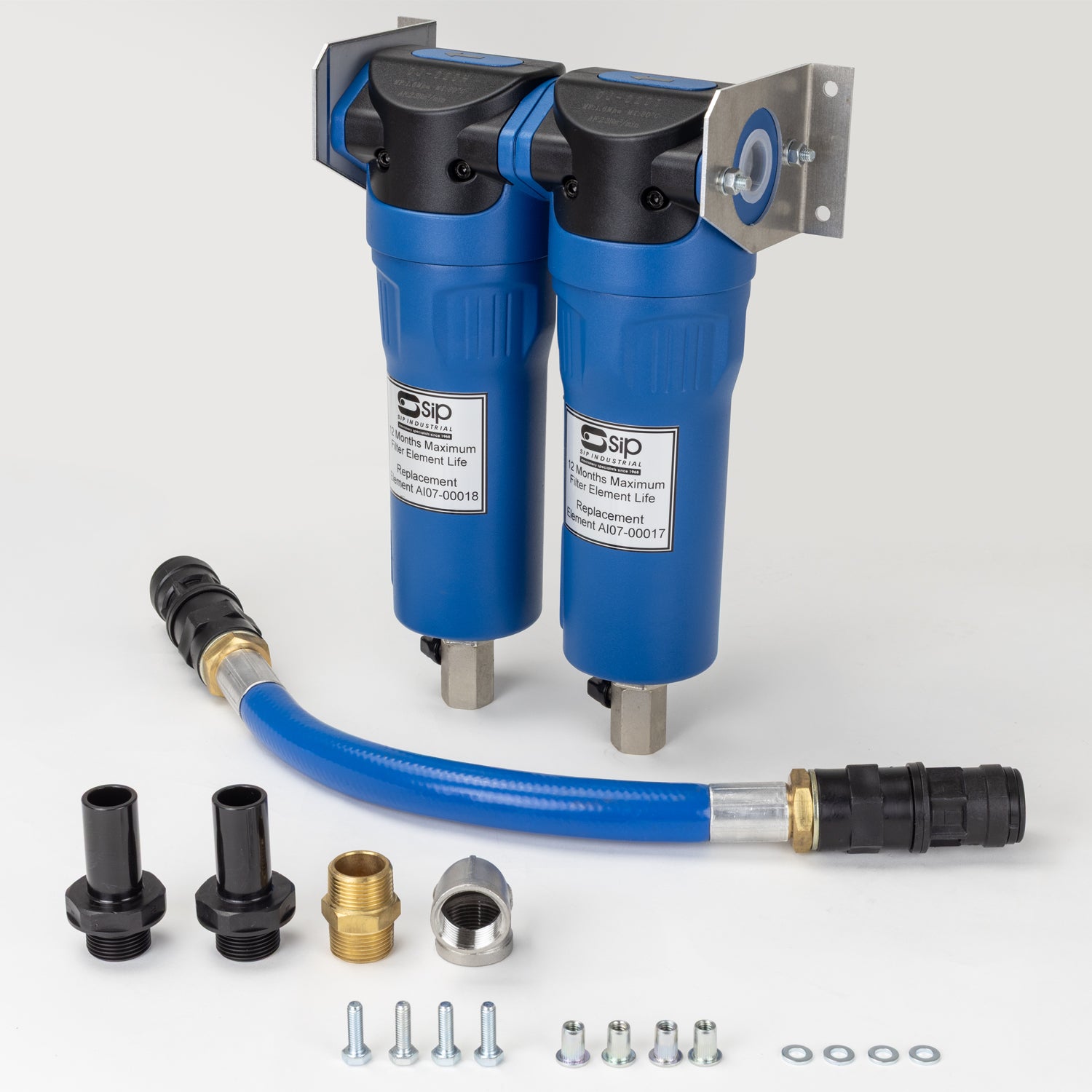

Kit Contents: ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets, fixings
Air Quality Level: 2-4-2 (ISO 8573-1*)

Collects air particle contaminants including water droplets, oils, dirt and dust

Achieves air quality level 2-4-2 using ISO 8573-1 as reference if paired with dryer

Includes particulate and coalescing filters, adaptor, housing kit, bracket, fixings

Helps to extend the life of tools and machinery powered by compressed air

System is wall or compressor-mountable design for added versatility

Suitable for the SIP VSDD and SIP RS Rotary Screw Compressor ranges

SIP 08299 Compressor Particulate & Oil Filtration System

1x ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets and fixing kit.
