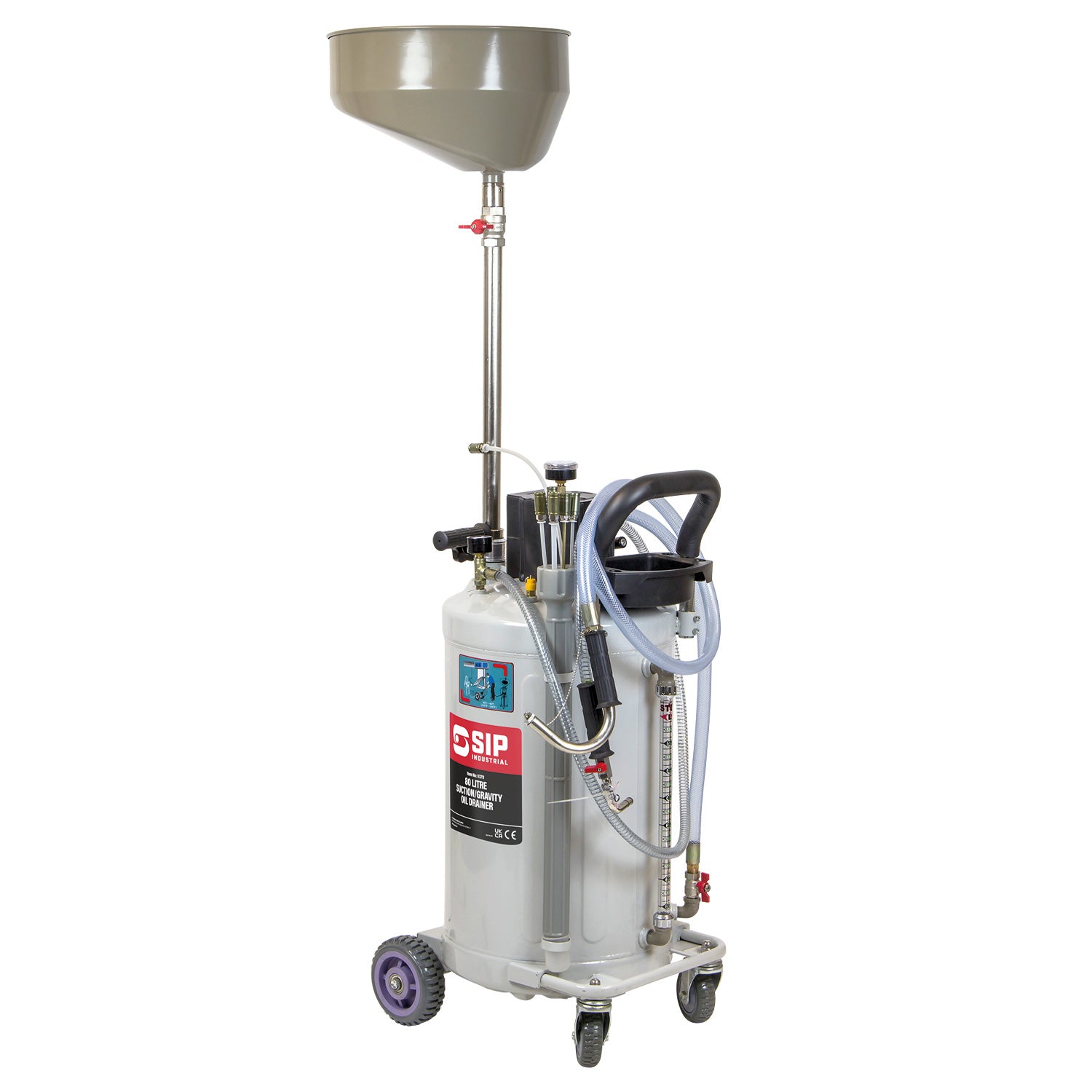

SIP 03711 80 Litre Suction Oil Drainer

The SIP 80ltr Suction / Gravity Oil Drainer is designed for clean and efficient collection of waste oil from engines, gearboxes and assemblies in professsional garages and automotive workshops.

With a heavy-duty 80ltr steel tank and adjustable height 20ltr collection tray with 360° rotation, the drainer is ideal for quick and easy oil changes and also supports proper disposal of oil in compliance with environmental guidelines.

Air supply required for vacuum and suction pressure (5CFM / 6-8bar, min. 100ltr air receiver) and oil discharge (10psi (0.7bar) - 15psi (1bar)).

ITEM NO. 03711
Operation Type: Suction / Gravity
Collection Tray Capacity: 20ltr
Collection Tank Capacity: 80ltr
Collection Tray Height: 1190mm - 1810mm
Discharge Pressure: 10psi - 15psi (0.7bar - 1bar)
Discharge Hose Length: 2.2mtr
Suction Pressure: 87psi - 145psi (6bar - 10bar)
Suction Hose Length: 2.2mtr

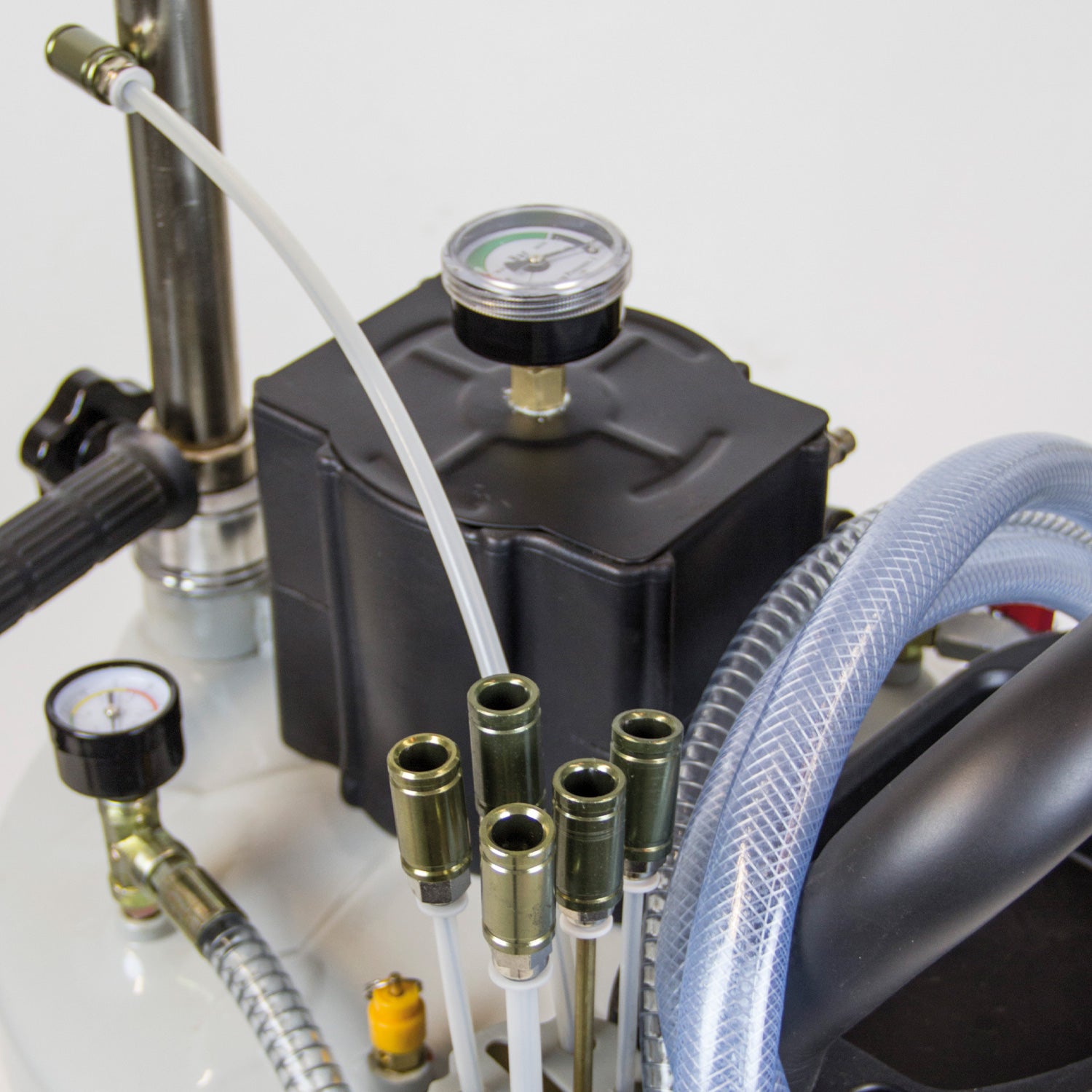

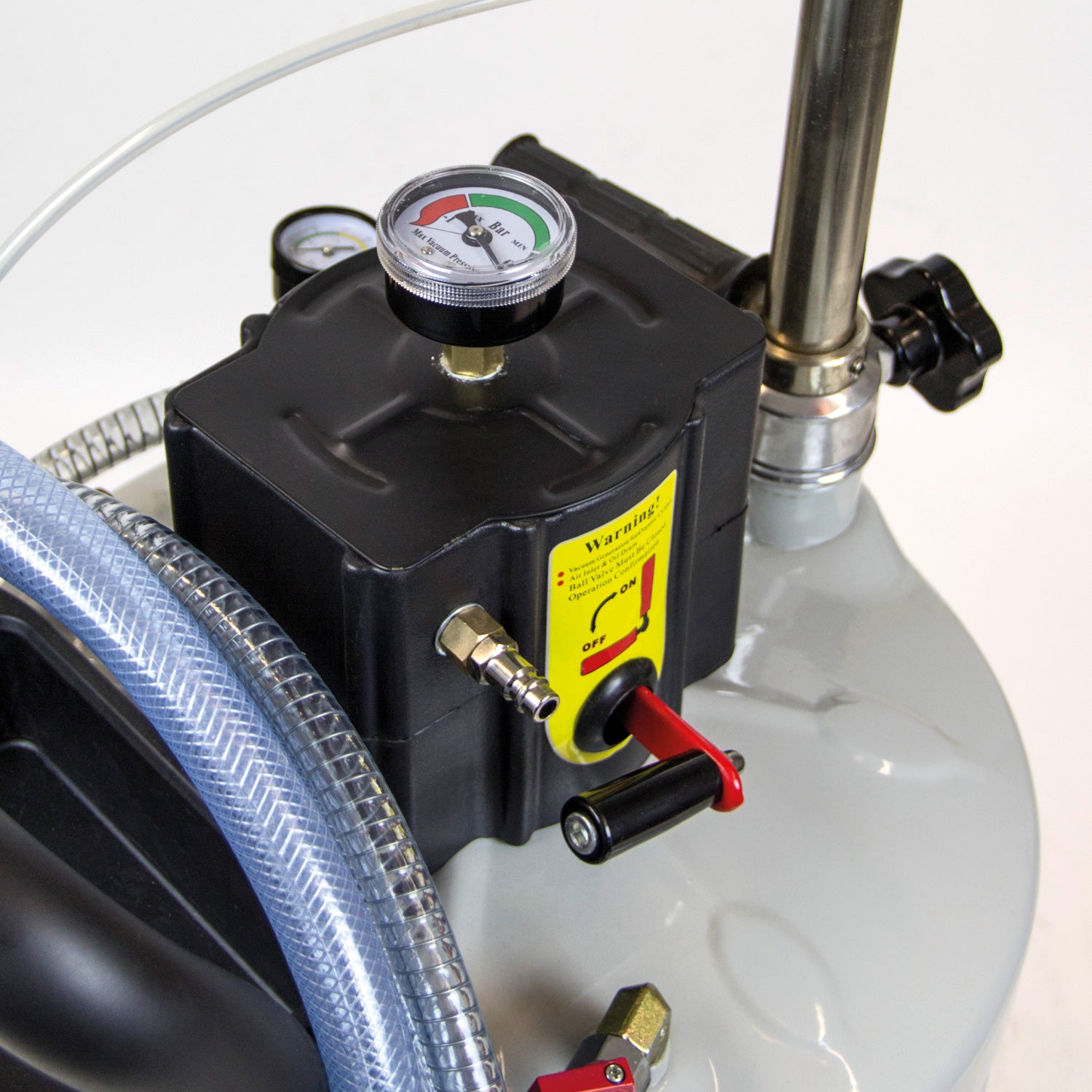

Vacuum Gen. Valve / Air Requirement: 5CFM / 6bar - 8bar (min. 100ltr air receiver)
Working Temperature (Engine Oil): 40°C to 60°C
Air Inlet: 1/4"

Heavy-duty 80ltr steel collection tank for high-volume oil collection

20ltr collection tray with 360° rotation to minimise work area spills

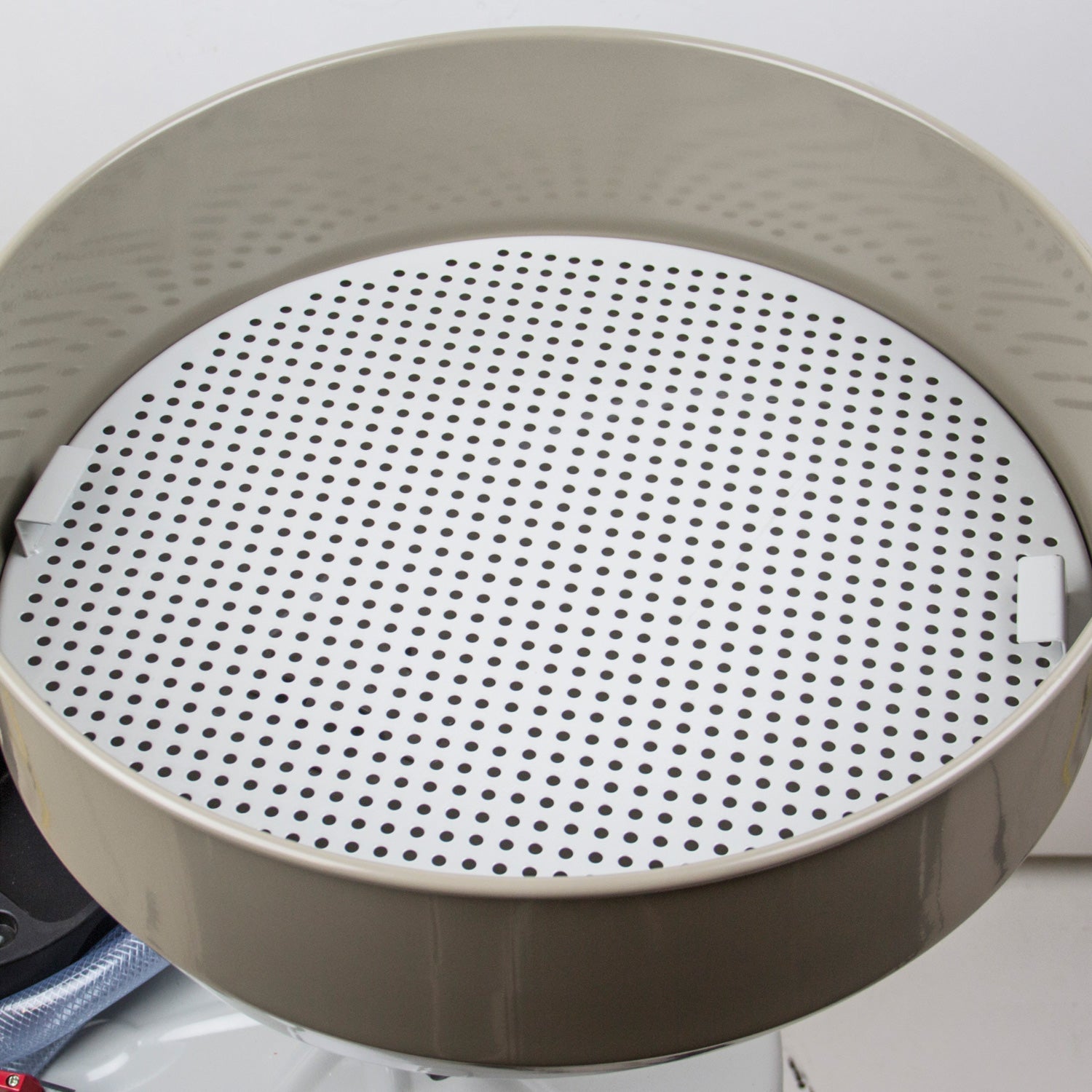

Pre-filter plate catches debris and contaminants before it enters the tank

Adjustable 1190mm to 1810mm height for various vehicles and lifting set-ups

Wheel-mounted with swivel castors for sturdy movement and easy positioning

Integrated oil level indicator for visual monitoring to prevent overfilling
