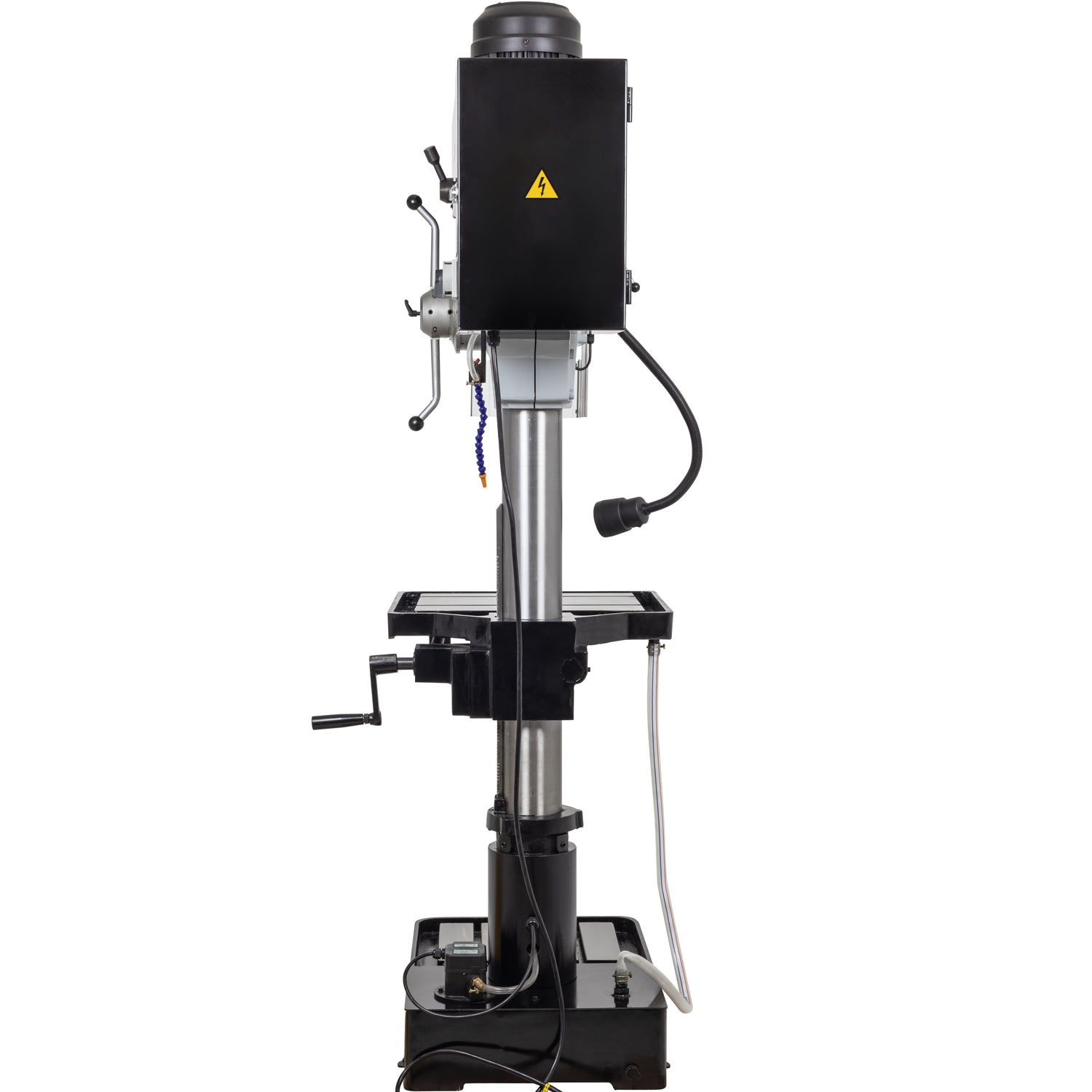

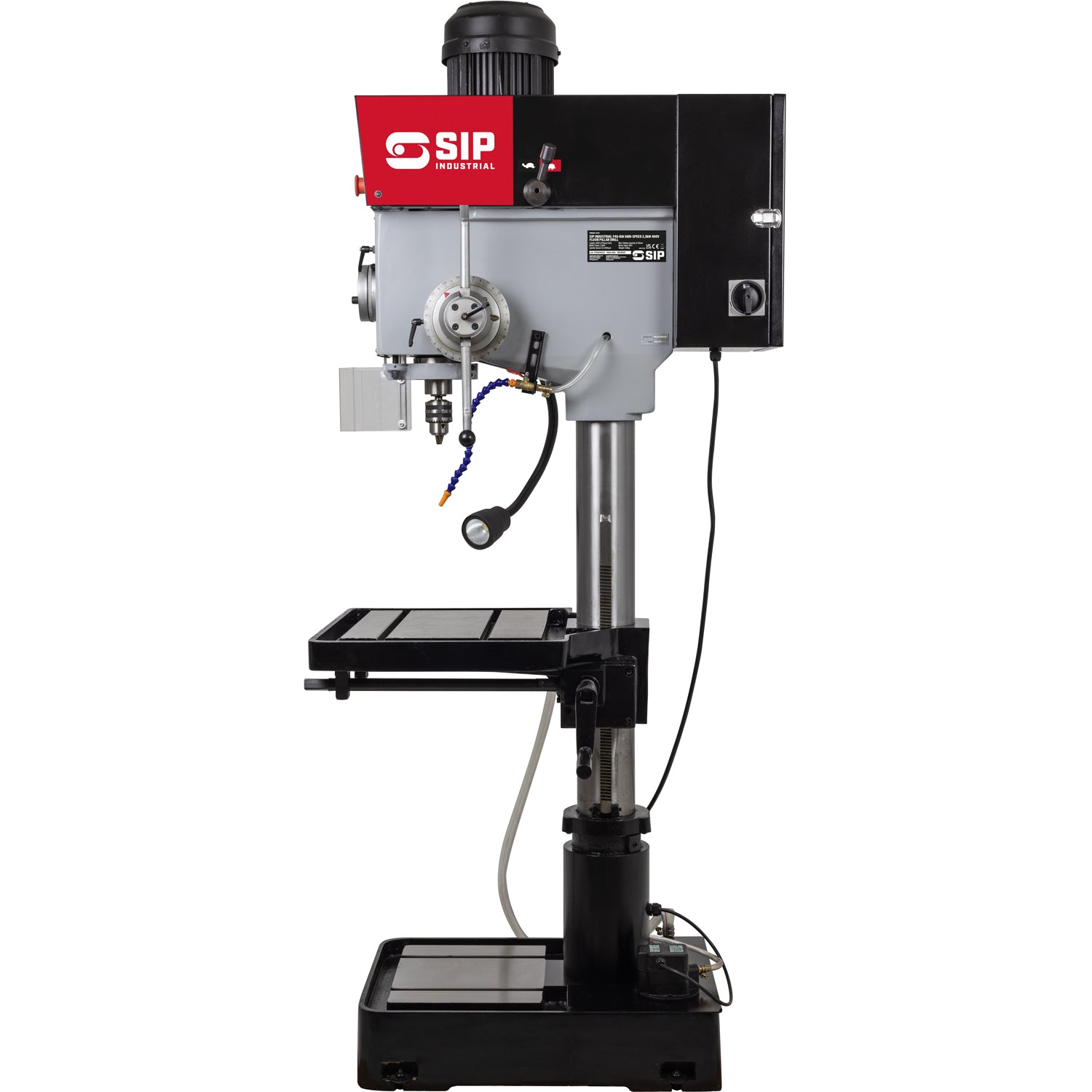

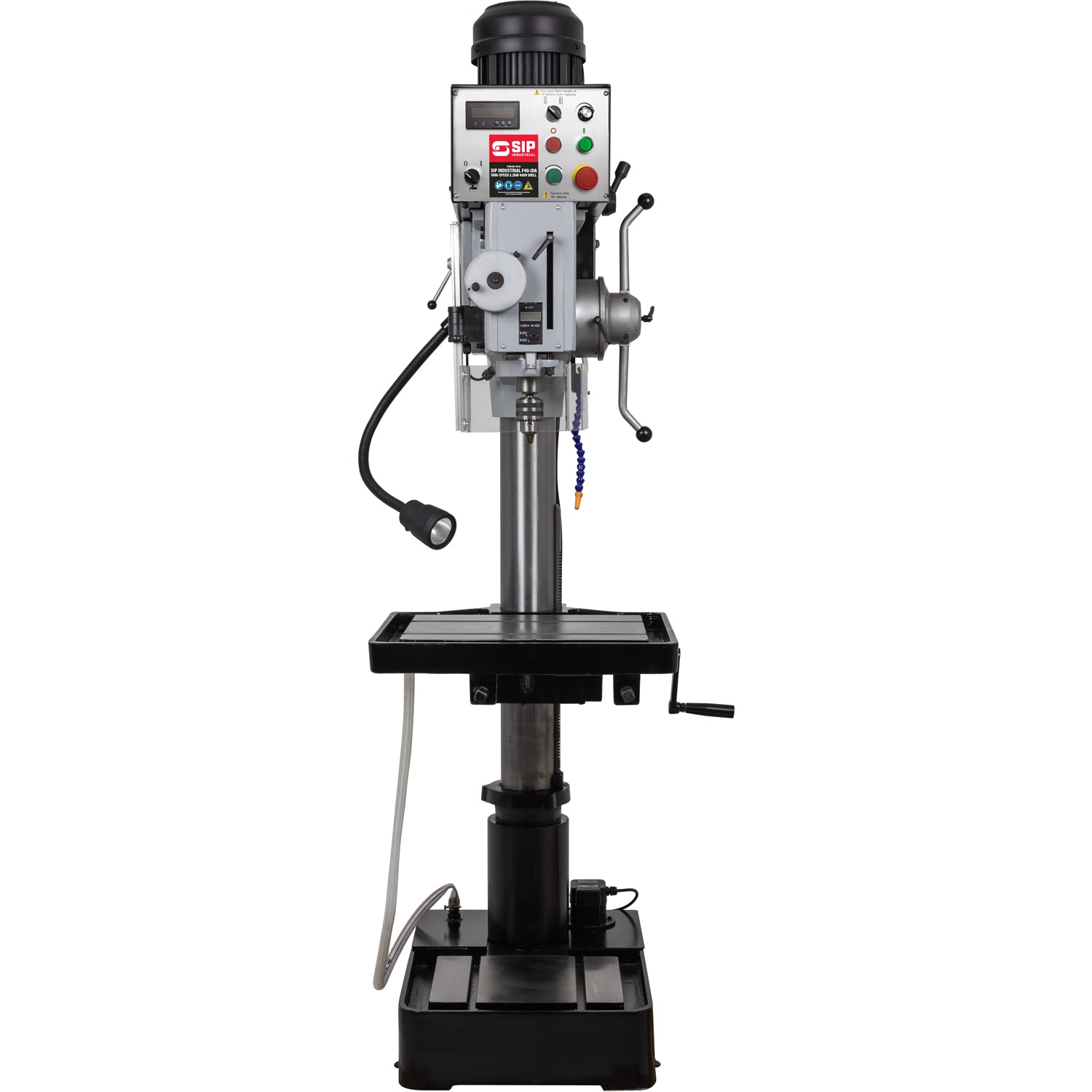

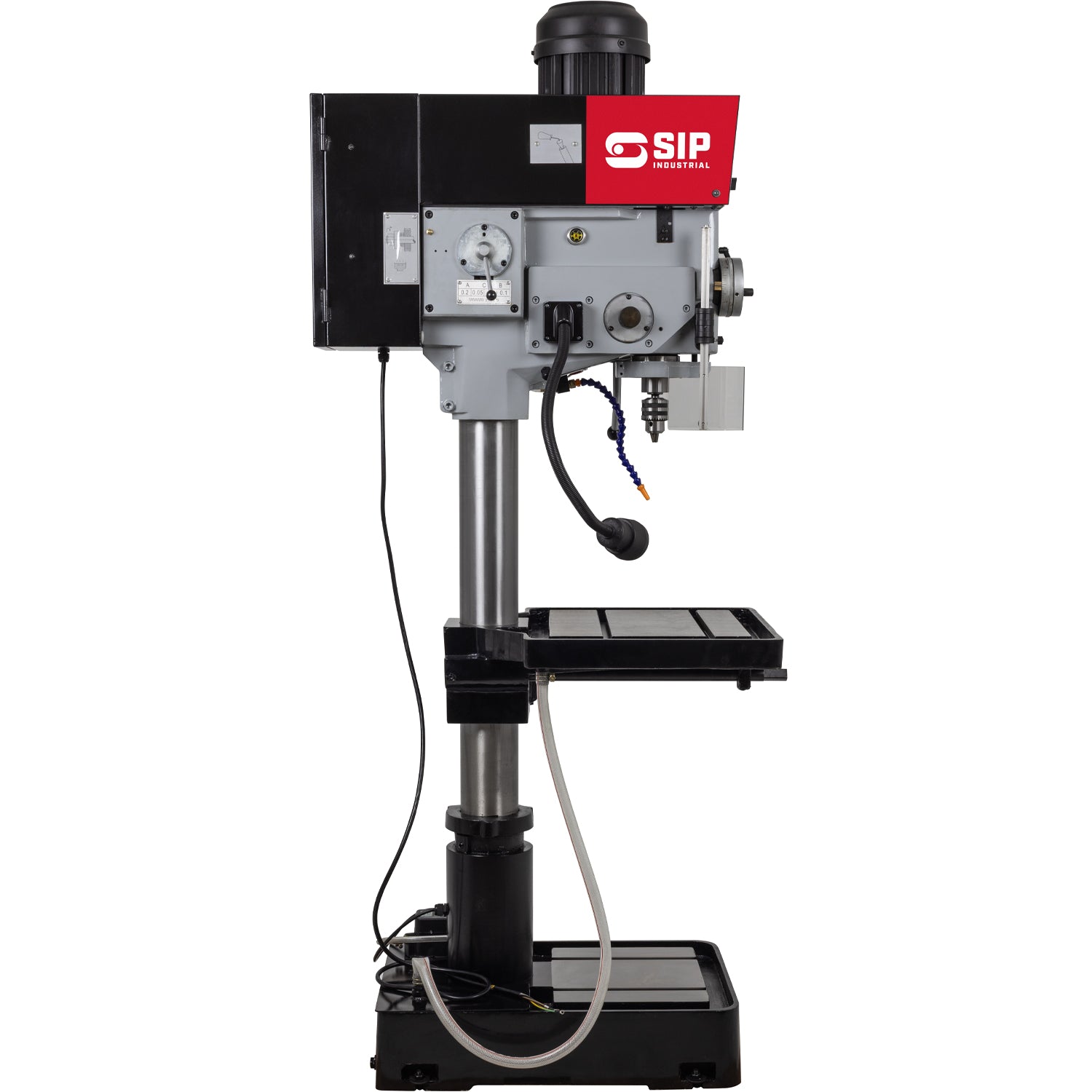

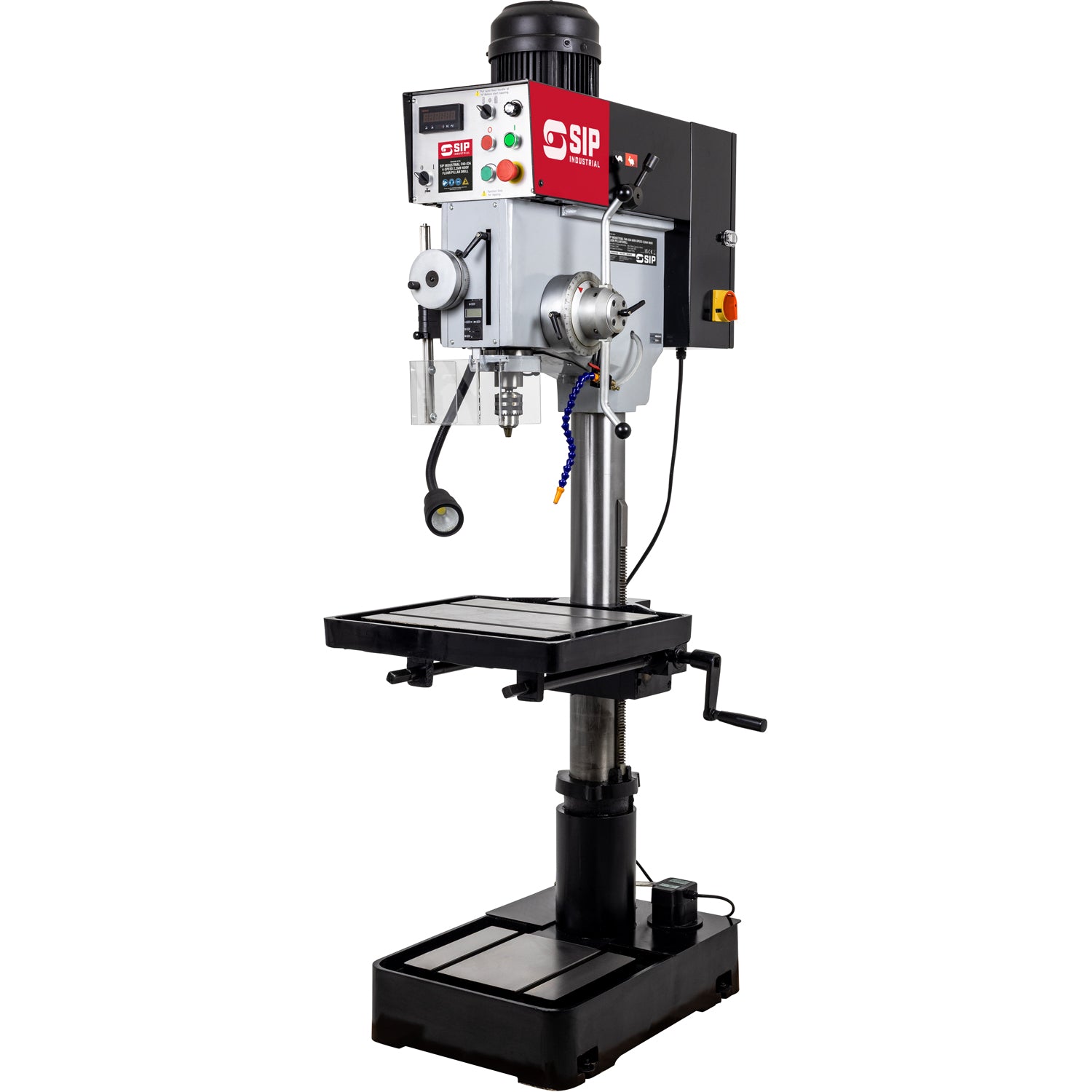

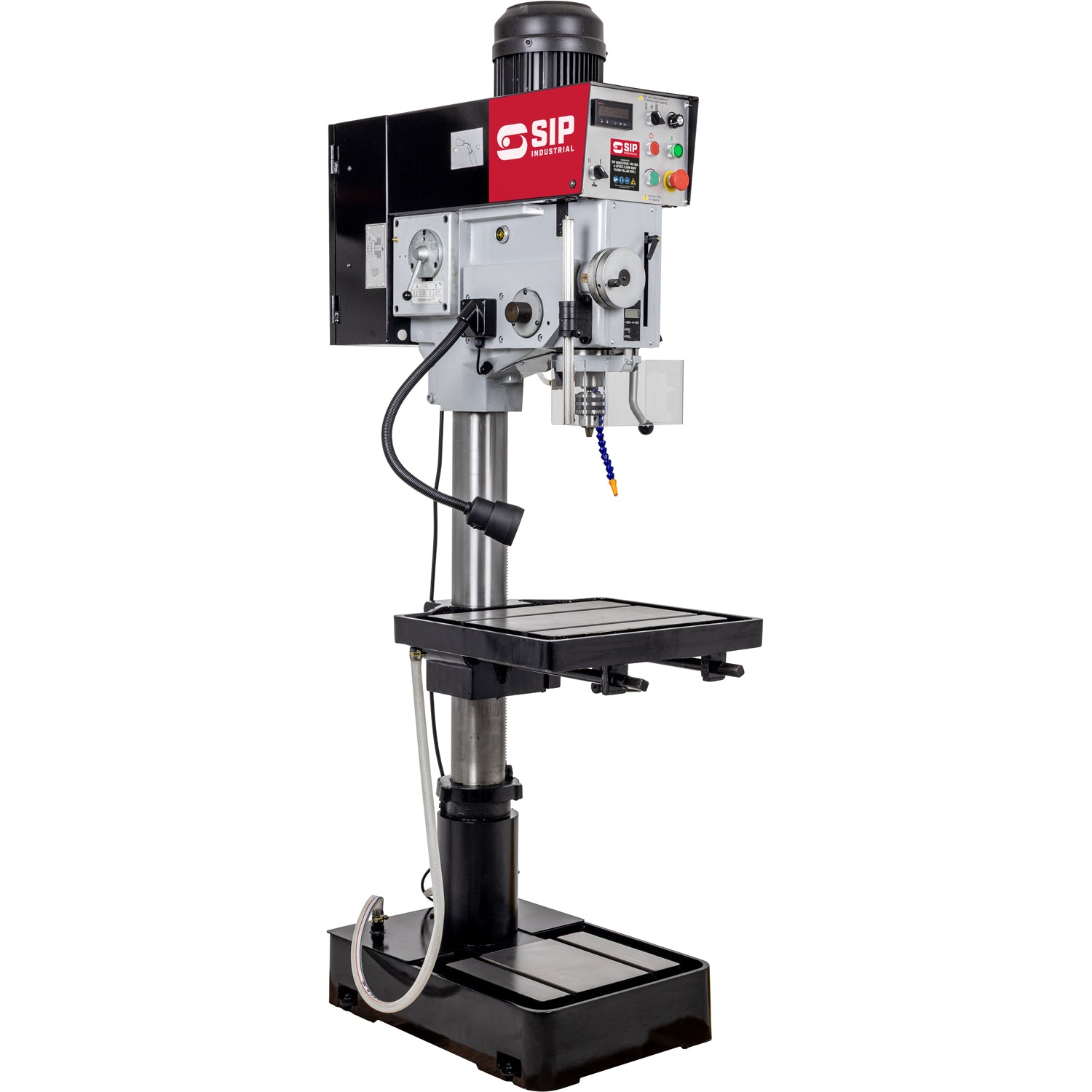

SIP 01721 Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill

The SIP Industrial F40-IDA 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

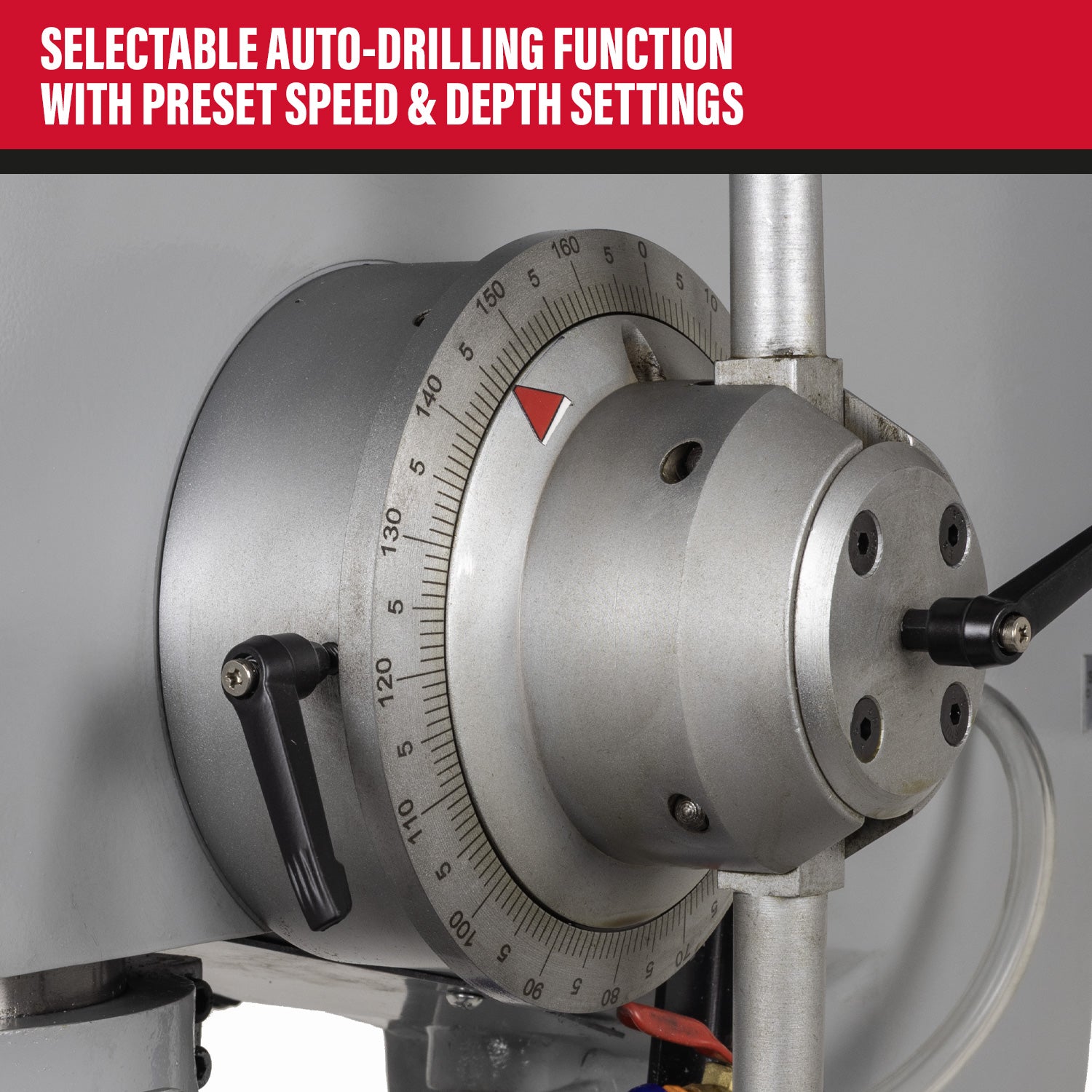

Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm to 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 40mm. An integrated auto-drilling function also increases workshop efficiency, particularly during repetitive tasks.

Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.

ITEM NO. 01721
Input Supply: 400v (16A)
Motor Power: 2.2kW
No. of Speeds: 65rpm - 540rpm (low) / 245rpm - 2000rpm (high)
Max. Drilling Capacity: 40mm
Max. Tapping Capacity: 25mm
Spindle Taper: MT4

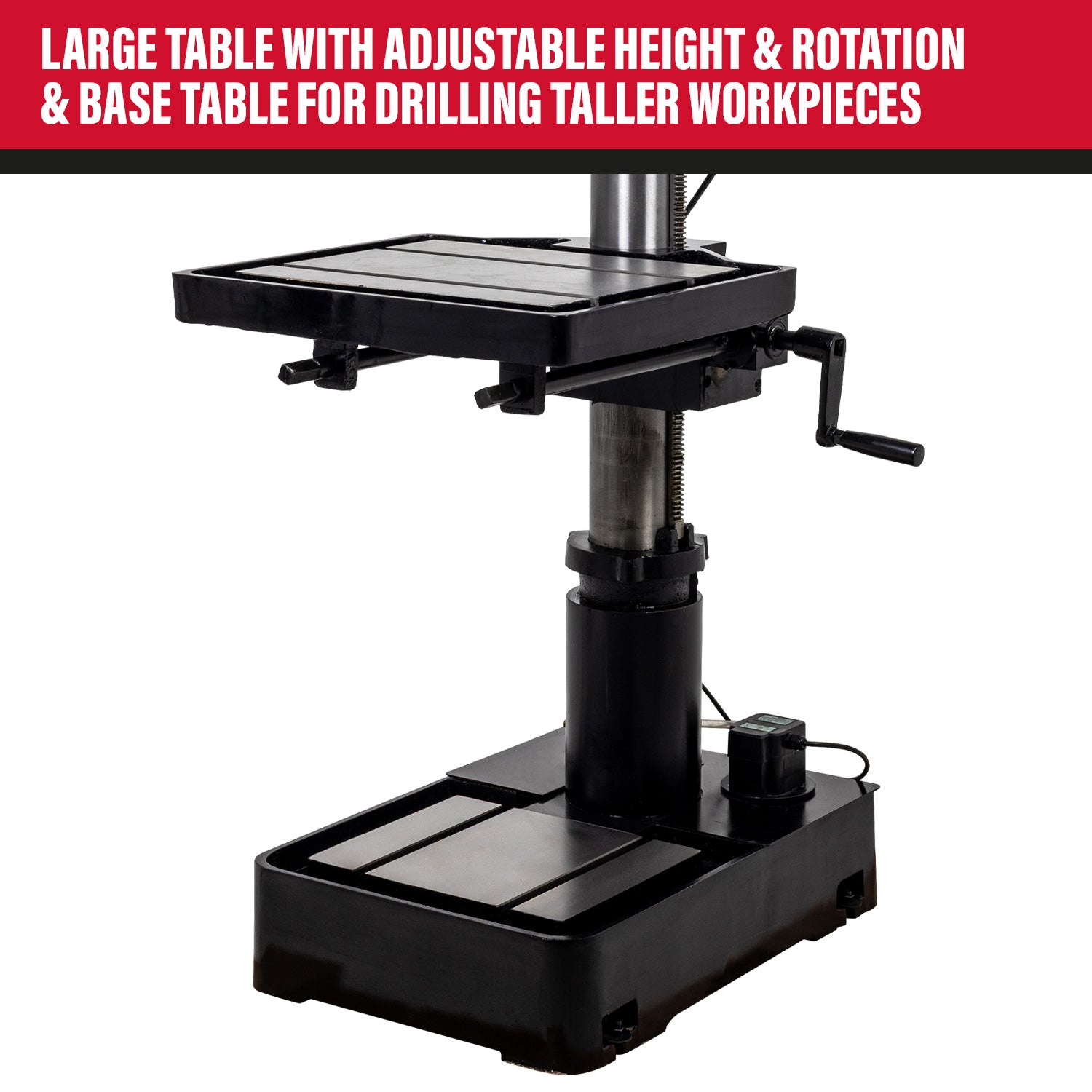

Table Size: 560mm x 475mm
Base Size: 688mm x 486mm
Column Diameter ⌀ 115mm
Swing: 530mm
Height: 2040mm
Spindle Travel: 150mm
Collar Diameter: ⌀ 174mm
Max. Distance: 605mm (spindle to table) / 1150mm (spindle to base)

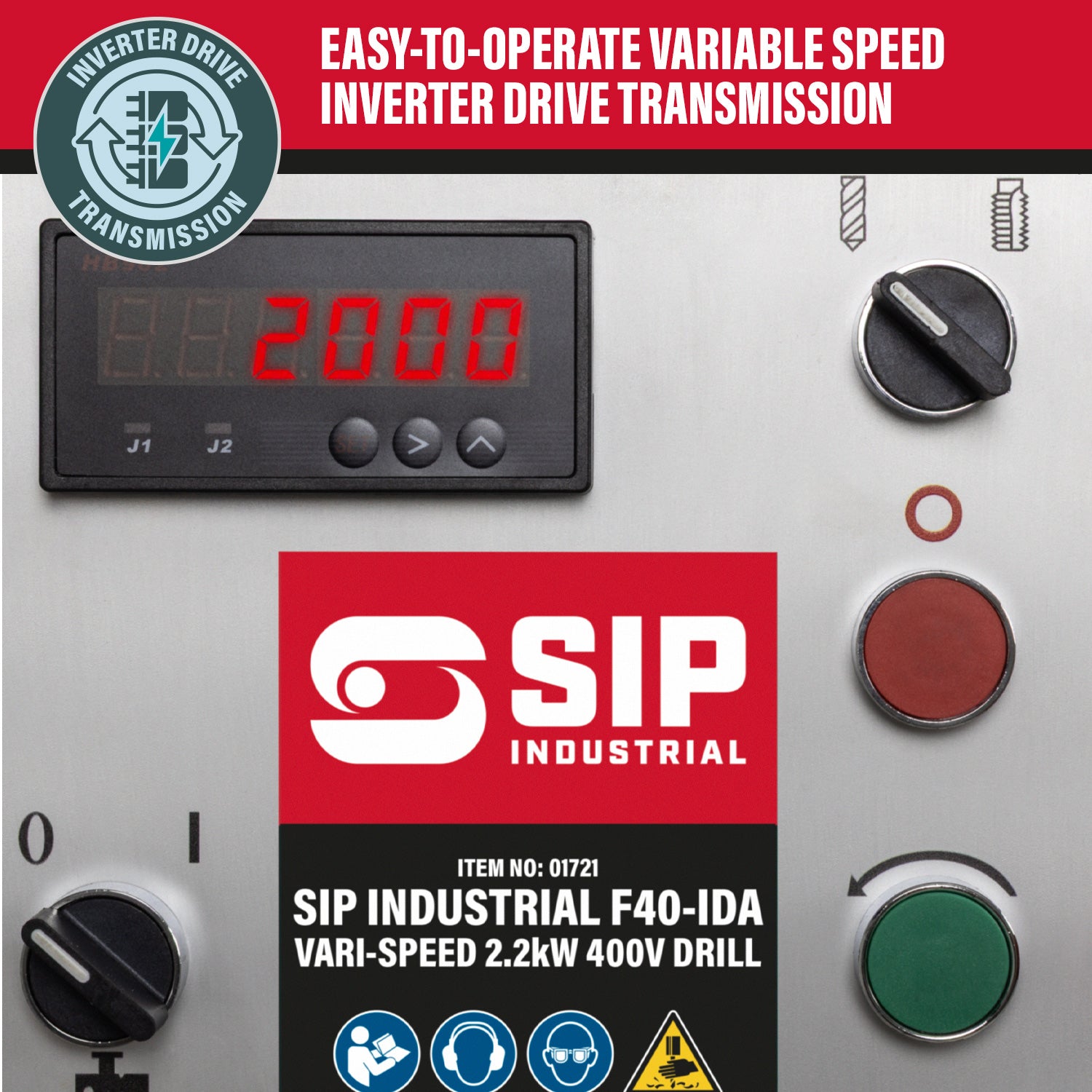

Variable frequency inverter drive transmission with wide 65-2000rpm speed range

Infinitely variable control dial for precise spindle speed setting

High torque output for consistent drilling power of up to max. ⌀ 40mm

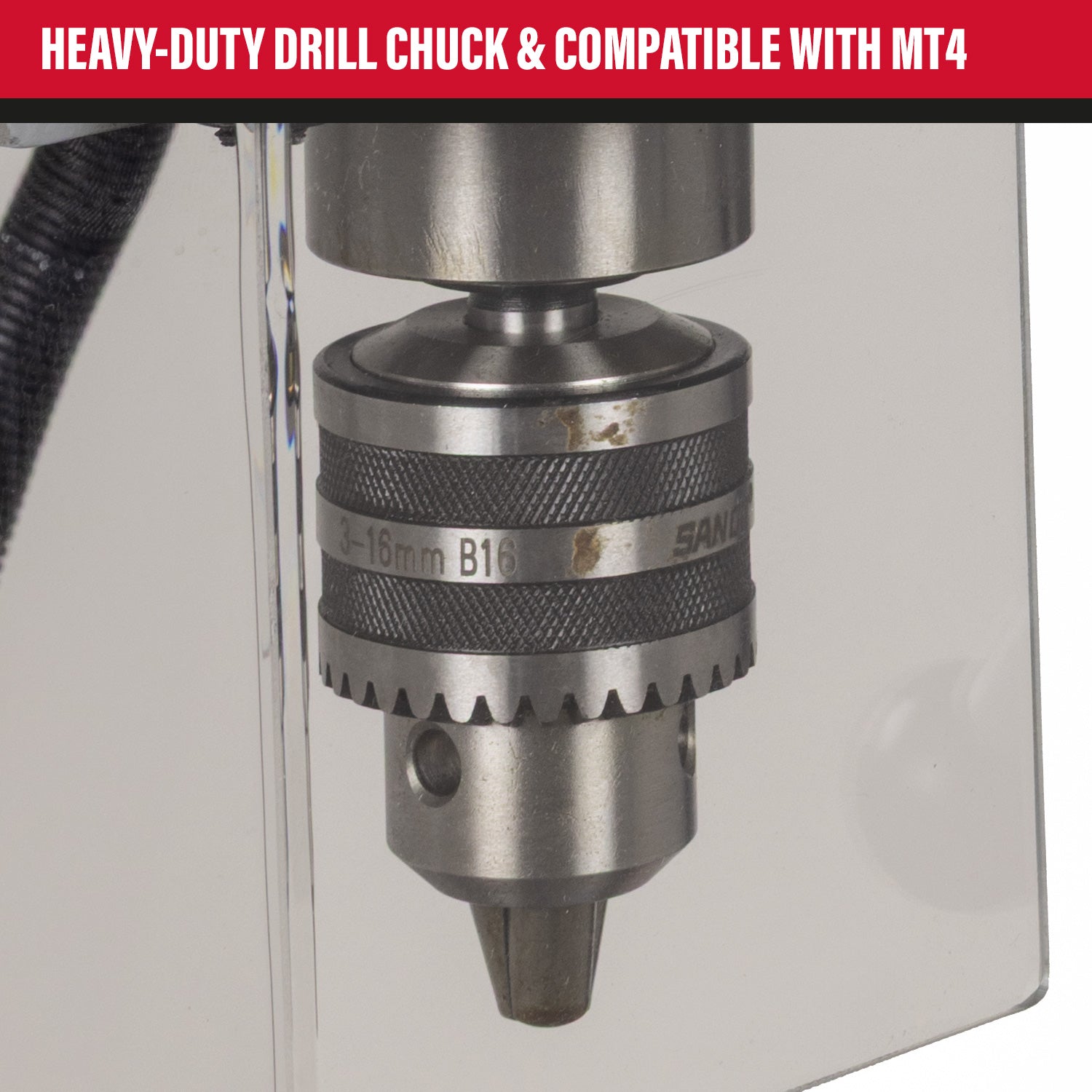

Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 4)

Tapping function for threading high-quality screw holes up to max. ⌀ 25mm

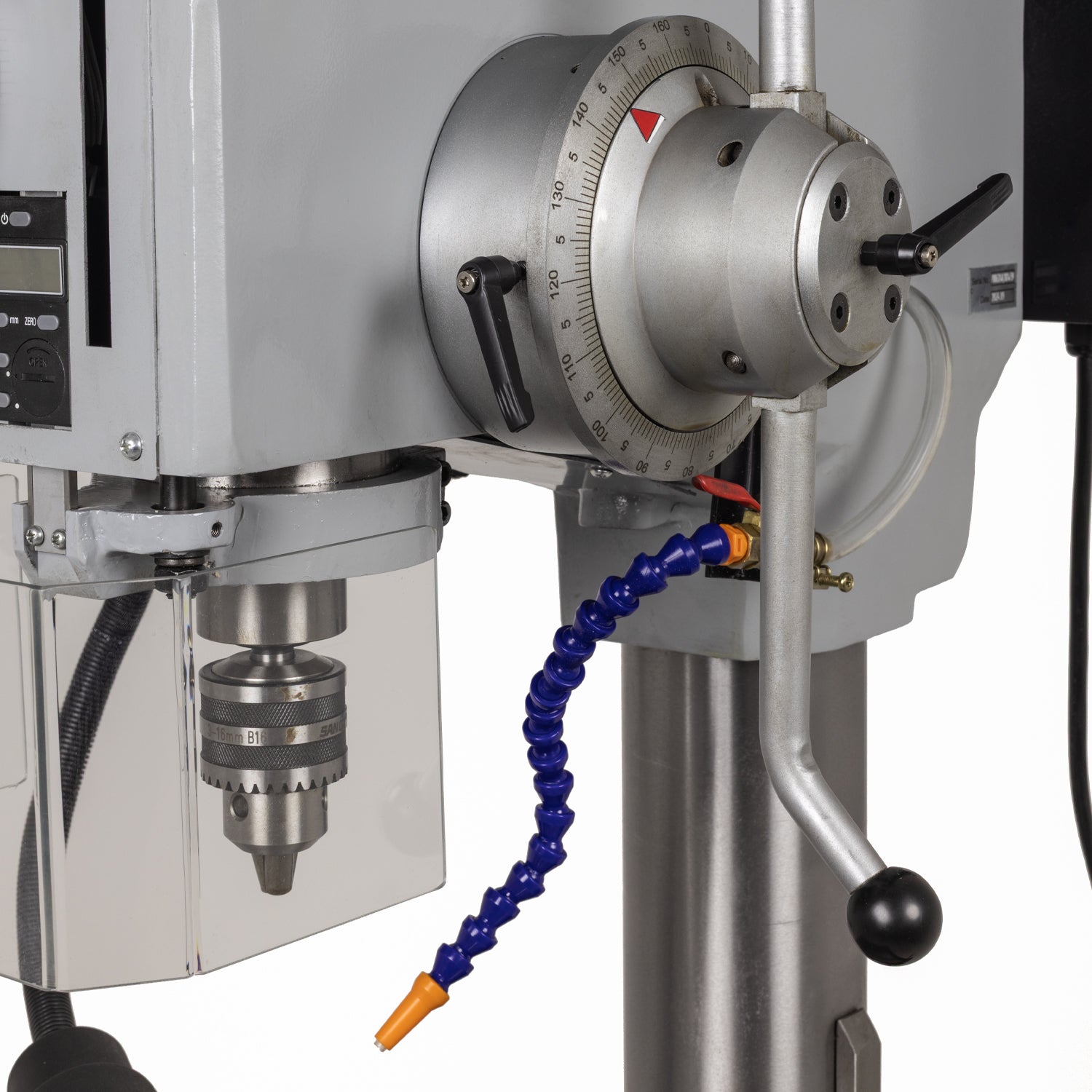

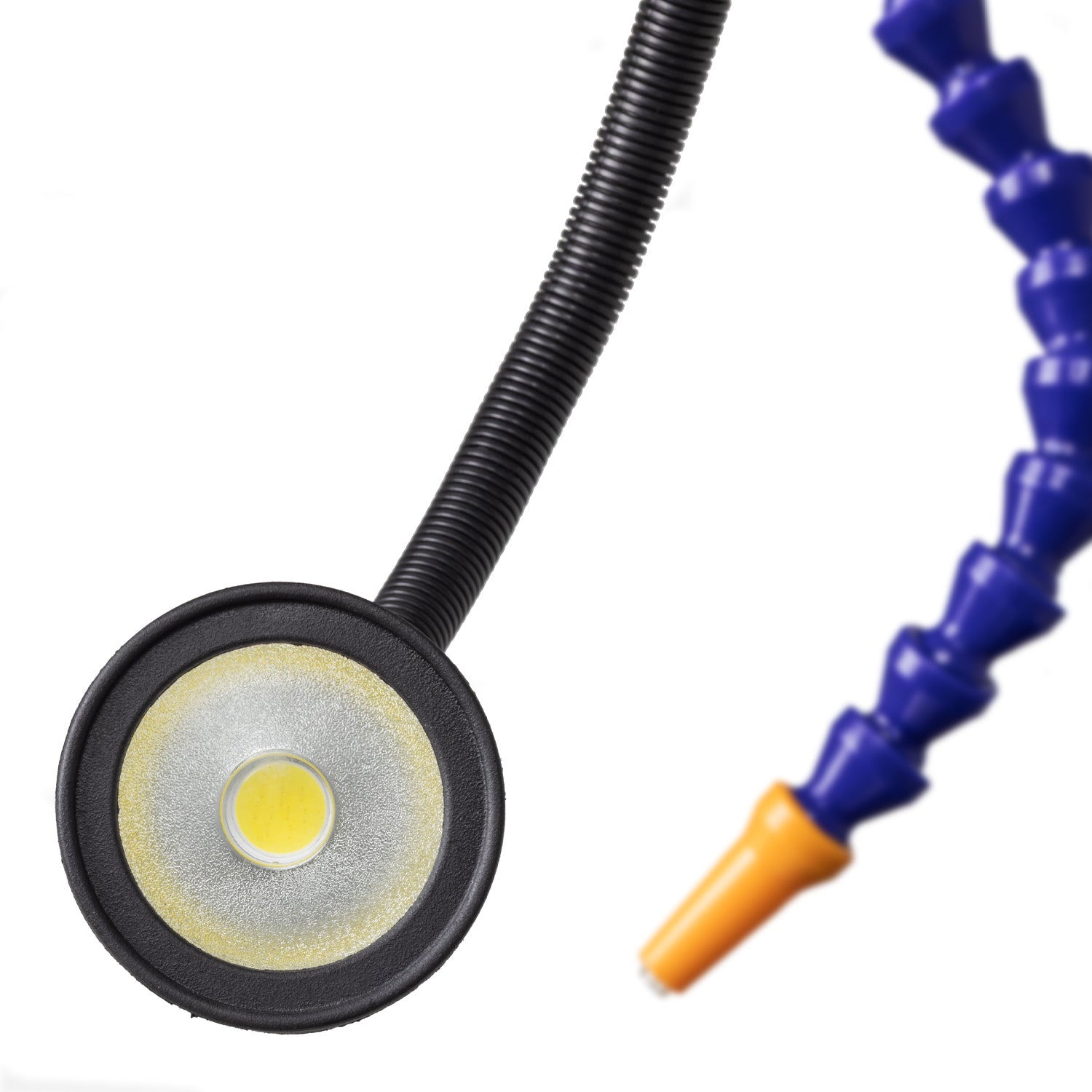

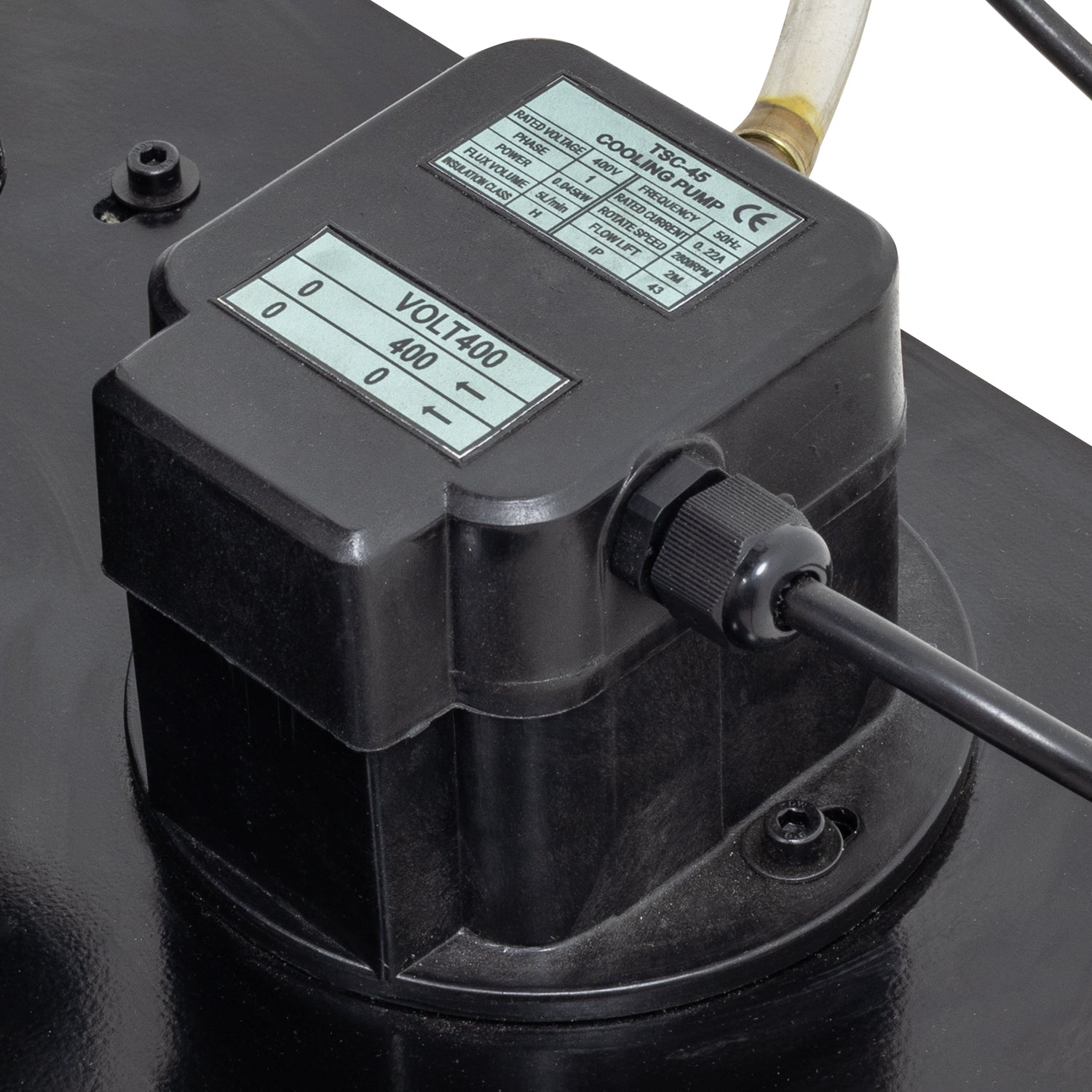

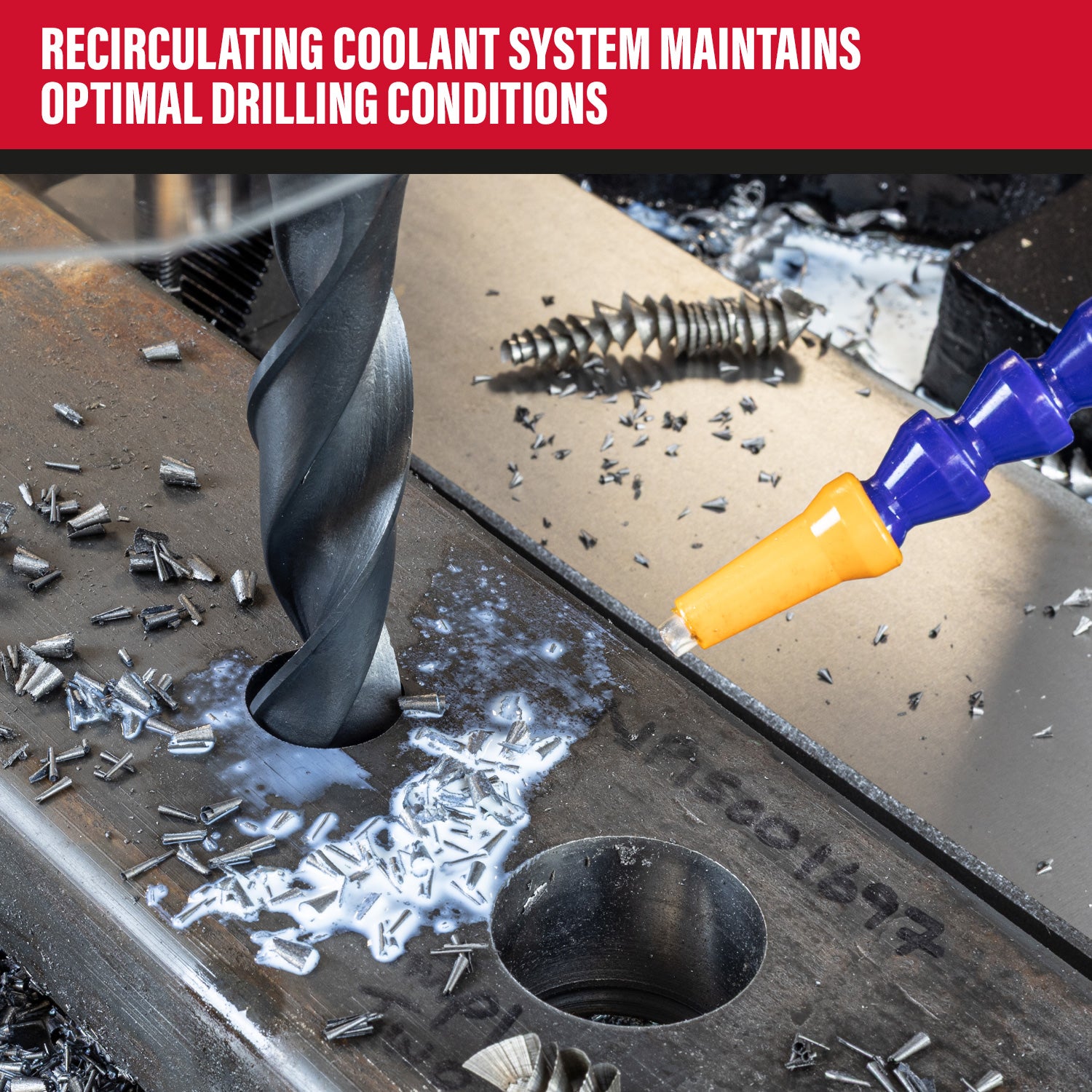

Recirculating coolant system maintains optimal drilling conditions

SIP 01721 Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill

1x SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 4), 1x drill drift, 1x chuck key, 1x, cranking handle, 1x Y-type socket wrench and 2x handles for headstock and table.
